14-51

Machine Calibration

14.3.7.3. Camera Offset Calibration

Measure the offset between the center of the fiducial camera and the first head (Head 1) of

each gantry.

This offset measurement must be completed to be able to use the Auto Nozzle Change

function for calibrations that follow. This process is performed only in the Manual Mode.

A calibration glass must be used to perform this calibration and calibration is required only

for a single fix camera even if there are two fix cameras.

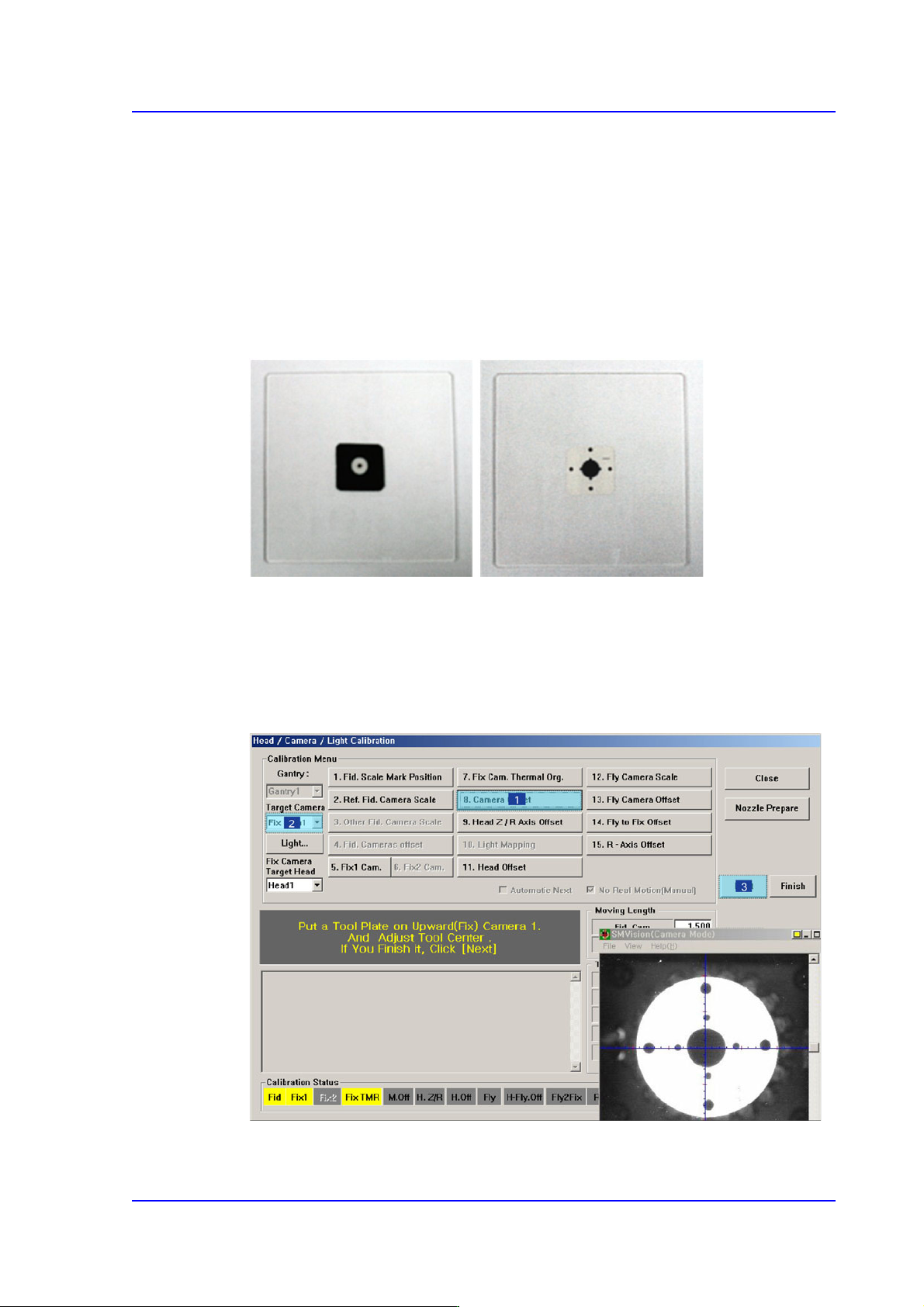

 Calibration using a calibration glass (fix camera option)

The following is the procedure to calibrate the Fid Cam Offset of the head;

1. If the <8. Camera Offset> button is clicked, the message “Put a Tool Plate on

Upward(Fix) Camera 1. And Adjust Tool Center. If you Finish it, Click [Next].”

appears in the message box. Click the <Next> button to move down the Z axis of the

head in order to remove all nozzles inserted in the nozzle-holder manually.

14-52

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

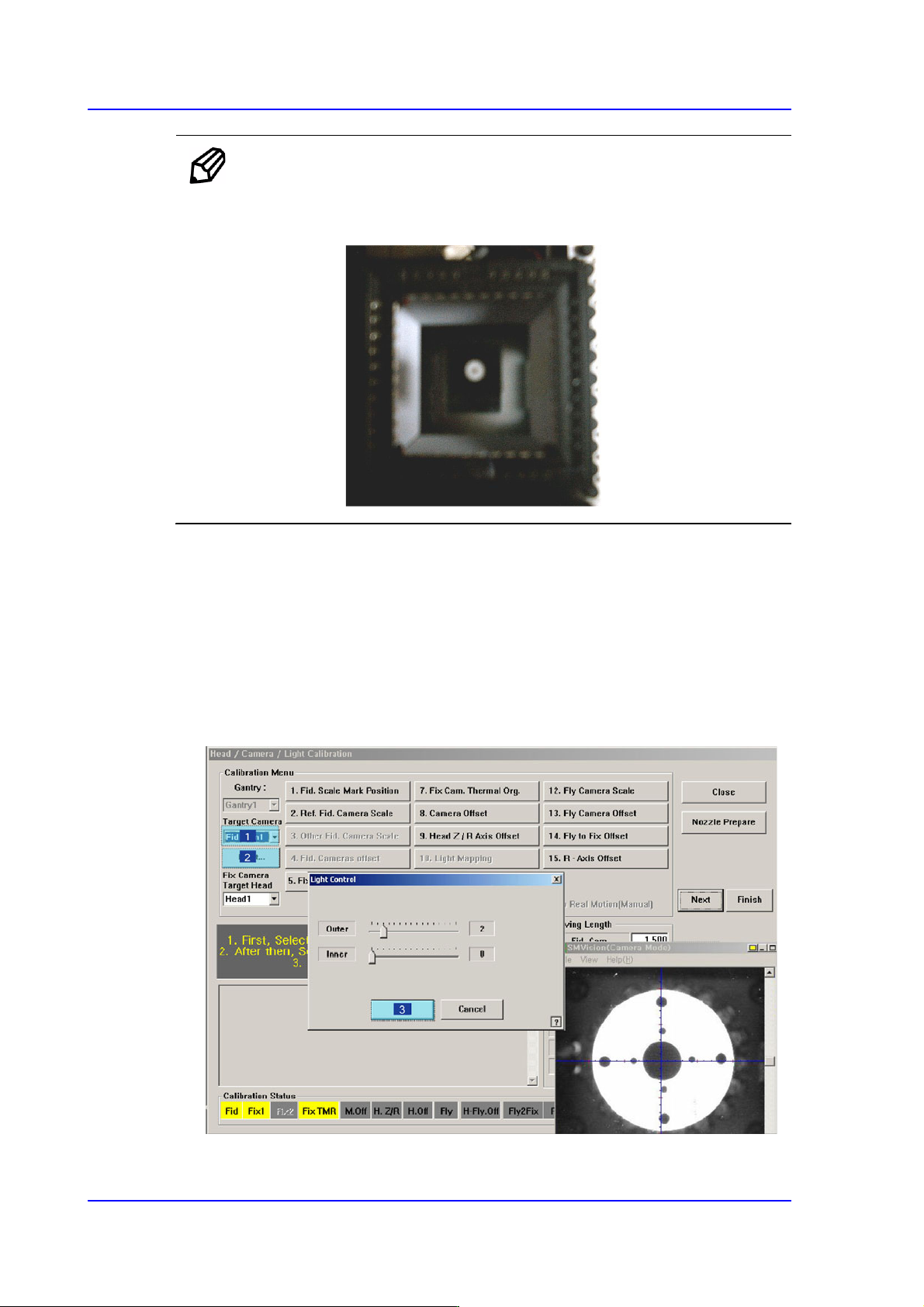

Memo Only when the Calibration Glass is properly aligned with the center of

the Fix Camera can calibration be performed. Place the Calibration

Glass correctly referring to the following figure.

2. The message, “Move To Center Position of [Fix 1] Camera. To Move, Click [Next]” is

displayed in the message window. Click the <Next> button to move the head assembly

to the center of the Fix 1 Camera.

3. The message “1. First, Select Move Camera and Adjust Light Level. 2. After that,

Select Fix-camera and Adjust Light Level. 3. To Calibrate, Click [Next]” appears.

Then click the <Light…> button first and adjust the brightness of the light in the Light

Control’dialog box so that the white circle at the center of the Calibration Glass that is

seen in the ‘SMVision’ window can be seen clearly.

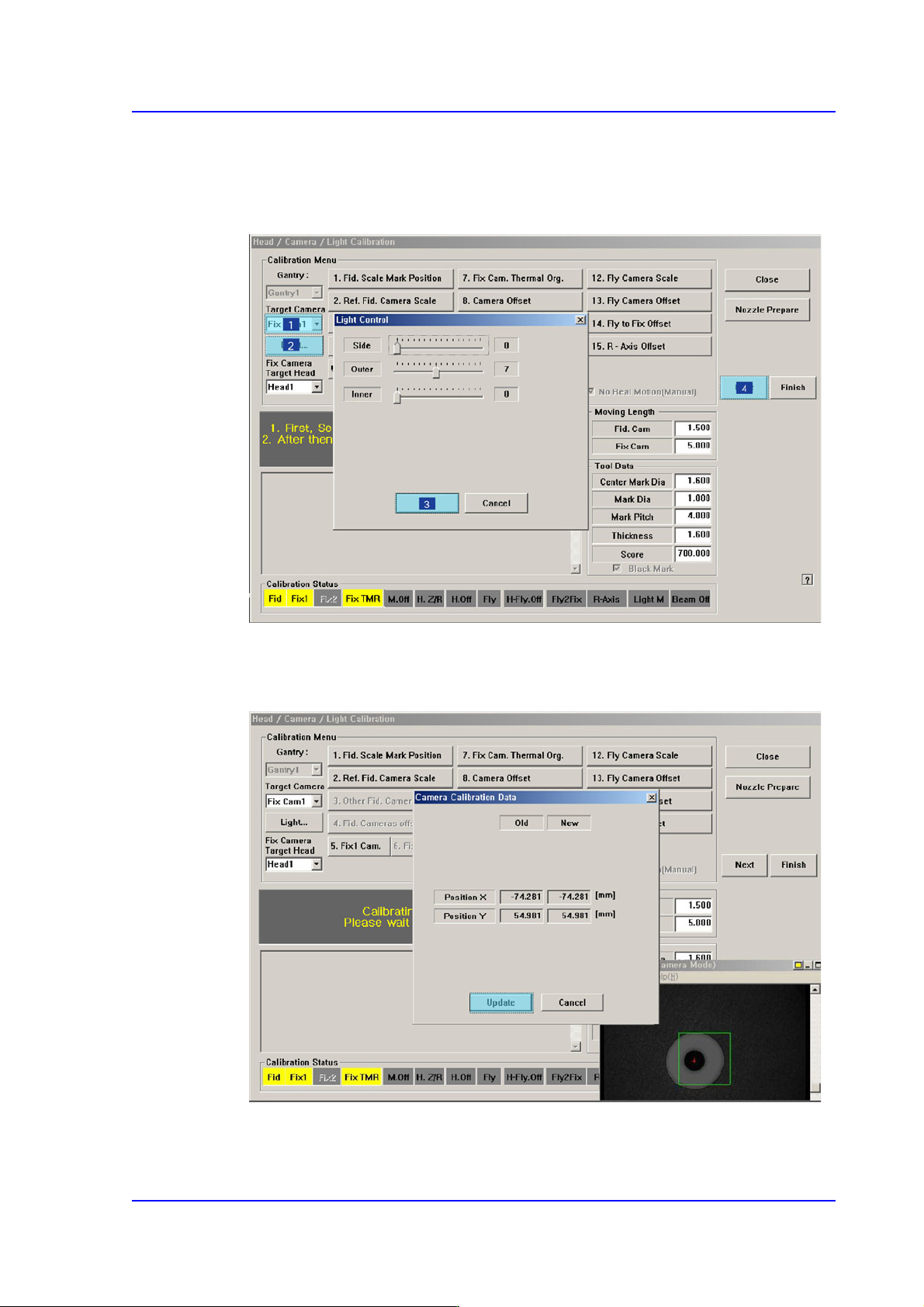

14-53

Machine Calibration

4. Then select the ‘Fix1 Cam’ in the <Target Camera> combo box and click the

<Light…> button. Adjust the brightness of the light in the ‘Light Control’ dialog box

so that the fiducial mark on the Calibration Glass that is seen in the ‘SMVision’

window can be seen clearly. Click the <Next> button..

5. The calibration is performed automatically. If it is completed, the calibration result is

indicated as shown in the following figure. Click the <Update> button to apply the

calibration value.
