14-45
Machine Calibration
2. Then, after the head assembly moves to the designated position, move all Z axes
down. At this time, remove all inserted nozzles manually
3. “Then the message “Next Attach the Calibration Tool to Head 1. Click [Next] for
Moving Down Head. After Moving, Attach the Tool to head Manually” appears. Click
the <Next> button after inserting the CNT20 nozzle at nozzle holder of Head #1
manually.
14-46
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
4. The message “Move To Center Position of Calibration Tool. To Move, Click
[Next].”appears. appears in the message window. Click the <Next> button to move the
head assembly to the calibration tool position on the ANC.
Caution Cautions to be taken when inserting the nozzle.
Insert the nozzle by referring to the following figure.
Direction Setup Pin of CNT20 nozzle
Direction Setup Groove of Nozzle
Holder
The CNT20 nozzle must be inserted
in the nozzle-holder so that the
direction-setup pin of the CNT20
nozzle is suitable for the direction-
setup groove of nozzle-holder.
Otherwise, an error may occur.
14-47
Machine Calibration

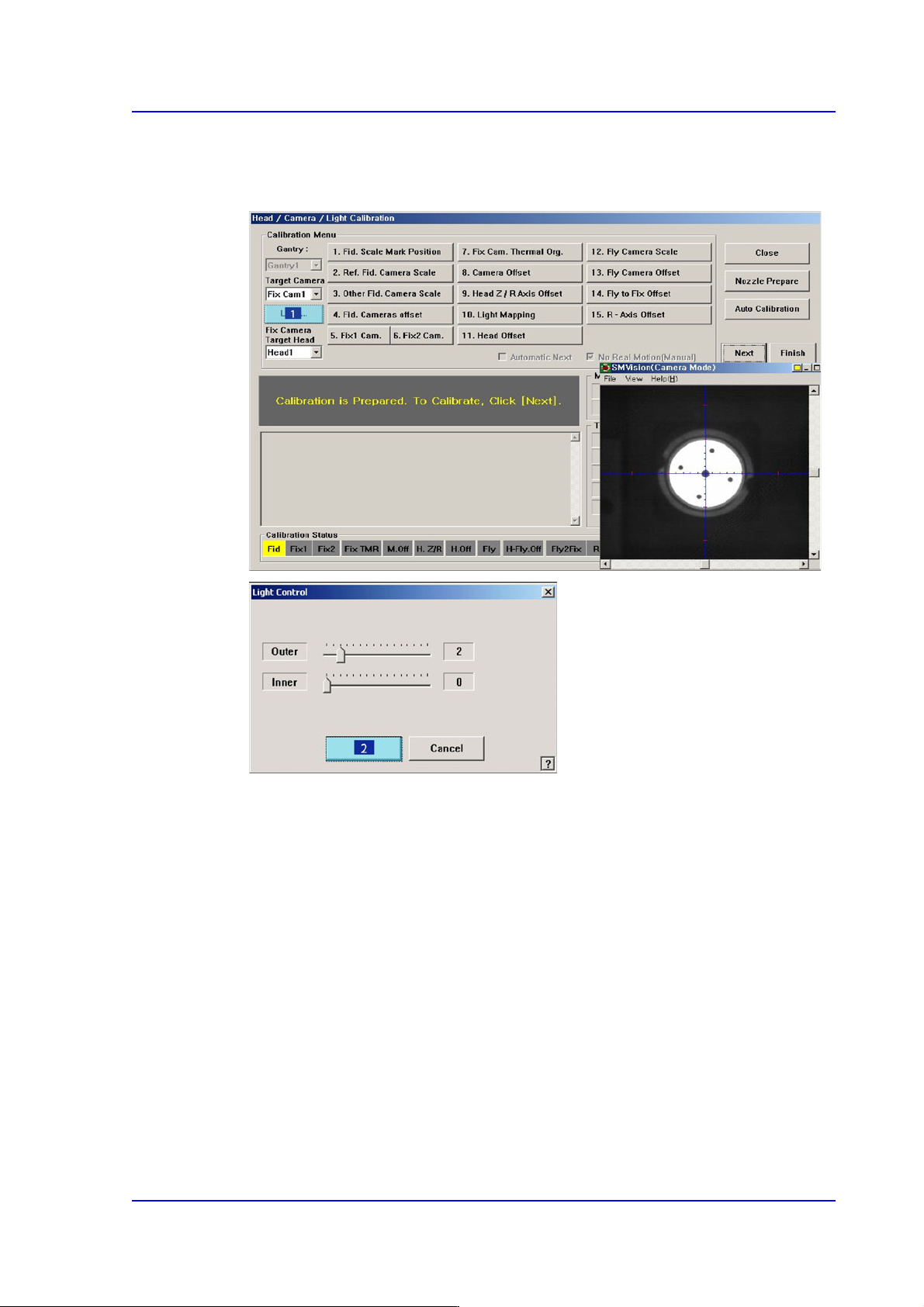

5. The message “Move To Center Position of [Fix1] Camera. To Move, Click [Next]”
appears in the message window. Click the <Next> button to move the head assembly
to the center of the fix-camera.
