8-10
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
Figure8.6 “Feeder :2 point teaching in the Feeder Base” dialog box
<1. Teaching Points> group
Set the position of two corner points to find the center point.
Teach 1st point: Set the first point.
Teach 2nd point: Set the second point.
Center point: Finds the center point from the two corner points and displays it.
<2. Teach> group
Used for moving the selected object to the assigned position of coordinates by
rotating XY axis driving motor, or for obtaining the present coordinates of the
selected object.
<Device> combo box
Used for selecting the object to move to the designated coordinates by rotating
the XY axis driving motor or to select the object for which the present
coordinates is searching. Selectable objects are as follows;
Fid Cam: Selects the fiducial camera of the head.
Head 1 ~ Head 6: Selects the Head #1~Head #6
<Move> button
Move the object selected in the <Device> combo box to the position of the
assigned coordinates. At this time, the desired position corresponding to the
teaching position (coordinates of teaching point) must be clicked with the
mouse before clicking on the <Move> button.
<Get> button
Obtain coordinates for XY axis with reference to the object selected in the
<Device> combo box. At this time, the desired position corresponding to the
teaching position (coordinates of teaching point) must be clicked with the
mouse before clicking on the <Get> button.
8-11
Feeder Setup
<Pusher U/D> button
Moves up or down the air pressure cylinder in the slot on the current line in the grid.
When the driving cylinder of the feeder is on, the driving lever of the feeder is lifted,
and the shutter at the top of the feeder opens. Pick-up position teaching is executed in
this state.
<Slot Pitch> button
If this Button is selected, the coordinate of each feeder slot is indicated as relative
coordinate, with the pickup point of the No. 1 slot as origin point.
Then if the selection is released, the offset coordinate is indicated based on the pickup
point that was set up through actual teaching at the coordinate of the pickup point set
up for each slot.
<Remove All Tapes> button
Removes all the tape feeders installed in the current feeder base unit.
<Change Slot> button
Moves the tape feeder already installed to other slot. Changed contents are also
reflected on the Step.
<Feeder Info.> edit box
Displays the information of the currently selected feeder.
<From> edit box
Displays the current feeder base and slot.
<To> combo box
Displays the feeder base and slot to which the tape feeder is moved.
<OK> button
Saves the edited contents and closes the dialog box.
<Cancel> button
Closes the dialog box without saving the edited contents.
8-12
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

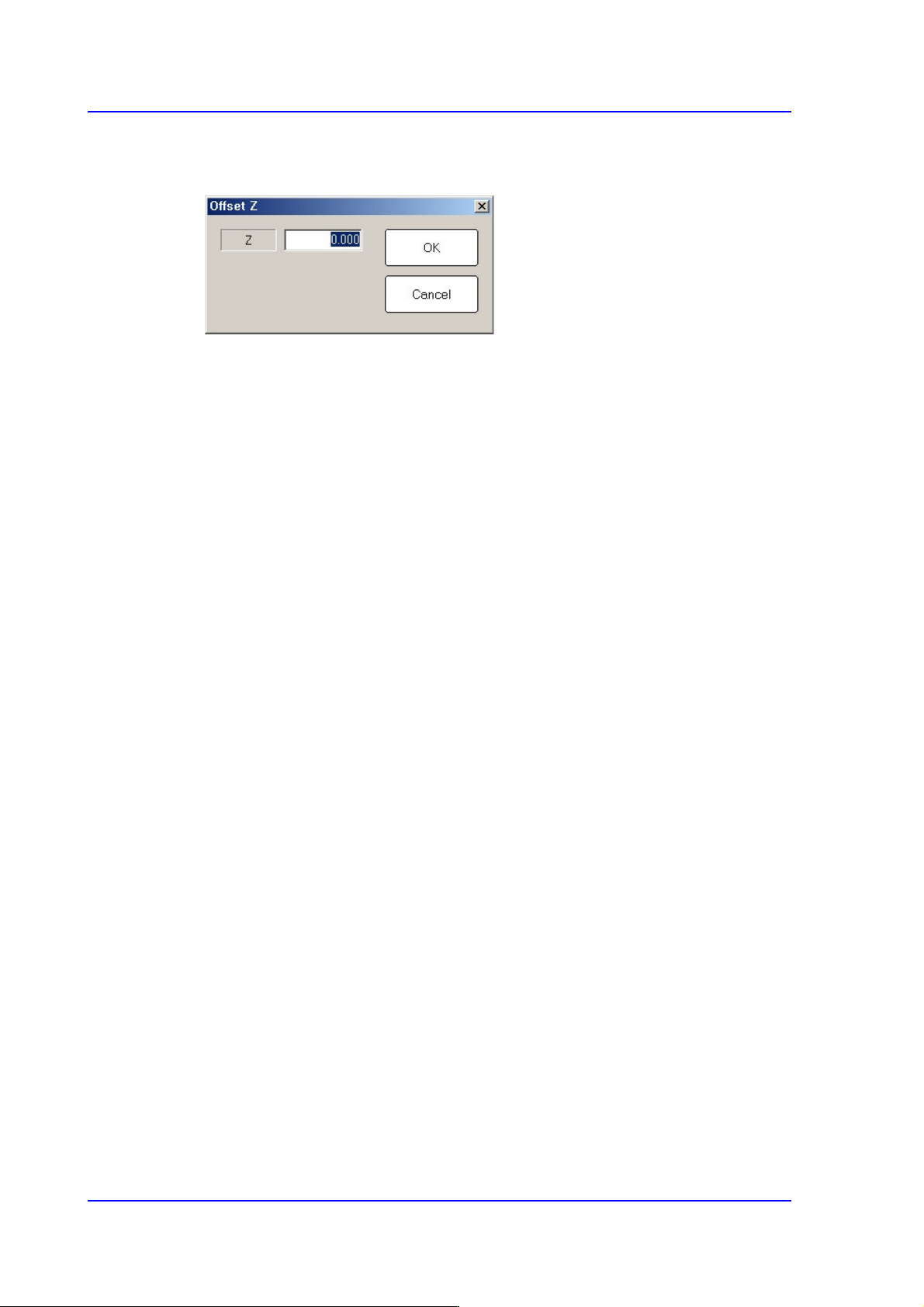

<Offset…> button
Applies the offset to the Pickup Z value of the feeder collectively.
<Z> edit box
Enters the offset value.
<OK> button
Saves the edited contents and closes the dialog box.
<Cancel> button
Closes the dialog box without saving the edited contents.
<Z Teach> button
Measures the Z axis height for the pickup point of feeder automatically using
pneumatic pressure. Select the part (pickup point of the feeder) of the feeder to be
taught and select the head to perform teaching from the <Device> combo box in the
<Teach> group. Then insert the CN040 nozzle into the nozzle holder of the selected
head and click this Button.
<Installed Feeder Only> check box
Shows only the list of the feeders installed in the grid cell group for feeders.
