7-16
SM PLUS Administrator’s Guide
<Part Type Setup> group
It is possible to select the part category and group in order to obtain the recommended
lighting value for the part to be registered.

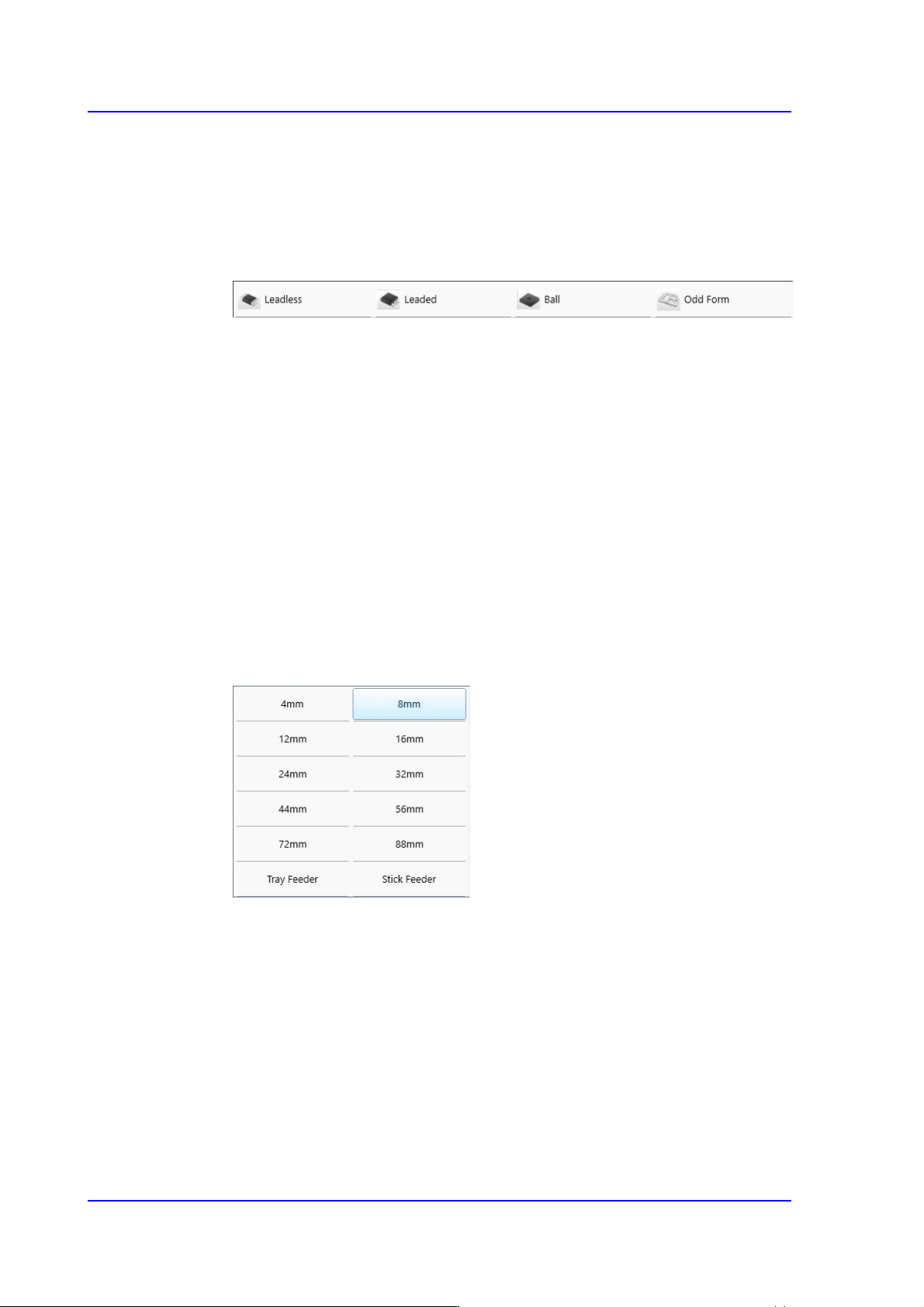

<Component Shape> combo box
Select the shape of the part to be registered.
<Component Type> combo box
Select the Type of the part to be registered.
<Component Scale> combo box
Select the size of the part to be registered. Enabled when the Capacitor and
Resister parts are selected.
<Part group> Caption Box
Displays the group to which the part to be registered belongs.
‘Feeder/Nozzle Setup’ area
Set the type of feeder to supply parts as well as the nozzle to pick parts.
<Feeder> combo box
Selects the type of the feeder to supply parts. Selectable feeder types are as
follows:
<Feeder Pitch> combo box
Used when the electrically driven feeder is selected. Selects the pitch of the tape
feeder selected from the <Feeder> combo box.
<Nozzle List> List Box
Displays the nozzle that picks up a part. For further details, refer to “Chapter7.
Nozzle type and application of part” in the Operation Handbook.
Selecting the nozzle in the nozzle list, the shape of contact between the nozzle and
part is indicated in orange in the vision window.
It will be helpful to refer to this shape in selecting an adequate nozzle.
7-17
Part Registration
<Nozzle Selection> button
If there is no adequate nozzle in the nozzle list, click this button to select an
adequate nozzle.
<Nozzle Name> View Field
Displays the nozzle name.
<Body X/ Y (mm)> View Field
Displays the X and Y sizes of the part layout.
<Offset X/ Y (mm)> edit box
Input the X and Y offsets from the nozzle center.
<Pickup Angle> edit box
Set the part pickup angle.
<Nozzle Library> group
<Filter> combo box
-ALL
Selected in cases displays all types of nozzles in the following list
box.
-CN
Selected in cases displays only the CN nozzles in the following list
box.
- Special
Selected in cases displays only the Special nozzles in the following
list box.
7-18
SM PLUS Administrator’s Guide
-Etc
Selected when displaying only the nozzles other than CN, Special
nozzles in the following list box.
<Recommended> List Box
Displays the nozzles recommended for the corresponding part.
<All> List Box
Displays the nozzles conforming to the conditions selected from the
<Filter> combo box.
<Selected Nozzle> List Box
Displays the registered nozzles so that they can be used for part pickup.
The nozzle information set here is used to perform optimization later.
The priority in applying nozzles is determined according to the order in
which nozzles are set.
button
Adds the nozzles in the left <Recommended> list box or <All> list box to
the <Selected Nozzle> list box.
Register the selected nozzles as a nozzle to be used for part pickup.
button
Adds the nozzles selected from the right <Selected Nozzle> list box to the
left <Recommended> list box or <All> list box.
Performs setup so that the selected nozzles will not be used for part
pickup.
‘Setup of Other Options’ area
Set the part polarity, tape reel type, pickup angle of the part supplied from a feeder.
<Polarity Type> combo box
Selects the polarity type. The types that can be selected are as follows:
Selected in case of a Lead/Ball part.
Line: Selected in case of a chip part. (TR part is excluded)
