Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
3. After inserting the Fix Camera Test nozzle into the ANC 11 hole, press the <OK>
button.

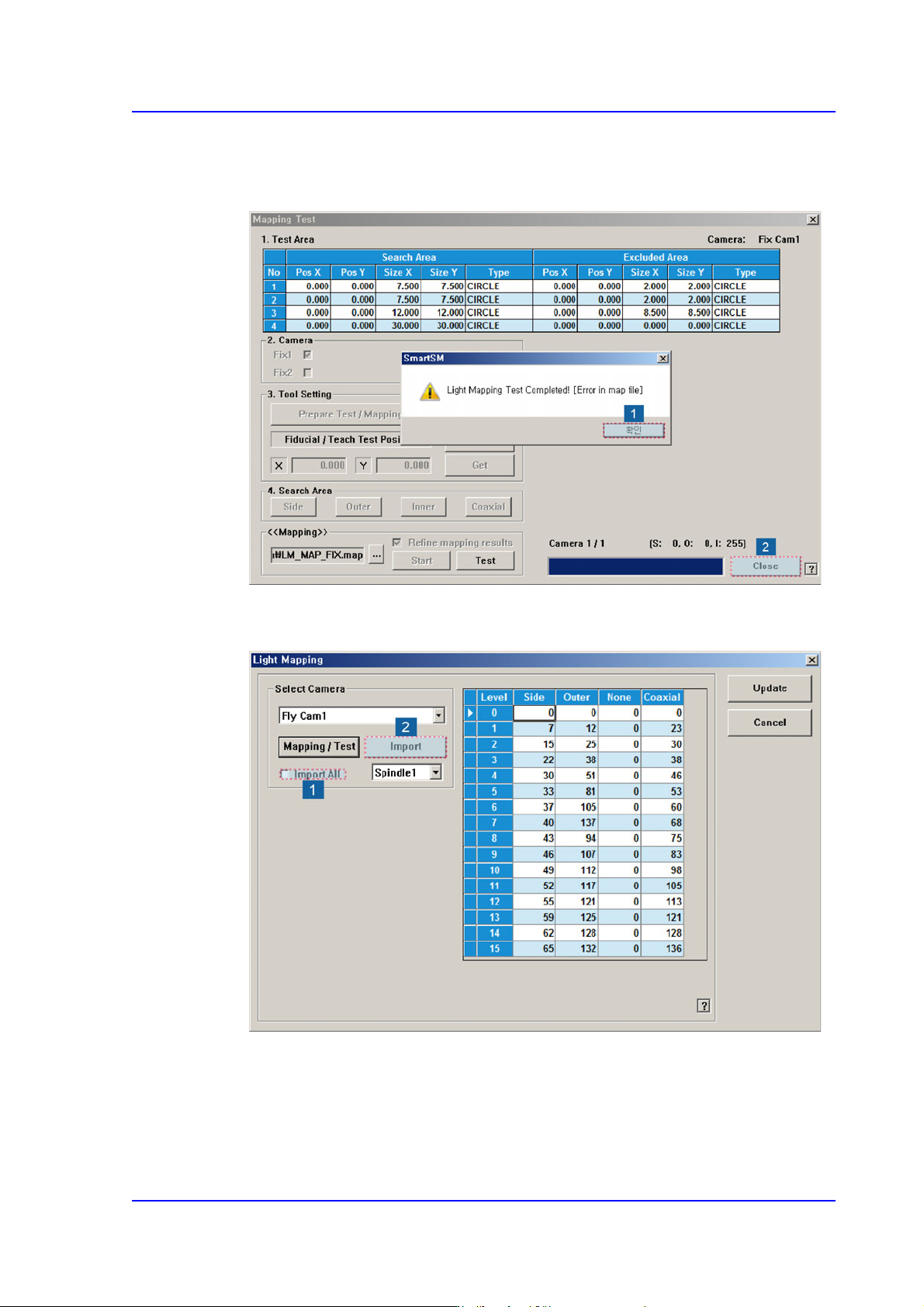

4. After clicking the <Start> button in the <<<Mapping>>> group, when the Light
Mapping is finished, the following dialog box appears. Pressing the <OK> button will
display the dialog box for the test.
5. Click the <(Y)> button to perform the test automatically.
15-25
System Setup
6. If the dialog box saying that the light mapping test has been completed is displayed,
click the <OK> button. Then click the <Close> button to close the mapping test dialog
box.
7. Check the <Import All> check box in the <Select Camera> group and click the
<Import> button.
