Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

work station.

 <board/hour>

Indicates number of PCBs produced in an hour after the initial PCB is fer to

the work station.

 <Production Plan> edit box

Set the total number of PCBs to be worked on. If the value becomes 0, the

production is stopped.

 <Reset> button

Initializes the number of produced PCBs to “0”.

 <Placement Status> group

Displays the data related to PCB board. Shows the status of the PCB feeding to the

conveyor graphically and indicates the progress of the work on the PCB in percentage.

 <Total Steps> Static box

Displays the total number of steps.

 <Total Cycles> Static box

Displays the total number of cycles.

 <Total Array> Static box

Displays the total number of Array PCBs.

 <Operation Option> group

This function can be selected and executed during placement.

 <PCB Stop> check box

Selecting this check box during operation will pause the equipment after finishing

the placement for the PCB in the current placement area. Then they are displayed

as shown in the following screen.

At this time, the equipment is in “RUN_RDY” state. The shutdown of the

equipment in “RUN_RDY” state is not included in the shutdown count of the

equipment.

13-5

Production Setup

If the equipment is paused by clicking the <PCB Stop> button, when starting the

work, click the <PCB Restart> button first and then press the 'START' button.

 <Inhibit Board Entry> check box

Check this box to stop PCBs from entering the transport rail automatically from an

upstream transport rail or board station. If the equipment is temporarily stopped by

this function, the equipment state is changed into “RUN_RDY” state.

The shutdown of the equipment in “RUN_RDY” state is not included in the

shutdown count of the equipment.

 <One Time Skip> button

Skip only the new PCBs fed to the equipment temporarily without placing them. Since

separate setup is needed to enable this function, our C/S department must first be

contacted.

When using this function, the following pre-requisitions shall be satisfied:

 Small PCB (substrate) that is set to ‘Work’ among array PCBs that use no bad

mark

 Small PCB (substrate) to which ‘One-Time-Skip’ function is applied in the ‘PCB

Array’ dialog box is already set up

 PCB download completed.

13-6

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

When these pre-requisitions are met, the ‘One-Time-Skip’ function is applied after

auxiliary menu of ‘Start’ or ‘Cont.’ is selected, and the placement is performed.

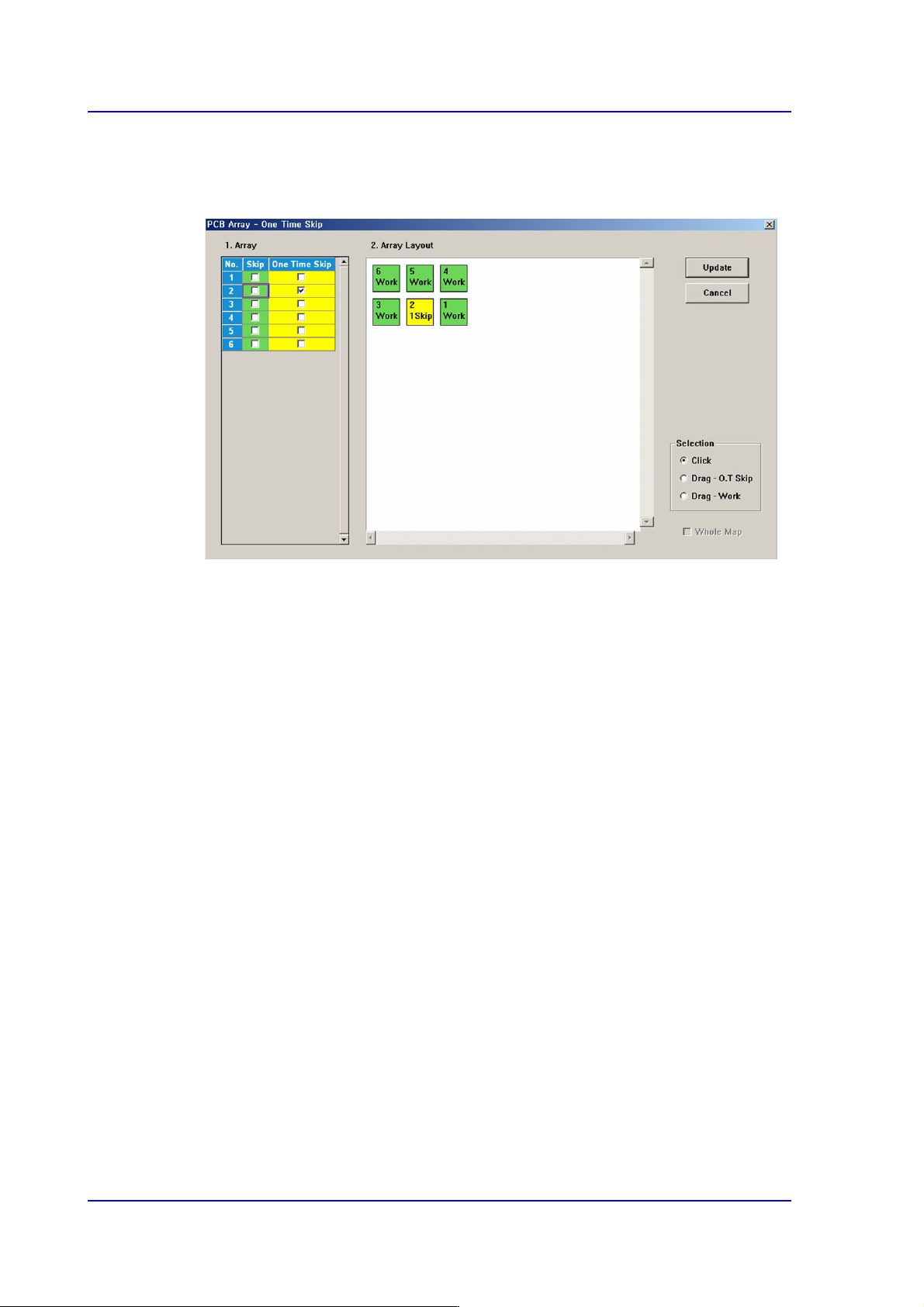

Clicking the button will display the following dialog box.

 <1. Array> group

Sets whether to perform placement on small PCBs in the array PCB.

 <No> column

Refers to each small PCB in the array PCB. It is created as many as the

number of small PCBs.

 <Skip> column

Allows the small PCB selected in this column to be skipped without being

placed during placement and sets the small PCB indicated in the <2.Array

Layout> group to ‘Skip’.

 <One Time Skip> column

Of the small PCBs set to ‘Work’ in the array PCB, it allows only the new PCB

fed to the equipment to be skipped temporarily without being placed.

In order to use the ‘One-Time-Skip’ function, select the corresponding small

PCB and click the <One Time Skip> button in the ‘Product Monitor’ tab

dialog box.

 <2. Array Layout> group

Selects the small PCBs in the array PCB using the mouse. It indicates whether

currently set placement work has been performed or not on the small PCBs.

 <Selection> option box group

[‘Work’ –Work on the PCB; ‘Skip’ –Not to work on the PCB]
