14-13 Machine Calibration <When the nozzle is not mounted on the head>  <Manual T ools> button Clicking this button will execute the “Manua l Control” dialog bo x by performing the same function as selected …

14-12

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

of the pixel for the certain area (test box) that is set using the fly camera.

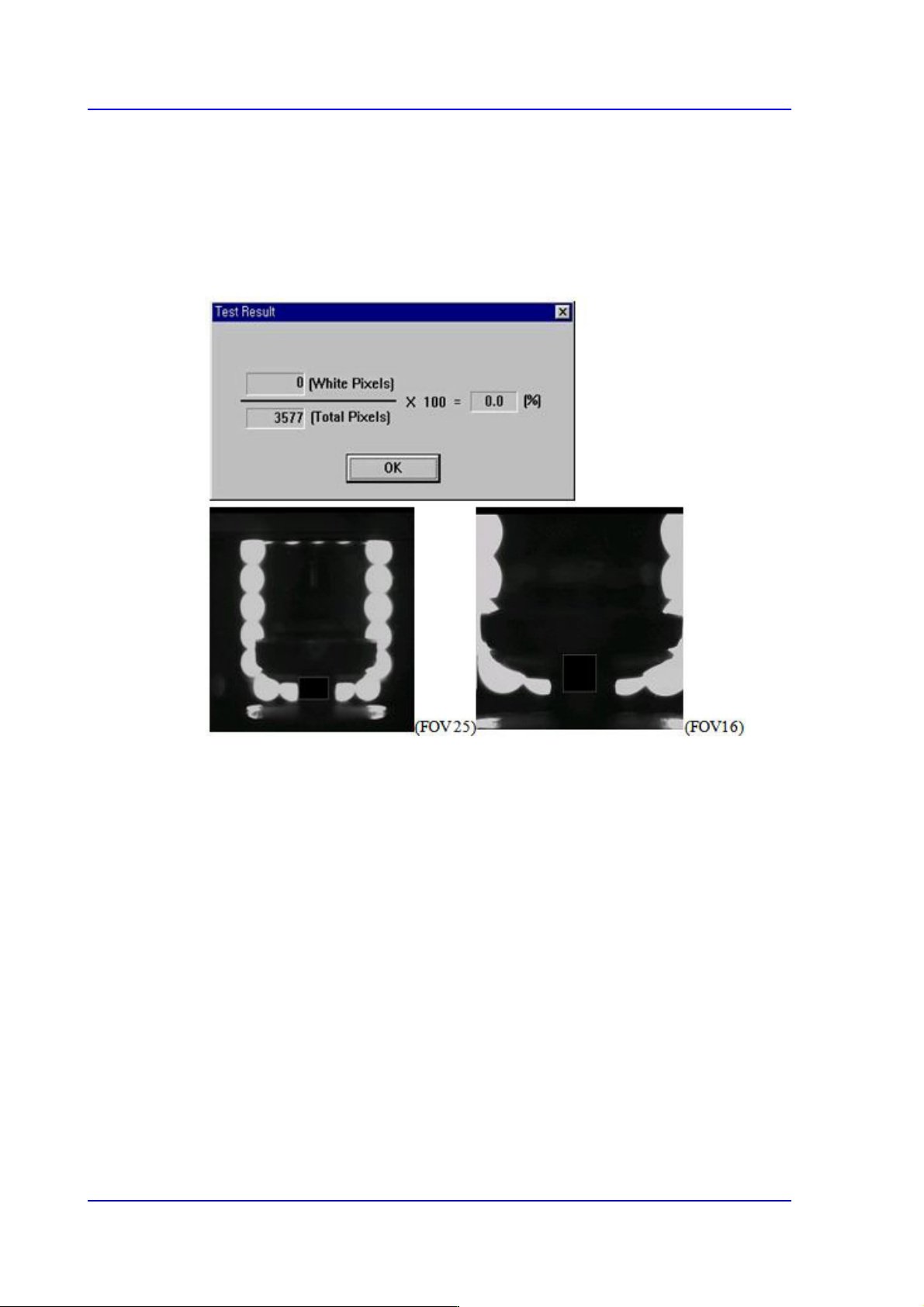

When the binary value of the pixel for the area that is used to check whether the nozzle

is mounted or not is below 30%, the nozzle is considered to be mounted. If the value is

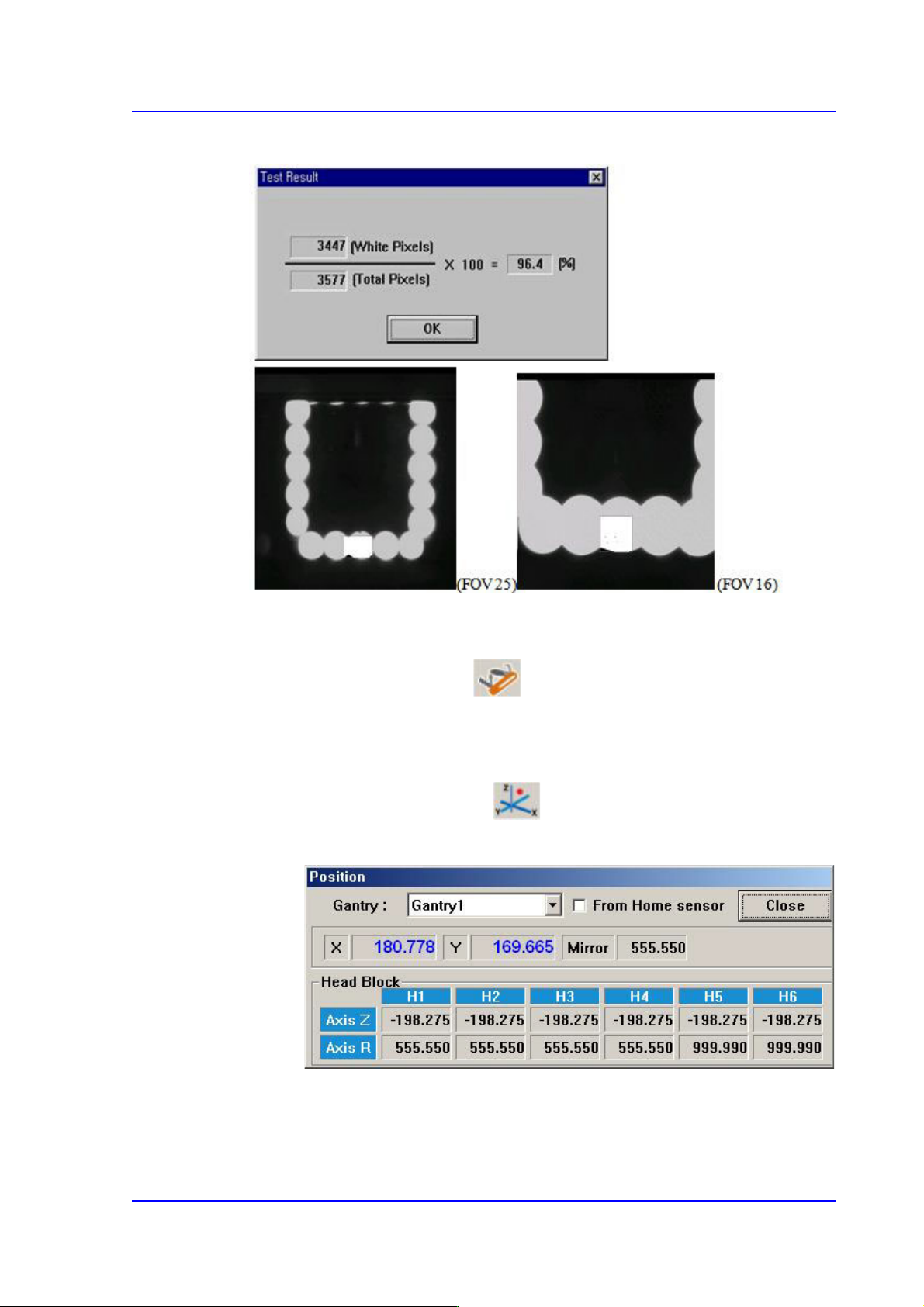

above 30%, the nozzle is not considered to be mounted. If a nozzle actually exists, the

value must be close to ‘0’, if a nozzle does not exist, the values must be close to ‘100’.

14-13

Machine Calibration

 <Manual Tools> button

Clicking this button will execute the “Manual Control” dialog box by performing the

same function as selected by the in the View menu.

 Head Mirror Teaching

The default value is 18. Can be different according to the system.

1) Select the Current Position( ) in the View menu to execute the

“Position” dialog box.

14-14

Multi-Functional Placer SM482(L) PLUS Administrator’s Guide

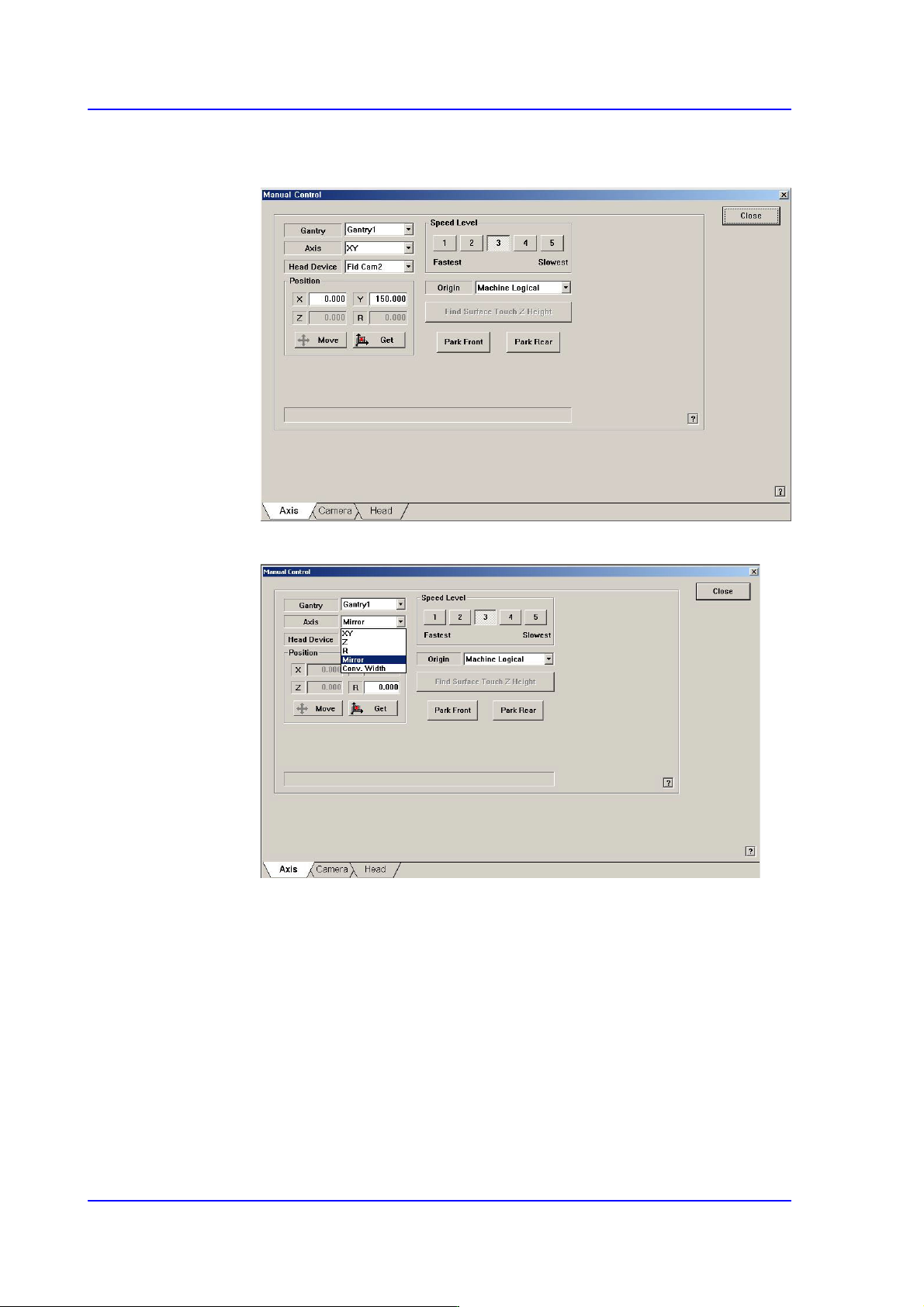

2) Click the <Manual Tools> button in the ‘Nozzle Check’ tab dialog box to

execute the ‘Manual Control’ dialog box.

3) Select Mirror in the <Axis> combo box of the Axis Tab dialog box..
