16-2
Multi-Functional Placer SM482(L)P PLUS Administrator’s Guide
16.1. I/O [F2]
The <I/O> submenu sets or displays the status of various I/O (input/output) sensors on the
equipment.

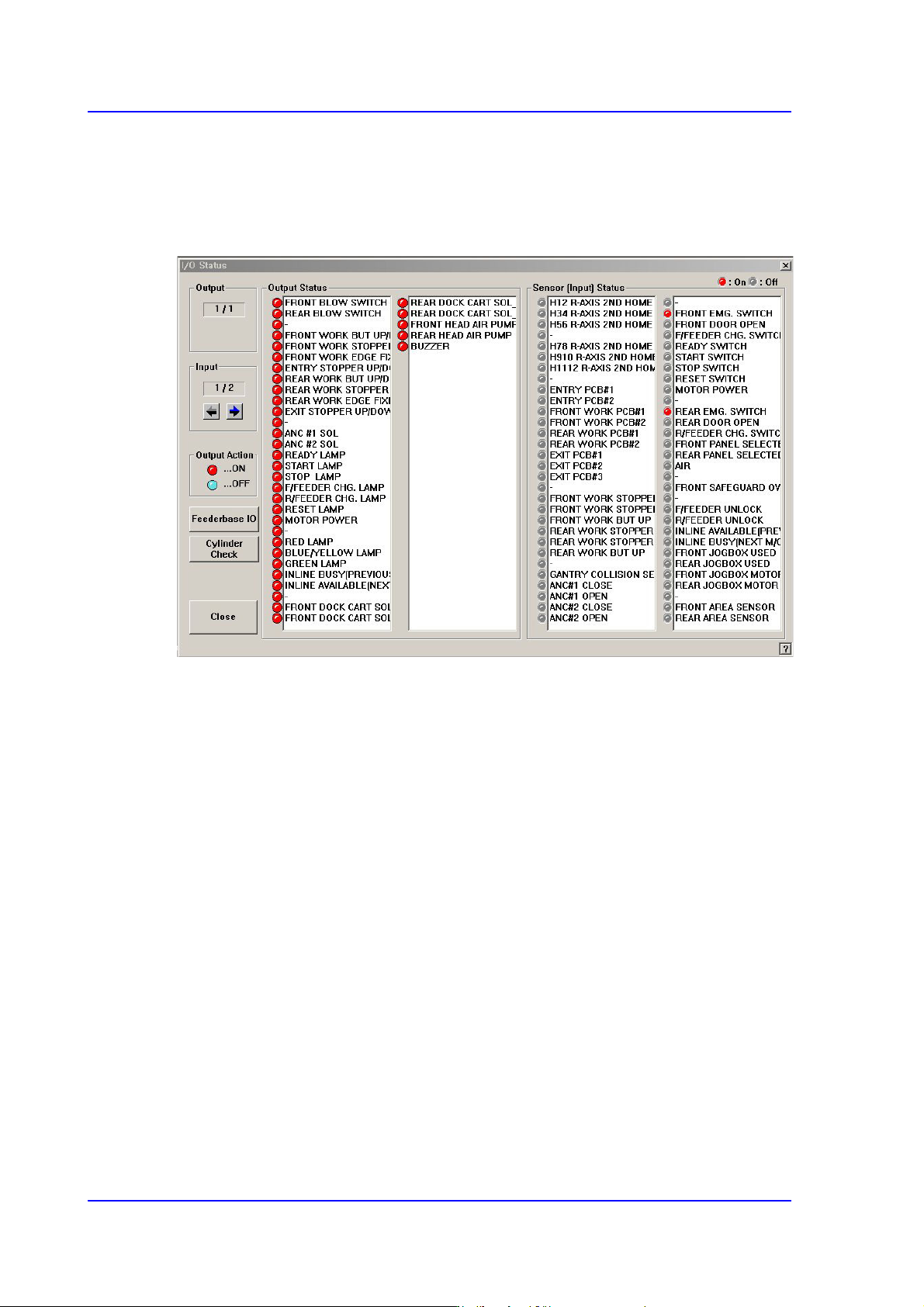

Figure16.3 “I/O Status “dialog box
<Output> group
Indicates the status of output devices.
<Input> group
Indicates the status of input devices.
<Output Status> group
Indicates the status of the selected output devices. Red indicates on status, and blue
indicates off status.
Double clicking the mouse’s left button or pressing the space bar after selecting the
device to be set will allow the output status to be reversed.
<Seneor (Input) Status> group
Indicates the status of the selected input sensor. Red indicates on status, and blue
indicates off status.
16-3
Diagnosis
<Feederbase I/O> button
The user can confirm if the corresponding feeder is installed in the feeder base slot and
check the feeder output status.
Figure16.4 “SM Tape Feeder base” dialog box
<Cylinder Check> button
Check the state of the cylinder movement. When this button is clicked on, the
following dialog box is displayed.
Figure16.5 “Diagnosis: Cylinder Module Diagnosis” dialog box
16-4
Multi-Functional Placer SM482(L)P PLUS Administrator’s Guide
<Operation Test> group
Displays the operation list of devices to check.
Place Stopper #1 Up: Checks the up-movement of the stopper #1.
Place Stopper #1 Down: Checks the down-movement of the stopper #1.
BackUp Table #1 Up: Checks the up-movement of the backup table #1.
BackUp Table #1 Down: Checks the down-movement of the backup table
#1(#2).
ANC Shutter #1(2, 3) Close: Check the closing movement of the shutter of
ANC #1(2, 3).
ANC Shutter #1(2, 3) Open: Check the opening movement of the shutter of
ANC #1(2, 3).
Side illuminator up: Moves the side illuminator up.
Side illuminator down: Moves the side illuminator down.
<Automatic> button
Checks devices in the <Operation Test> group in order automatically.
BUT Speed Test
Test the Up/Down speed of the backup table.
BUT Up Delay: Indicates the upward movement speed of the backup table.
BUT Down Delay: Indicates the downward movement speed of the backup
table.
Up/Down Count: Sets the Up/Down movement test count.
<BUT Run>: Tests the Up/Down speed of the backup table.
<Close> button
Closes the dialog box.
