6-13 Board Definition 6.2. Array PCB Setup For an array PCB, setup the of fset value betw een the origin of the small PCB in the array PCB and place origin of the array PCB. When this <Array…> butto n is clicked on…
6-12
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
<Cancel> button
Cancels the edited data.
Caution If you move to another screen while editing the “Board”
dialog box, the edited data is saved automatically.
Warning During teaching, the operator or people near the operator
could be injured due to operation error or insufficient
checking of surroundings
Before start teaching, check the device to teach one more
time, and check whether there is any worker near the
machine
6-13
Board Definition
6.2. Array PCB Setup
For an array PCB, setup the offset value between the origin of the small PCB in the array
PCB and place origin of the array PCB.

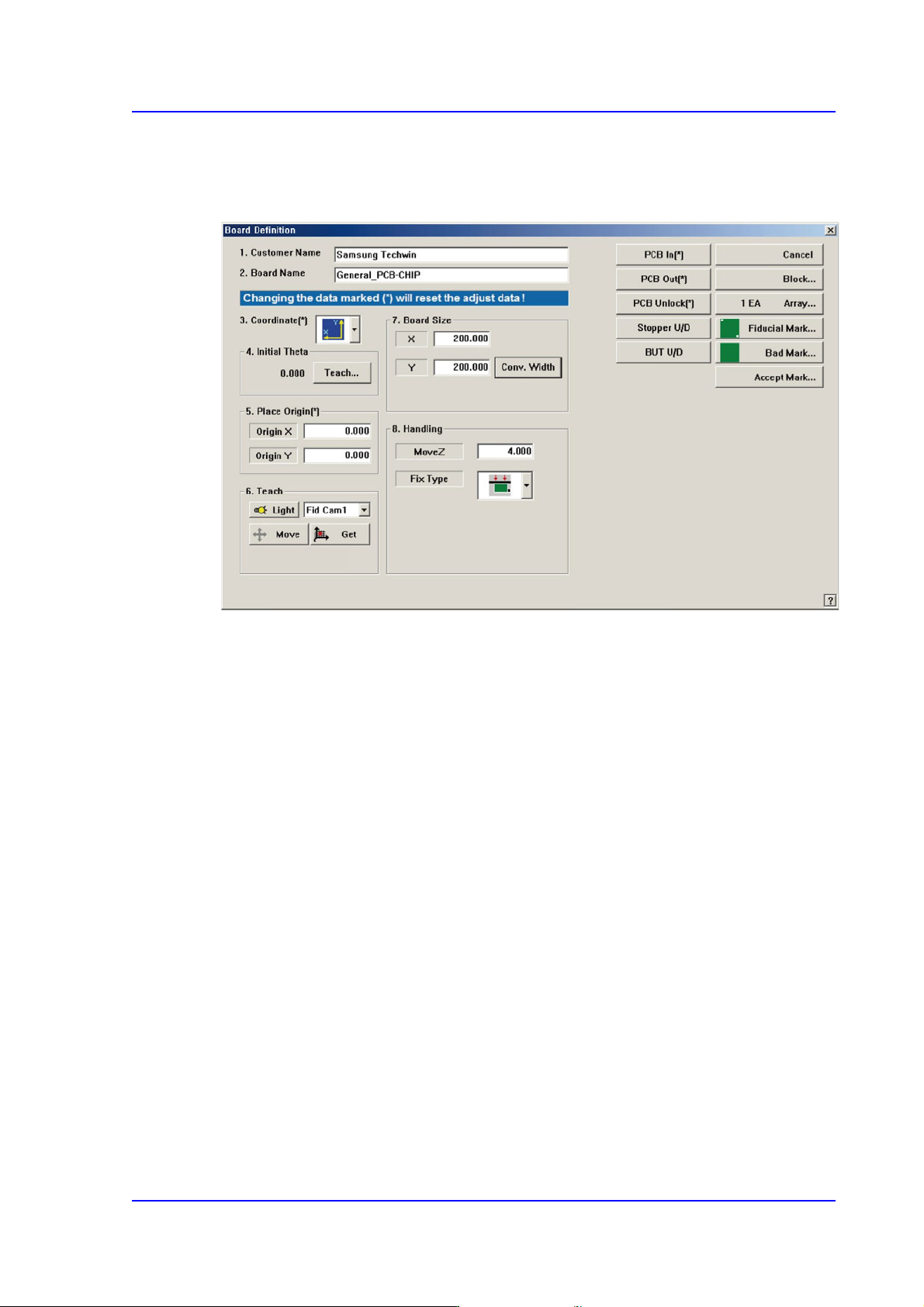

When this <Array…> button is clicked on, the following dialog box is displayed.
6-14
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
Figure6.3 “PCB Array” dialog box
1: Grid Cell
<Block Select> combo box
For a Multi PCB
The model selected from the “Board Definition” dialog box is selected
automatically and the corresponding Combo Box is disabled.
For a Block PCB
Select the model for which setup will be performed and set other items.
<1. Array> group
Set the offset value of Array PCB from the “Place Origin” of the PCB. Lines
corresponding to the number of small PCBs in the array PCB setup in <4. Set Array
(Regular Type)> are made.
