Diagnosis & Utility &
Production
Management
16-1
Diagnosis
Chapter16. Diagnosis
The Diagnosis menu is composed of 6submenus: I/O, Conveyor, Light, Vacuum, Jog box,
Tray, Head, Motor IO. This menu performs a module test on each part.
When a submenu of the <Diagnosis> menu is selected, the corresponding dialog box is
displayed on the screen. While the corresponding dialog box of the submenu is displayed,
selecting the menu again activates the dialog box.

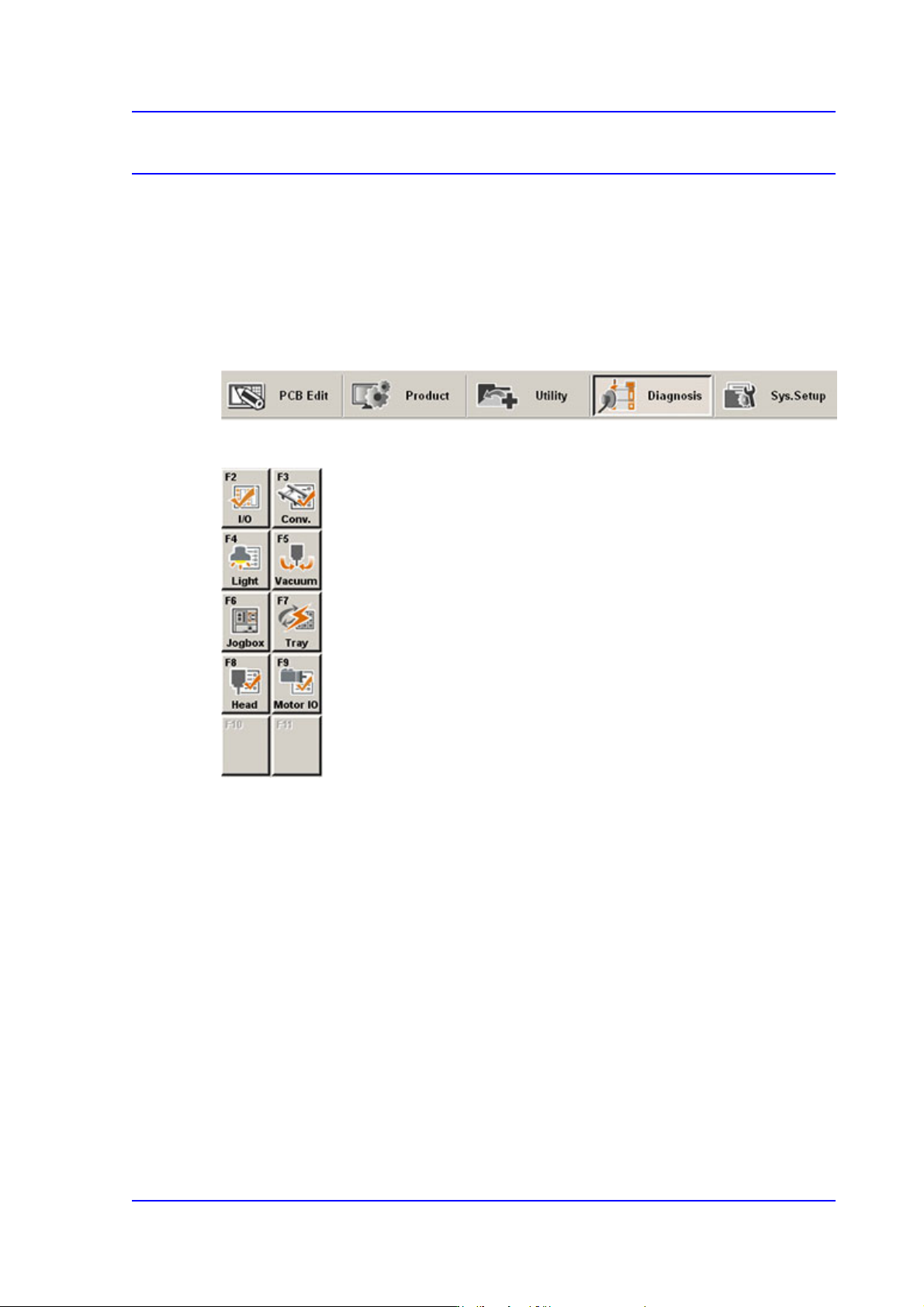

Figure16.1 When the Diagnosis menu is selected
Figure16.2 Submenus of the Diagnosis menu
