14-37
Machine Calibration

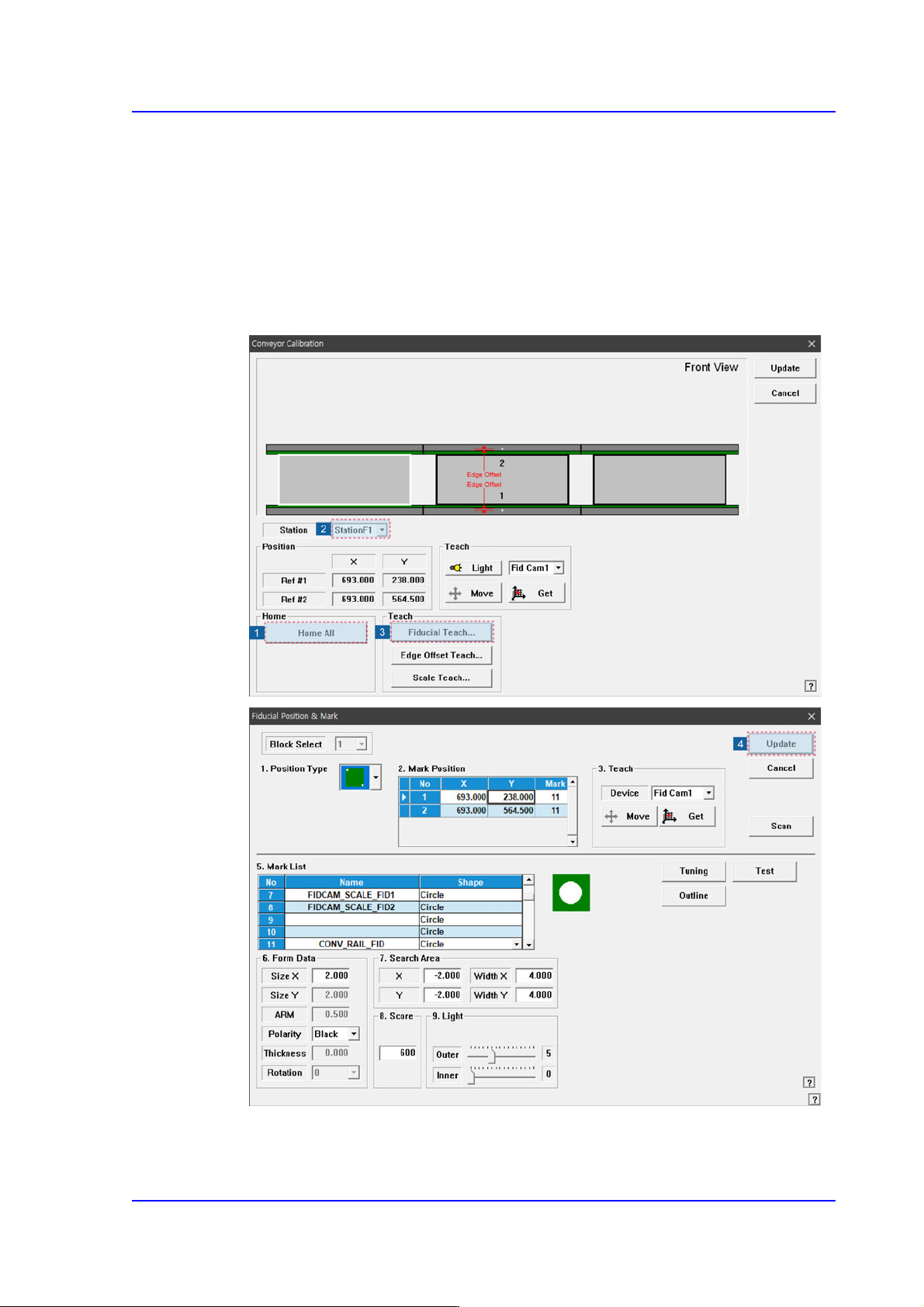

Conveyor Calibration method is as follows.
1. “Click the <Home All> button in the “Conveyor Calibration” dialog box.
2. Select <StationF2> in the <Station> combo box to enable <Fiducial Teach...> and
<Edge Offset Teach...>.
3. Click the <Fiducial Teach…> button to teach the fiducial marks of the selected station
accurately and click the <Tuning> button to scan the position accurately.
4. Click the <Update> button to update the information on the fiducial mark position.
14-38
Multi-Functional Placer SM482(L) PLUS Administrator’s Guide
5. Click the <Edge Offset Teach…> button
6. Select the <Edge Offset> edit box corresponding to the “Ref. #1” and click the <Move
Cam> button.
14-39
Machine Calibration
7. Then the downward camera (fiducial camera) moves to the corresponding position of
the fiducial mark. Select XY by pressing the ‘AXIS’ button using the teach box to
make the backup table rise and make the edge of the transport rail frame correspond
with the horizontal line of the cross lines in the vision.
8. Click the <Get> button once aligned.
9. Select the corresponding <Edge Offset> edit box in ‘Ref. #2’ and click the <Move
Cam> button.
10. Perform teaching on ‘Ref. #2’ in the same way.
11. After finishing the teaching, click the <Update> button to apply the changed value.
