6-53

Board Definition

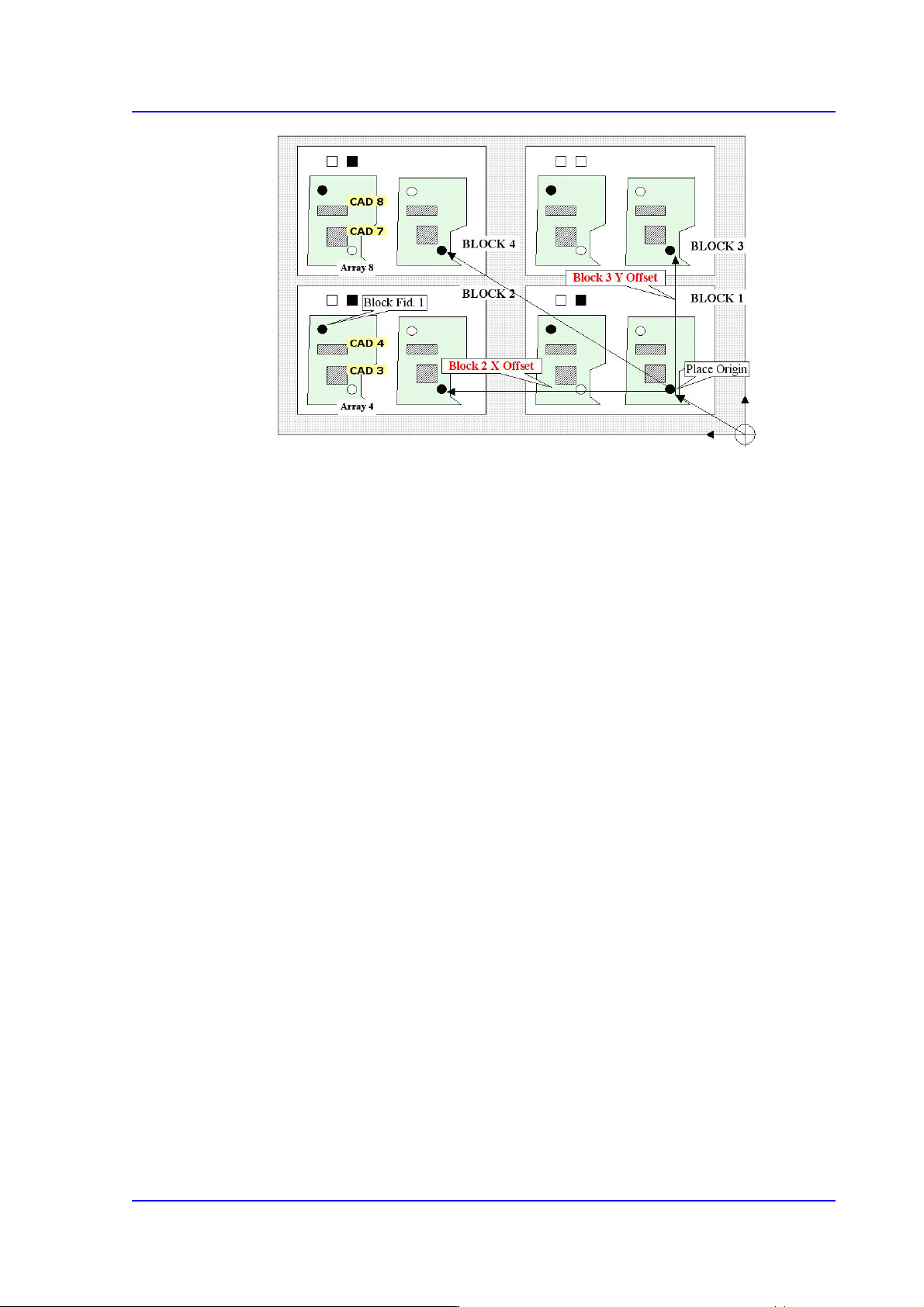

 <4. Block Position> group

When Block PCB type is selected in the <Model Type> combo box;

The offset coordinate of the placement origin of each block is indicated. Select <Skip>

column when placement is not performed for the corresponding block.

 The procedure to teach the placement origin offset of each block

Select the fiducial camera corresponding to the workstation to which the block

PCB is transferred.

Select the placement origin offset of the block in the <3. Model Position> group.

Click the <Move> button to move to the currently set position.

Click the <Get> button to input the current coordinate.

 <Update> button

Saves the PCB model related setup data and closes the “PCB Model” dialog box.

 <Cancel> button

Closes the “PCB Model” dialog box without saving the PCB model related setup data.

7-1

Part Registration

Chapter7. Part Registration

The <Part> command is used to register components necessary for PCB operation and edit

data.

Part data is composed of “Align Data” and “Common Data”.

 Align Data

Consists of information related to part recognition

 Common Data

Consists of parameters related to part feeding device, nozzle for part pickup and

placement, pneumatic condition and driving speed

The component data managed by MMI include PCB Part, Local Part, and Standard Part

DB.

 PCB Part: Parts registered in the PCB file

 Local Part DB [UPD.mdb]: Parts registered after installing MMI in the equipment

 Standard Part DB [STDUPD.mdb]: Simultaneous installation with MMI is DB

managing the data for standard parts (Read only)

Each PCB controls component data on all components operated on the corresponding PCB

and saves the component data in the Local Part DB of the machine.

To create component data for a new PCB, component data stored in the Local Part DB can

be copied. To create component data for a new component whose data is not stored in the

Local Part DB, data for a similar component stored in the Local Part DB can be copied and

edited or standard component data can be copied from the Standard Part DB and edited.

The Standard Part DB is a DB of generally used components developed and supplied by

this machine manufacturer. The relationship between component data is shown in the

following.

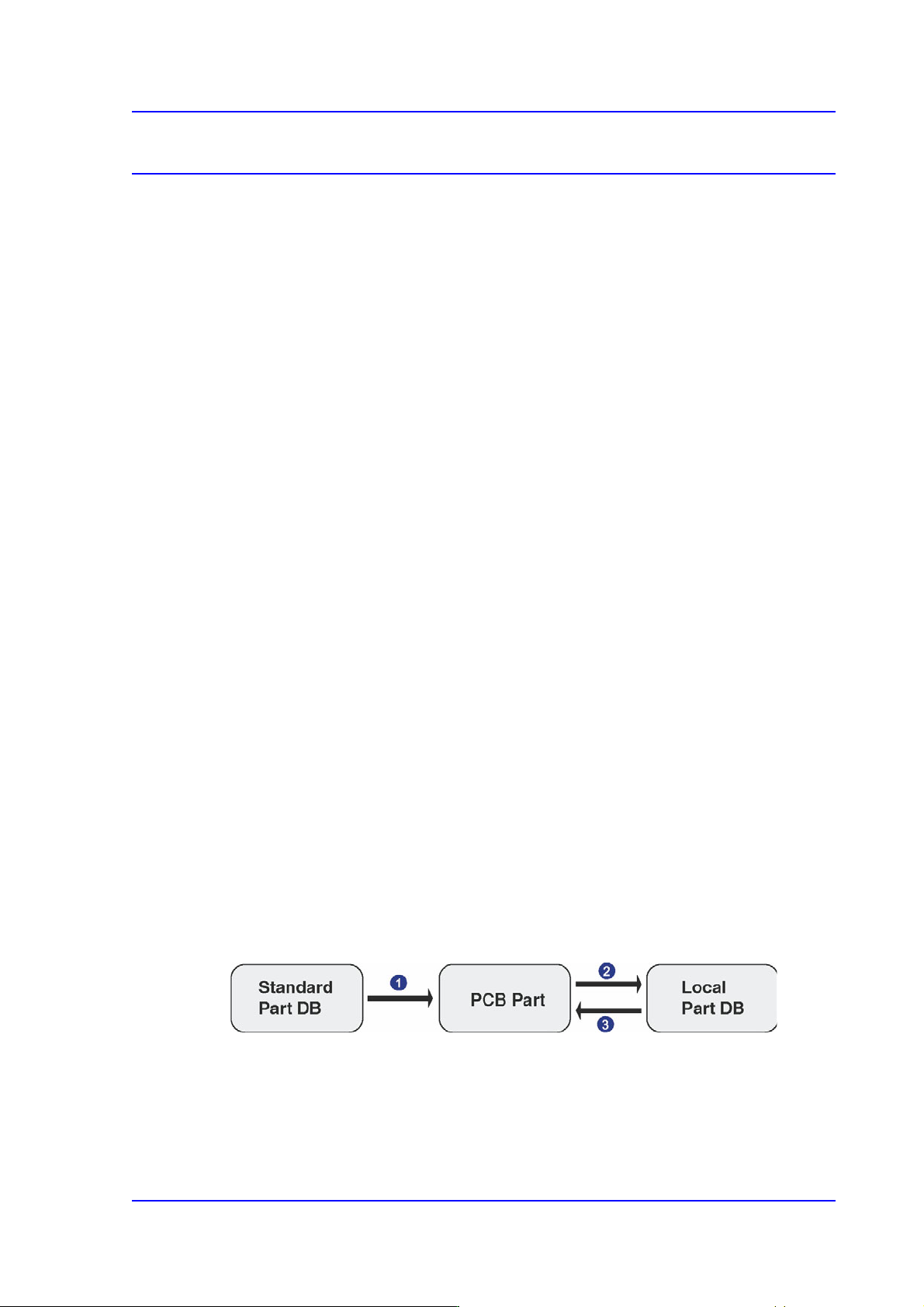

Figure7.1 Relationship between component DBs

Applied to all PCBs Controlled by each PCB Controlled by

each machine

1) Create new part

2) Save

3) Copy
