7-23

Part Registration

Memo If the <Align & ROI> switch button is selected, the part editor will

remove all registered shape objects and create a new shape object.

This button is mainly selected to register or edit parts in the ELITE

PRO.

On the other hand, when editing the existing part, select the manual

option to edit the part while maintaining the registered shape object.

 <Manual ROI> switch button

It is possible to draw a rectangle manually using the mouse so that the part is to be

included in the vision window and set the part inspection range.

 <Manual Align> switch button

It is possible to rotate the part image manually using the mouse so that it will be

parallel with the horizontal line displayed in the vision window.

First, using the mouse, draw a horizontal line in parallel with the horizontal line

displayed in the vision window and rotate the part image.

 <Manual Center Point> switch button

It is possible to set the part center manually using the mouse.

7-24

SM PLUS Administrator’s Guide

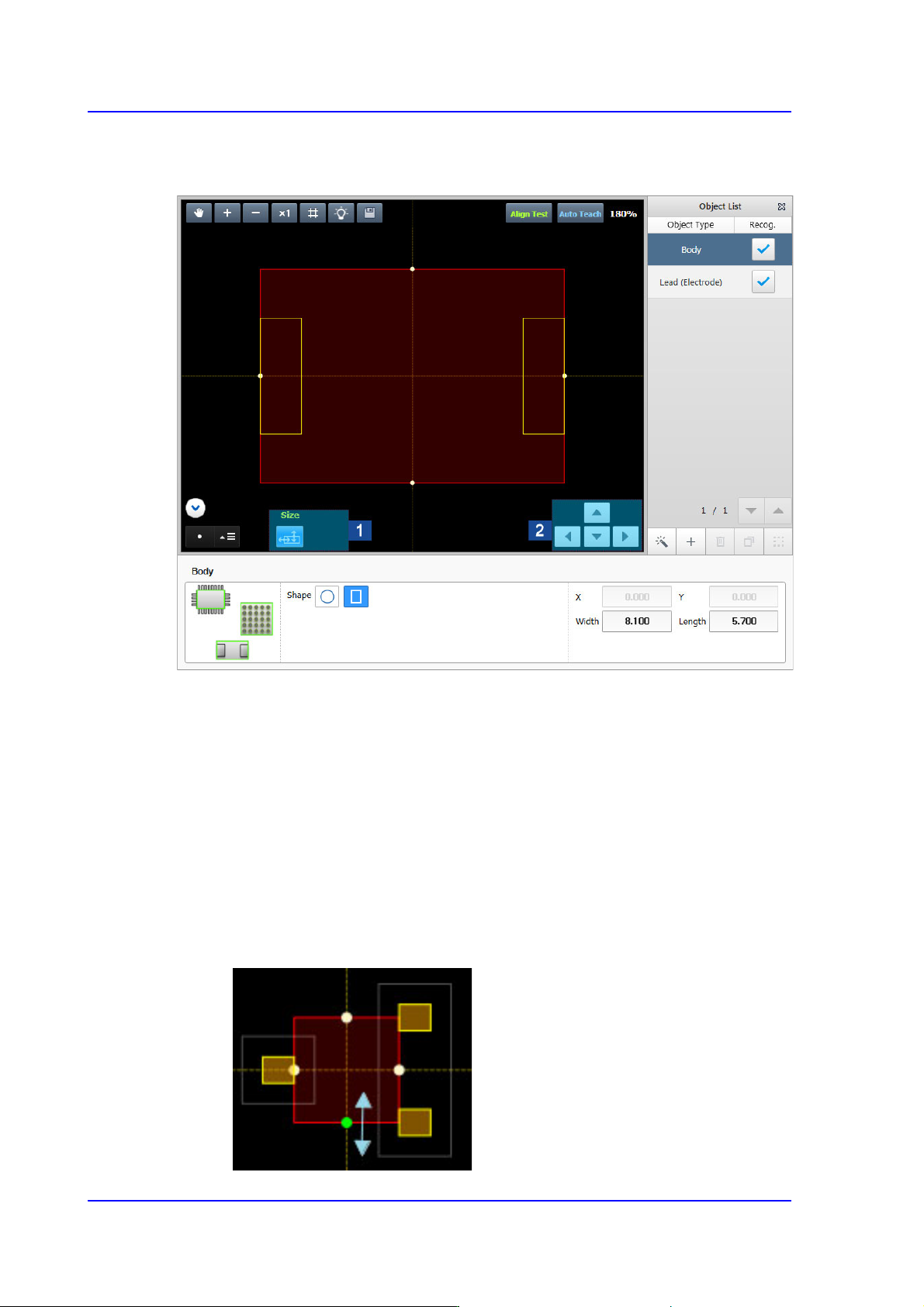

7.2.2.4. EDIT SHAPE

Creates or edits a shape object to have the vision system recognize the part.

1: Object Editing Icon Button

2: Adjust Object Size Button

 <Object List> group

Displays the list of registered shape objects. The vision system can recognize a part

using the shape object registered here.

 Body

As a shape object defining the body of a part, it can be edited but cannot be

deleted. A circle or rectangle can be selected.

It is possible to select an Body object as shown in the following figure and adjust

the width and height of an object while selecting a round dot using the mouse.

7-25

Part Registration

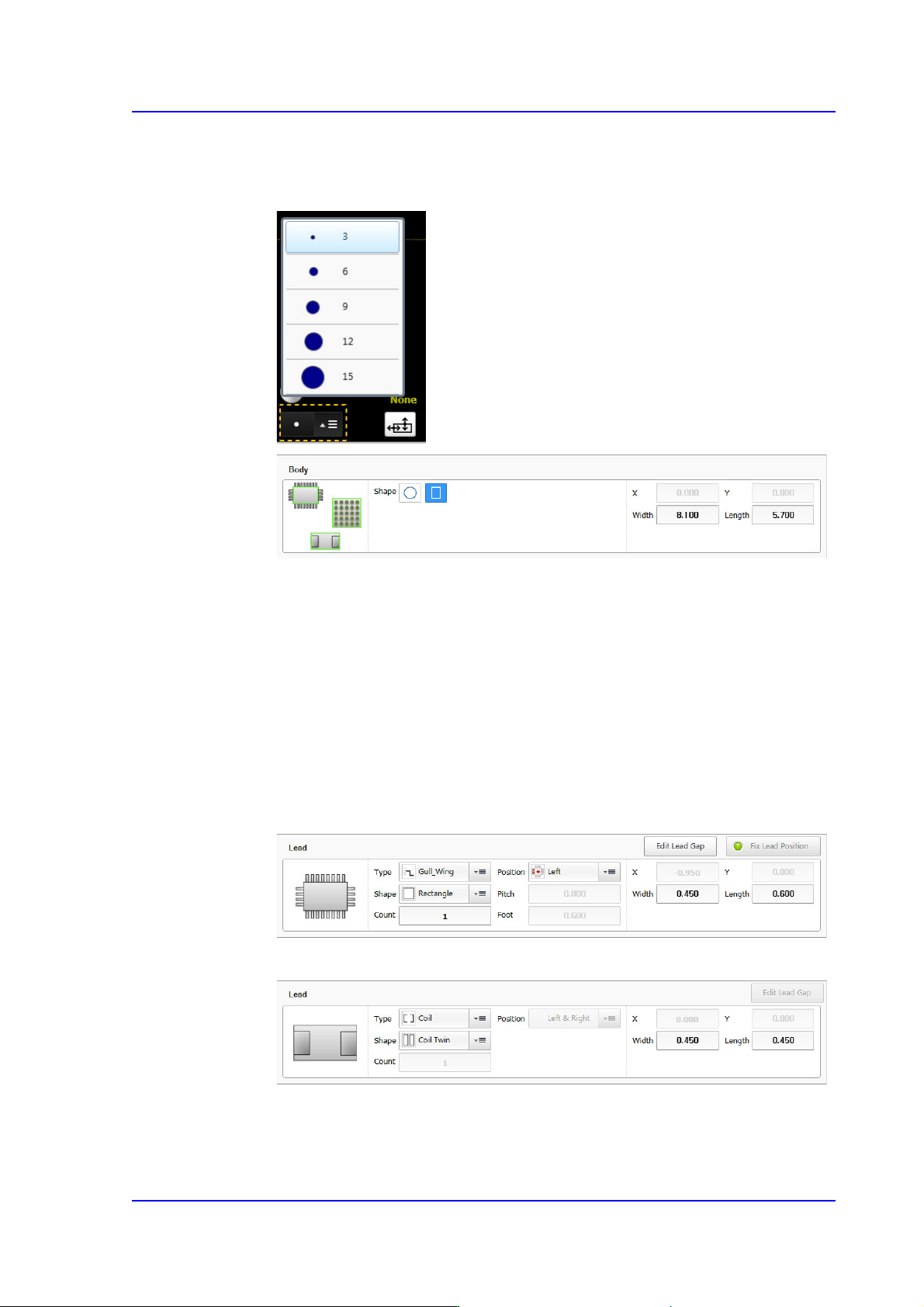

In order to adjust the size of the round dot so that it can be easily selected on the

machine's panel, adjust the size using the combo box at the bottom left of the

vision window.

 <Width> edit box

Input the width of an object to suit the image of an actual part. If the selected

object is round, input the diameter.

 <Height> edit box

Input the height of an object to suit the image of an actual part. Only when the

selected object is rectangular is this enabled.

 Lead/ Lead Group

Edits a lead shape to a defined object or deletes it.

The following shows the Gull Wing, J Lead and Land types of leads.

The following shows the coil type of lead.
