Samsung Component Placer CP45FV Series Administrator ’ s Guide <Light Control> button Select the light for the camera to recognize the component. Please refer to “ 7.2.1.1 Common Align Data ( Pa…
Part Registration
7-17
Set the length of lead in X direction.
<Lead L> edit box
Set the length of lead in Y direction.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
<Option> group
Set the align option data. Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for
more information.
<Outline> button
Displays the outline of the component on the vision monitor by using the set align
data.
<Move…> button
Performs component pickups or moves to the fix camera. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Test> button
Tests component recognition by using the set align data. For more information, refer
to “7.2.1.1 Common Align Data (Page 7-9)”.
<Image Capture> button
Helps to specify the optimum lighting value. The lighting is gradually changed
automatically and the images are saved. The user can check the best image and
identify the optimum lighting value.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
7.2.3. Melf component data setting
Set the align data for Melf components.

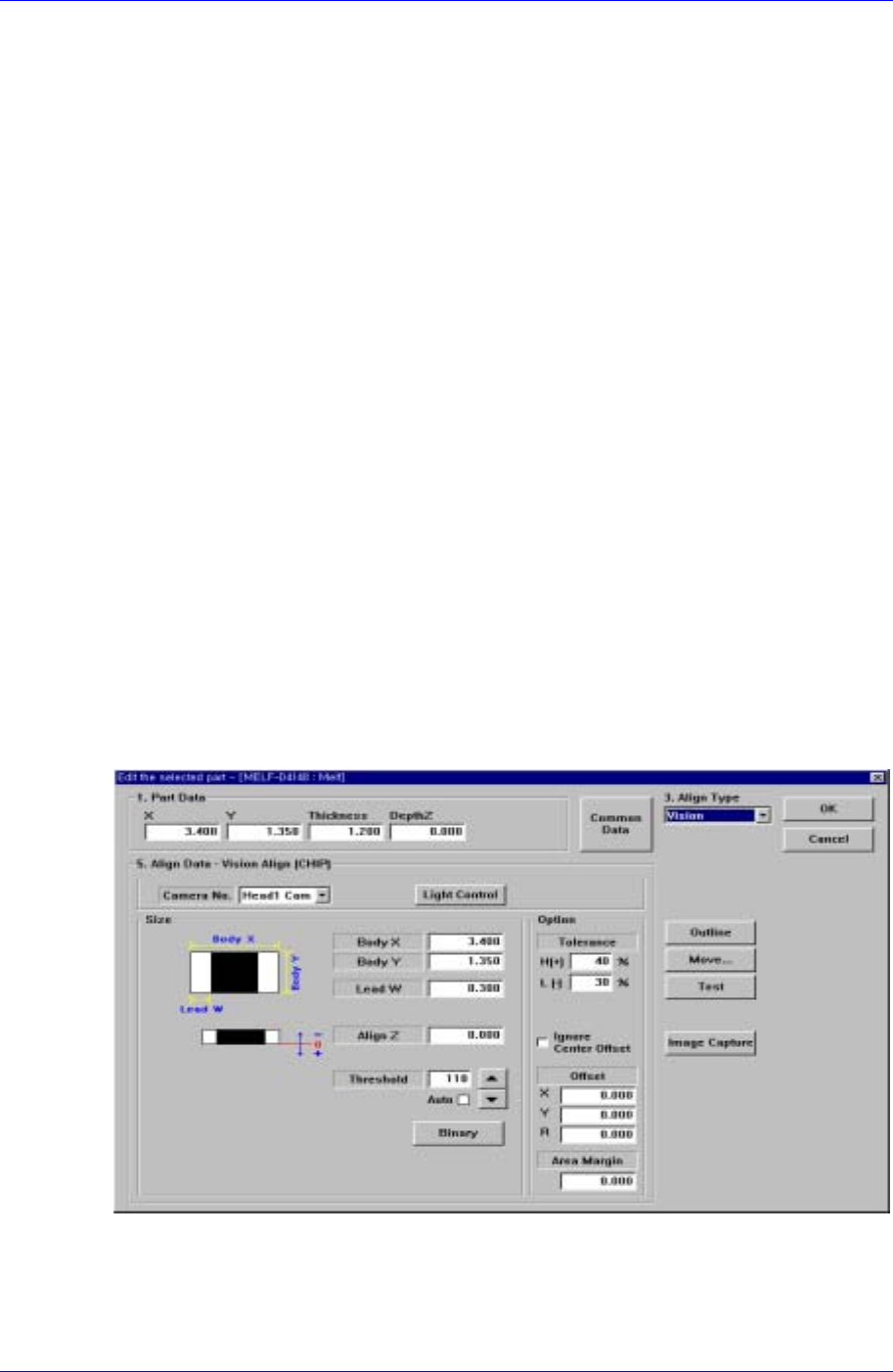

Figure 7-12. “Align Type = Vision, Package Group = Melf” dialog box
<Camera No.> combo box
Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align
Data (Page 7-9)” for more information.
Samsung Component Placer CP45FV Series Administrator’s Guide
<Light Control> button
Select the light for the camera to recognize the component. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Size> group
Set the Align size.
<Body X> edit box
Set the component size in X direction.
<Body Y> edit box
Set the component size in Y direction
<Lead W> edit box
Set the length of lead in X direction
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
<Option> group
Set align option data.. Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for
more information.
<Outline> button
Displays the outline of the component on the vision monitor by using the set align
data.
<Move…> button
Performs component pickups or moves to the fix camera. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Test> button
Tests component recognition by using the set align data. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Image Capture> button
Helps to specify the optimum lighting value. The lighting is gradually changed
automatically and the images are saved. The user can check the best image and
identify the optimum lighting value.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
7-18
Part Registration
7-19
7.2.4. TR component data setting
Set the align data for TR components.

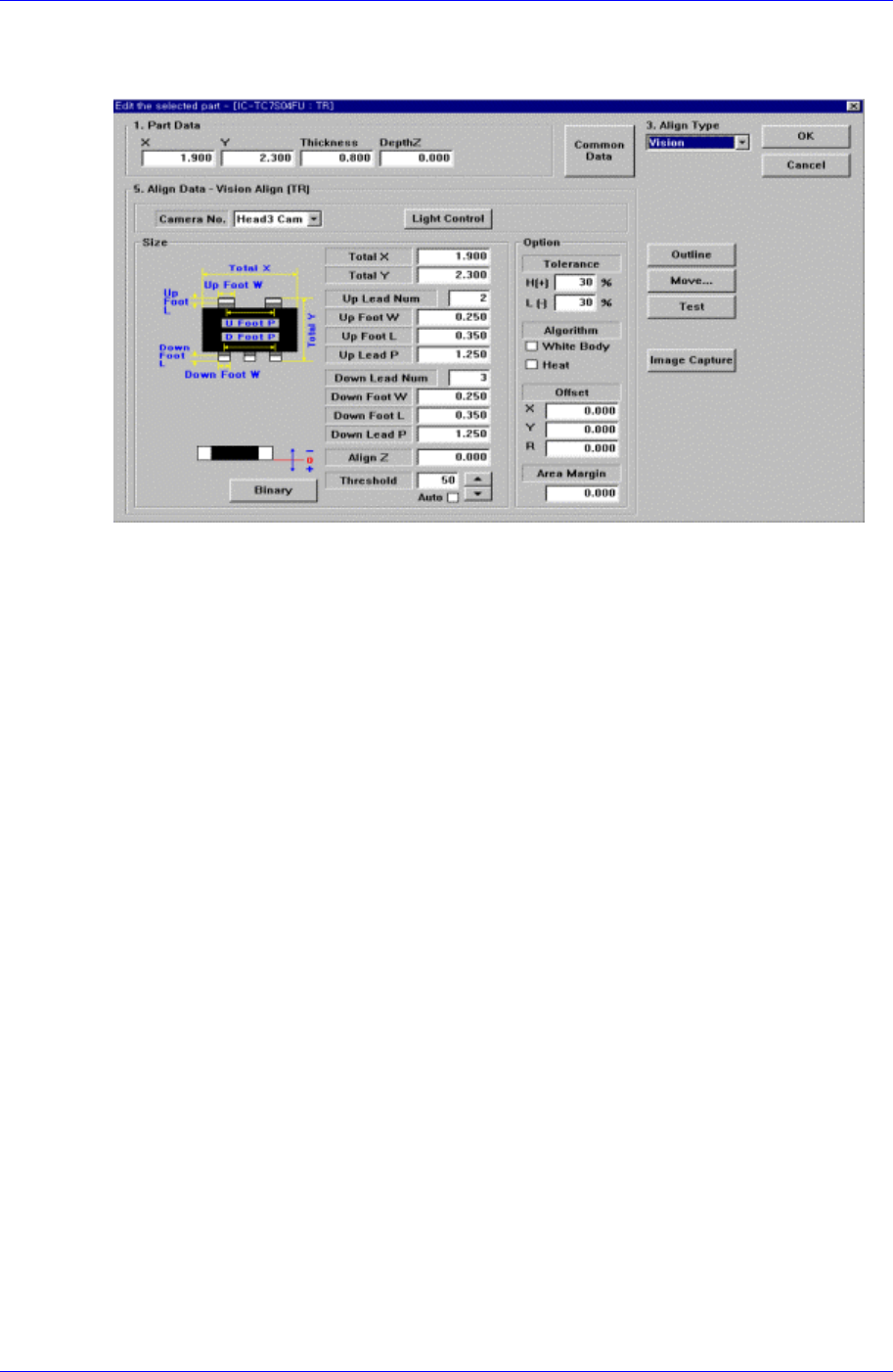

Figure 7-13. “Align Type = Vision, Package Group = TR” dialog box
<Camera No.> combo box
Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align
Data (Page 7-9)” for more information.
<Light Control> button
Set the light for the camera to recognize the component. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Size> group
Set the Align size.
<Body X> edit box
Set the component size in X direction.
<Body Y> edit box
Set the component size in Y direction.
<Up Lead Num> edit box
Set the number of upper leads.
<Up Lead W> edit box
Set the length of the upper lead in X direction.
<Up Lead L> edit box
Set the length of the upper lead in Y direction
<Up Lead P> edit box
Set the pitch between upper leads.
<Down Lead Num> edit box
Set the number of lower leads.
<Down Lead W> edit box
Set the length of lower lead in X direction.
