Feeder Setup

8-3

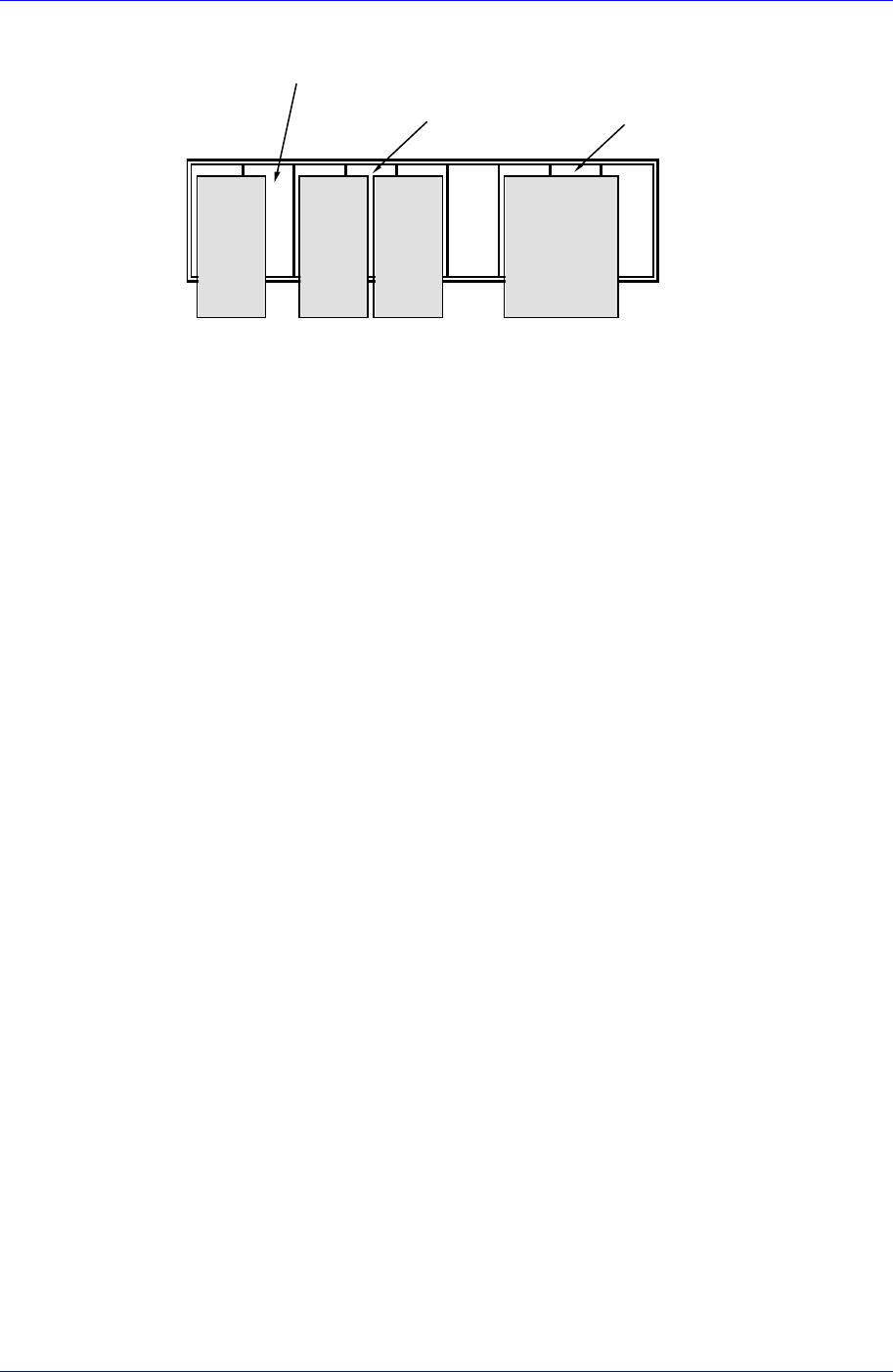

half status slot

Full status slot

<Push> column 



When the tape feeder is installed in the corresponding slot, select the number of

pushes necessary to push forward the tape feeder for 1 pitch.

<X> column

When the tape feeder is installed in the corresponding slot, set the X position to

pick up the component supplied from the tape feeder.

<Y> column

When the tape feeder is installed in the corresponding slot, set the Y position to

pick up the component supplied from the tape feeder.

<Z> column

When the tape feeder is installed in the corresponding slot, set the Z position to

pick up the component supplied from the tape feeder.

<R> column

When the tape feeder is installed in the corresponding slot, set the R

position(rotation angle of the head) to pick up the component supplied from the

tape feeder.

<PartR> column

When the tape feeder is installed in the corresponding slot, set the ing angle for

the component supplied from the tape feeder.

Samsung Component Placer CP45FV Series Administrator’s Guide

Memo

Definition on component supply angle and pickups angle

Supply angle (In the case of user):

The supply angle is based on the angle at which a component is supplied to the feeder. It

is the angle when the component is supplied from the feeder regardless of the feeder

being arranged in the front or at the rear.

0도 90도 180도 270도

180

270

<SK> column 





When the tape feeder is installed in the corresponding slot, select whether to pick

up the component supplied from the tape feeder or not.

To pick it up leave the check box as it is, and check the check box not to pick it

up.

<Dump> column

When the tape feeder is installed in the corresponding slot, select the dump box

for the component supplied from the tape feeder. Available dump boxes are as

follows.

System Dump: the dump box installed in the system, it is installed in the front of

the conveyor of the machine.

User Dump: the dump box set in the system by the user. The location in the

system must be set.

<Pick> button

Executes component pickups from the tape feeder installed on the current row of the

grid. A device must be selected first. When pickups is successful, the following dialog

box is displayed.

8-4

Feeder Setup

8-5

<Move to Fix Camera> button 





It is activated only when the corresponding component is aligned by the vision

camera and the align camera is the fix camera. When this button is clicked on,

the head block is moved to the fix camera..

<Part Align> button

Executes alignment of the corresponding component.

<Dump> button

Dumps the corresponding component to the dump box.

<Close> button

Closes the dialog box.

<Edit Part Info> button

Shows the Part Edit dialog for the corresponding component.

<Slot Move> button

Select whether to move the selected device by slot or by slot with tape feeder

installation. Whenever this button is clicked on, “Slot Move” and “Feeder Move”

alternates.

button

If <Slot Move> is set to “Slot Move”, moves the selected device to the slot on the

previous line of the current line in the grid.

If <Slot Move> is set to “Feeder Move”, moves the selected device to the slot on the

first line with tape feeder installation among the lines before the current line in the

grid.

button



If <Slot Move> is set to “Slot Move”, moves the selected device to the slot on the

next line of the current line in the grid.

If <Slot Move> is set to “Feeder Move”, moves the selected device to the slot on the

first line with tape feeder installation among the lines after the current line in the grid.

<Pusher U/D> button 

Moves up or down the air pressure cylinder in the slot on the current line in the grid.

When the feeder driving cylinder is on, the driving lever of the feeder is lifted, and

the shutter at the top of the feeder opens. Pickups point teaching is executed in this

state.
