Samsung Component Placer CP45FV Series Administrator’s Guide

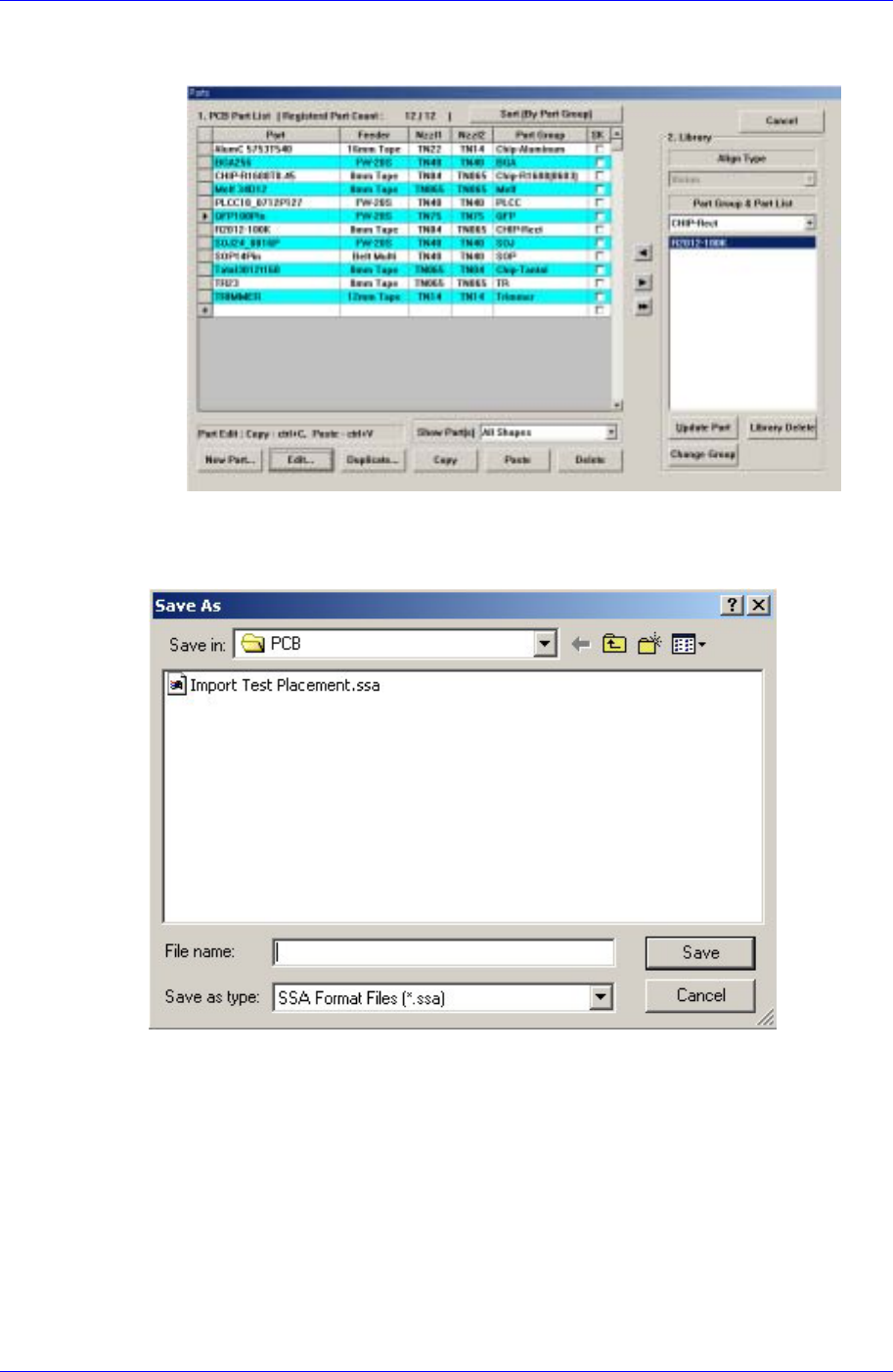

When all the unregistered part information is registered, they are displayed as
follows.
<Export…> button
Converts the step data created by this machine into other format(SSA Format) ASCII
File. When this button is clicked on, the following dialog box is displayed.
When the “Save” button is clicked on after the ASCII File name has been set, converts
the step data into SSA format and saves the data under the set file name.
<Cancel> button
Cancels the edited data.
9-14
Optimization
Chapter 10. Optimization
10-1
The Optimizer automatically creates a program to maximize the production efficiency by
optimizing the arrangement position and operation order of tape feeder, nozzle, ANC, and
others. The method to achieve the maximum production efficiency is as follows.
Minimize the number of nozzle changes
Maximize the number of simultaneous pickups by the feeder
Arrange the feeders so that the time for XY gantry movement is minimized
Decide the order of optimum mounting operation
The Optimizer takes into account of various operation conditions and executes the
optimum algorithm to achieve these results. In this chapter, the structures of various
setting screens and setting methods necessary to execute the Optimizer are explained.
10.1. Setup Menu/ANC

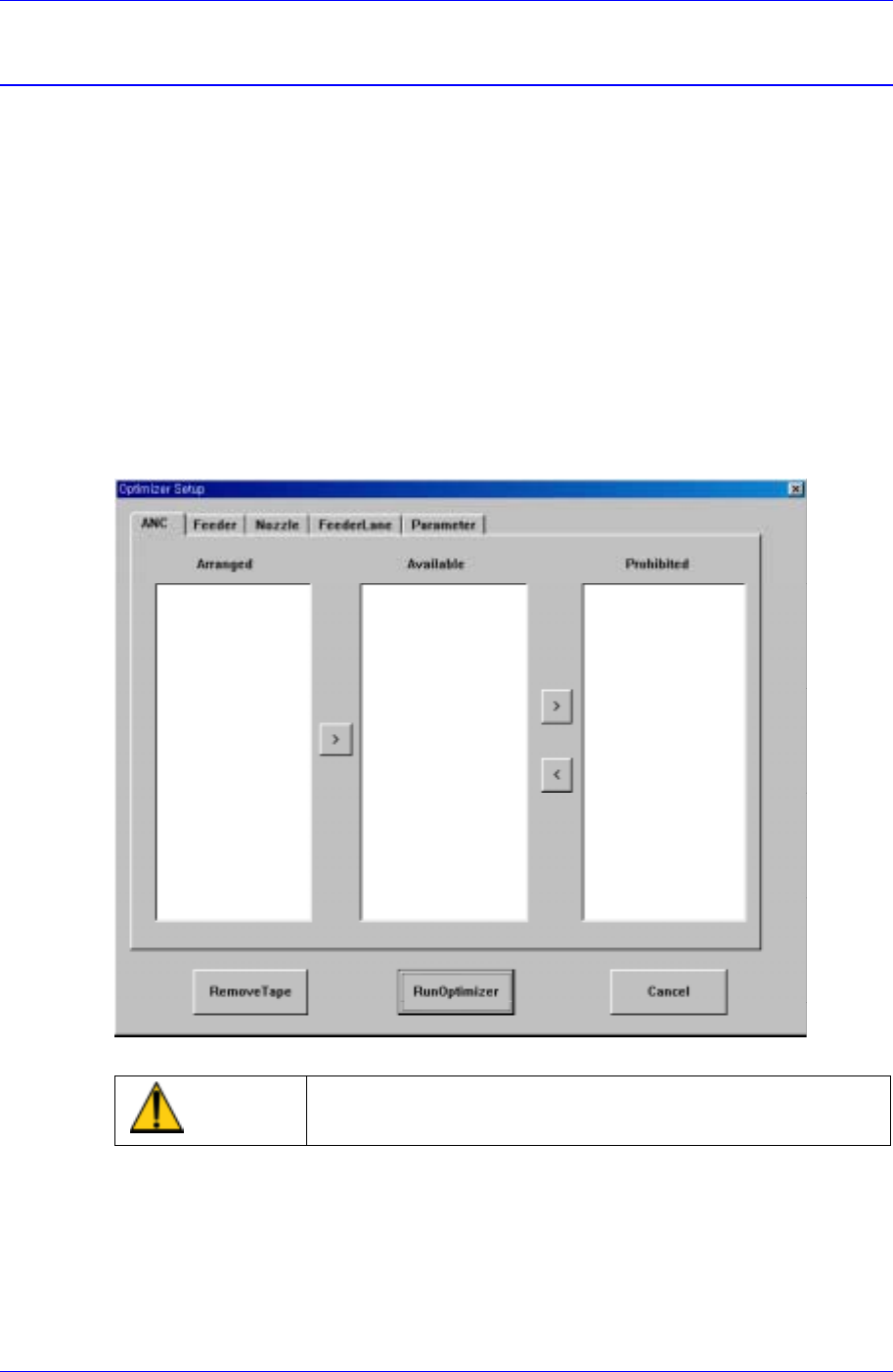

Figure 10-1. "Optimizer Setup: ANC" dialog box
Caution
If you move to another screen while editing the “Step”
dialog box, the edited content is saved automatically.
Samsung Component Placer CP45FV Series Administrator’s Guide
10.2. Setup Menu/Tape Feeder

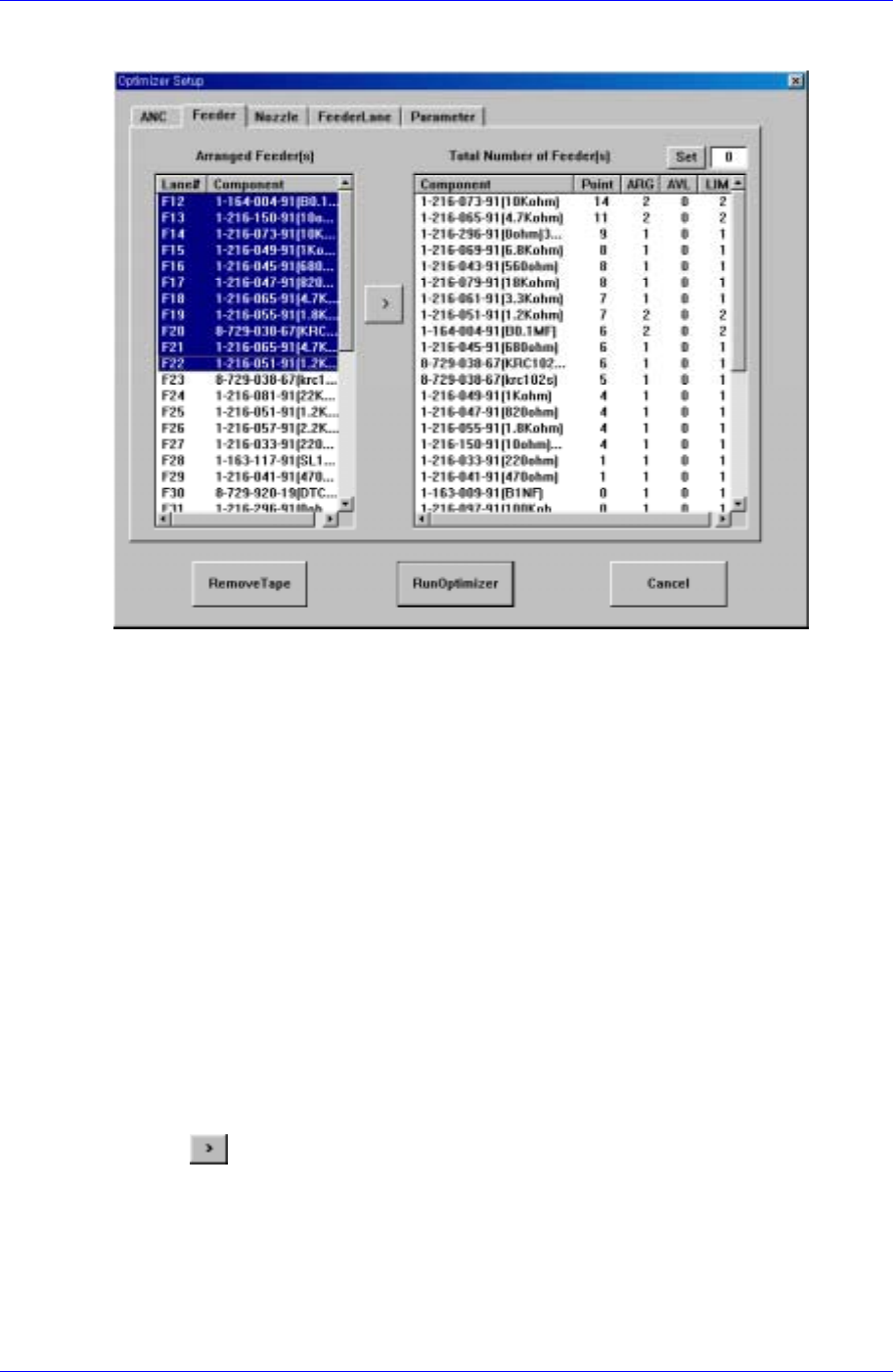

Figure 10-2. "Optimizer Setup: Tape Feeder" dialog box
The screen to set the optimum arrangement of tape feeder. The Optimizer can arrange
tape feeders in the optimum feeder lanes by considering simultaneous pickup and
operation time. But the user must specify the installation position for tray feeders and
stick feeders.
<Arranged Feeder(s)> list box
Lane# column
In the left list box, the number of the feeder that is already arranged in the feeder
lane and each component name are displayed. For the front feeder base, F is
attached in front of the feeder lane number and for the rear feeder base, R is
attached in front of the feeder lane number.
Componentcolumn
The feeders listed here are not arranged arbitrarily by the Optimizer. However,
the feeders already arranged affect other feeders when they are arranged by the
Optimizer. That is, when there are feeders already arranged, new feeders are
arranged to increase simultaneous pickup.
Among the feeders displayed here, move the feeders for which you want optimal
arrangement by the Optimizer to the right list box by clicking on the arrow button
(
) and execute the Optimizer.
<Total Number of Feeder(s)> list box
In the right list box, the number of placement points for each component, the number
of arranged tape feeders and the number of feeders to be arranged are displayed.
Component column
Of the components used by the PCB being edited, tape feeder components are
10-2
