Samsung Component Placer CP45FV Series Administrator’s Guide
operation.
<5. Place Origin> group
Set the placement origin of PCB. This origin is defined by the offset from the PCB
origin of the system to the placement origin of PCB. This is to set the reference point
of the board to work on based on the set coordinate. Generally, the reference point is
setup by choosing the pattern near the stopper. Set the reference point at the location
in the board that can be easily confirmed.
<Origin X> edit box
Set the X value of the placement origin of PCB.
<Origin Y> edit box

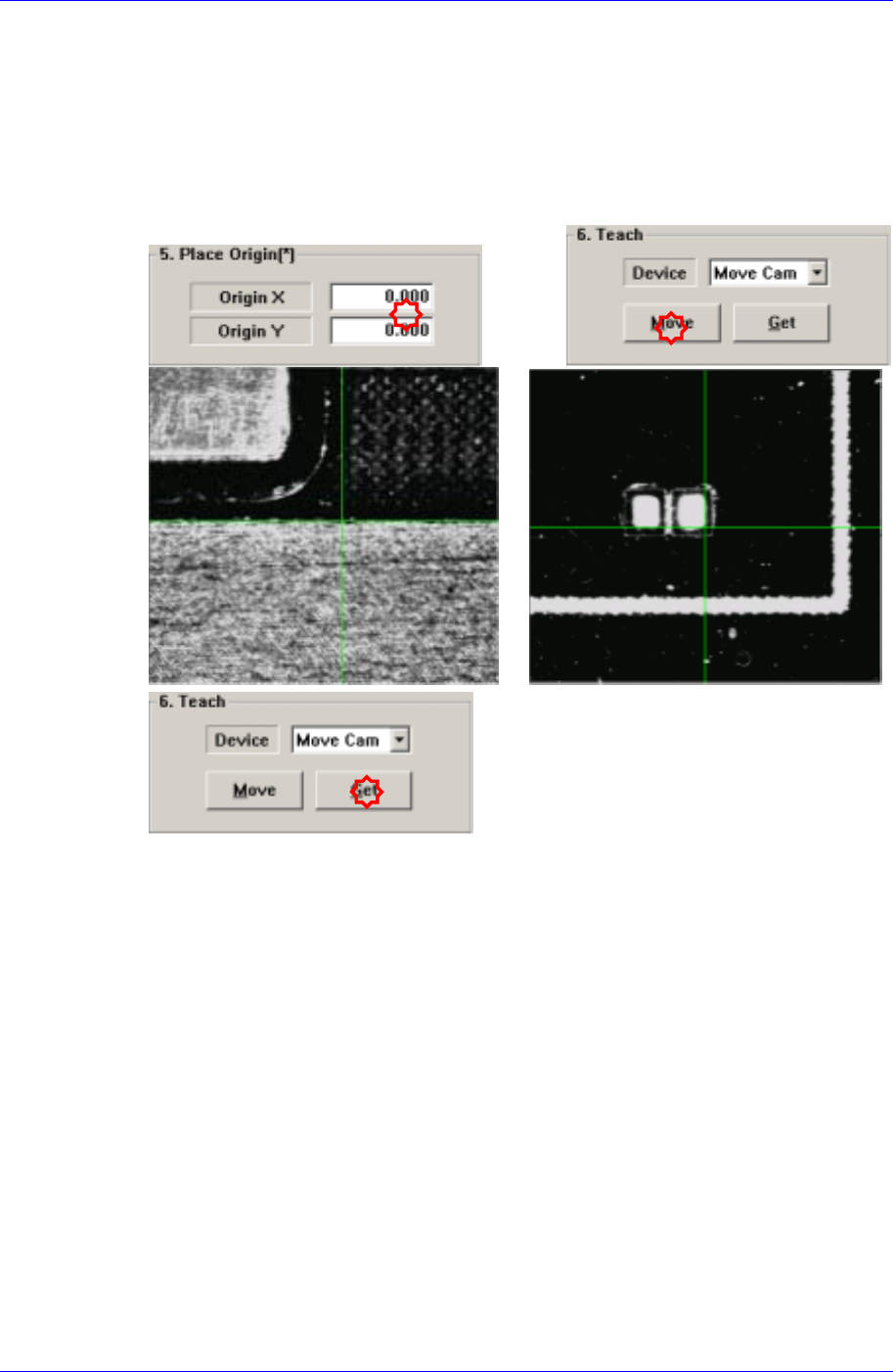

Set the Y value of the placement origin of PCB. Click on <Origin X> or <Origin
Y>, then click on the “Move” or “'Get” button in the <8. Teach> group, Teaching
of the placement origin can be done using the device selected from the <Device>
combo box.
<6. Teach> group
Used to move the head assembly or spindle to the set position by rotating the shafts of
the X, Y and Z-axes driving motors or to obtain the current shaft locations of the X, Y
and Z-axes driving motors.
<Device> combo box
Used to select the corresponding device when moving the head assembly by
rotating the shafts of the X, Y and Z-axes driving motors or to obtain the current
coordinate of the device to be selected. Available devices are as follows;
Move Cam: Selects Teaching Camera..
Head1: Selects Head1.
6-4
Board Definition
6-5
Head2: Selects Head2.
Head3: Selects Head 3..
Head4: Selects Head 4.
Head5 Selects Head 5.
Head6: Selects Head 6.
Beam: Selects Beam.
<Move> button
Moves the head assembly by rotating the shafts of the X, Y and Z-axes driving
motors using the device selected from the <Device> combo box. At this time, the
position value to be read is the origin or Move Z. Before executing “Move”, the
edit box corresponding to the desired position value must be clicked on with a
mouse.
<Get> button
Reads in the current position of the XY and Z axes of the device selected in
<Device> combo box. At this time, the target position value to get is the origin or
Move Z, before executing “Get”, the edit box corresponding to the desired
position must be clicked on with a mouse.
<7. Board Size> group
Set the board size.
<X> edit box
Set the X value of PCB size.
<Y> edit box
Set the Y value of PCB size.
<Conv.Width > button
Adjusts the conveyor width to be suitable for the work PCB before inputting it .
Memo
The sizes of PCB applicable for this machine are as follows.
Front side conveyor fixed
Max 460L×400W×4.2H [ mm ]
510.0mm (x-axis) x 460.0mm (y-axis) – Factory Option
Min 50L×50W×0.38H [ mm ]
The maximum PCB size could differ according to the options.
For more information, refer to Introduction manual “2.6. PCB Specification”.
<8. Handling> group
Set the data necessary for PCB operation.
<Fix Type> combo box
Select the method for fixing a PCB.
Edge Fixer: A method of arrangement by pushing the PCB from the side
Samsung Component Placer CP45FV Series Administrator’s Guide
with a device attached on the conveyor.
Edge Fixer2: It is the same as the “Edge Fixer” method, but it is a method
of pushing twice from the side.
None: It uses only the PCB clamping method for fixing a PCB.
<Wait Type> combo box
Selects the position where the head assembly is waiting when the PCB is loaded
onto the working area.
Auto: the machine determines the waiting position automatically.
System: waiting at the position specified by the system.
<Move Z>
Set the minimum distance between the top of the PCB and the end of the head (if
a nozzle is attached, to the end of the nozzle) during PCB operation.
<Array…> button
If the Array PCB is more than one, set the offset value between the origin of each
Array PCB and the placement origin of PCB. When this button is clicked on, the
following dialog box is displayed.

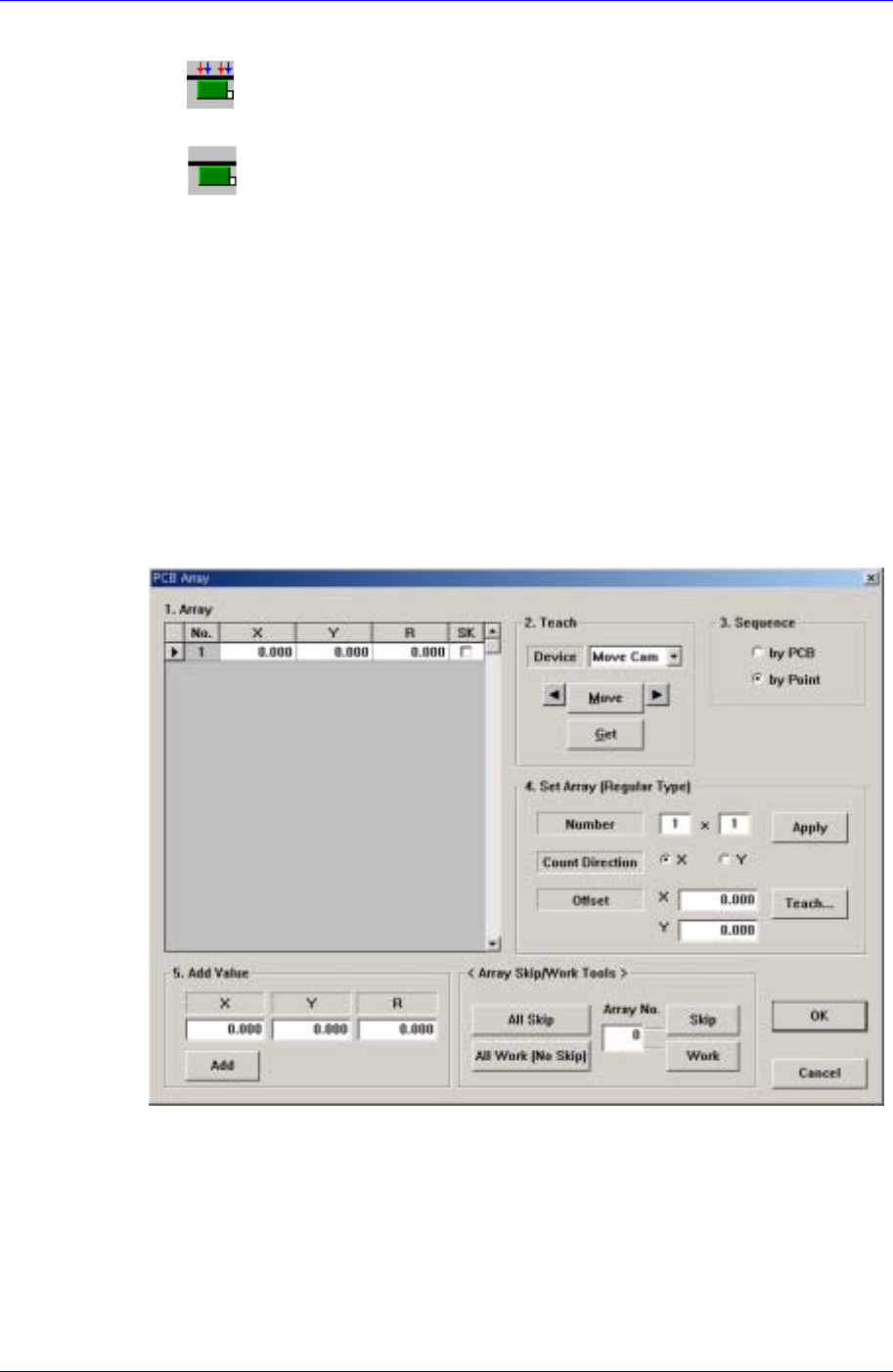

Figure 6-8. “PCB Array” dialog box
<1. Array> group
Set the offset value of Array PCB from the “Place Origin” of the PCB.
<2. Teach> group
Used to move the head assembly by rotating the shafts of the X, Y and R-axes
driving motors of the machine, rotate the spindle or obtain the current shaft
locations of the X, Y and R-axes driving motors.
6-6
