Part Registration 7-5 Figur e 7-5. “ Cr eate a new p art/Edit the selected part- Co mmon Data ” dialog box <Feeder & Nozzle> group <Feeder> combo box: Select the feeder type to supply components. Appl…
Samsung Component Placer CP45FV Series Administrator’s Guide
Group>.
<4. Part Data> group
Set the data including the component size.
<X> edit box
Set the component size in X direction.
<Y> edit box
Set the component size in Y direction.
<Thickness> edit box
Set the height(thickness) of the component.
<DepthZ> edit box
Set the depth of the groove on top of the component. Unless warranted by a
special purpose, set to “0”.
Thickness
DepthZ
Pickup Surface
Caution
When the component height is incorrect, the placement
may become less accurate. Input the component height
accurately.
<5. Align Data> group
Set the component align data.
The edit screen for the align data selected in <2. Align Type> and <3. Package
Group> are displayed in this group.
If “None” has been selected in <2. Align Type>, the edit screen is not displayed
since it is a case of not aligning components. If “Vision” has been selected in <2.
Align Type>, the displayed screen differs according to the selected data in <3.
Package Group>.
The screens displayed according to the selected data in <3. Package Group> are
to be explained in the next chapter.
<Common Data> button
Sets the component data related to the machine. When this button is clicked on,
the following dialog box is displayed and the name of the button is changed to
“Align Data”.
“Align Data” button displays the align data screen.
7-4
Part Registration
7-5
Figure 7-5. “Create a new part/Edit the selected part- Common Data” dialog box
<Feeder & Nozzle> group
<Feeder> combo box: Select the feeder type to supply components.
Applicable feeder types are as follows.
8mm Tape: Supply by 8mm Tape Feeder.
12mm Tape: Supply by 12mm Tape Feeder.
16mm Tape: Supply by 16mm Tape Feeder.
24mm Tape: Supply by 24mm Tape Feeder.
32mm Tape: Supply by 32mm Tape Feeder.
44mm Tape: supply by 44mm Tape Feeder.
56mm Tape: Supply by 56mm Tape Feeder.
32mm Adhensive: Supply by 32mm Adhesive Tape Feeder.
Belt Stack Stick: Supply by Belt Stack Stick Feeder.
Vibration Multi Stick: Supply by Vibration Multi Stick Feeder.
Belt Multi Stick: Supply by Belt Multi Stick Feeder.
Single Tray: Supply by Single Tray Feeder.
FW-20F: Supply by 20-stage Tray Feeder.
FW-20S: Supply by 20-stage Tray Feeder.
FW-12M: Supply by 12-stage Tray Feeder
<Nozzle1> combo box: Displays the nozzle that pick up the component. The
types of nozzles are as follows;
(TN-04S, TN03, TN04, TN065, TN14, TN22, TN40, TN75, TN110)
<Nozzle2> combo box: Displays the auxiliary nozzle that adsorbs the
component. When the main nozzle can not be used, the auxiliary nozzle is
used. The types of auxiliary nozzles are the same as the main nozzle.
<Etc> group
<Sync Pick X> edit box: Set the allowance in X direction as a percentage of
Samsung Component Placer CP45FV Series Administrator’s Guide
Part Size X at the time of synchronized pick up.
<Sync Pick Y> Set the allowance in Y direction as a percentage of Part Size
Y at the time of synchronized pick up.
<Retry> combo box: Set the number of retries when the component pickups
was not successful. Available numbers are 1 - 3.
<Vacuum Check> check box: Check it to carry out vacuum check during
component pickups.
<Delay> group
Set various delay time for pickups, placement, and dump operations.
<Pick Up> edit box: During component pickups, the delay time after the
head has come down until the head starts ascending.
<Place> edit box: During component placement, the delay time after the
head has come down until the head starts ascending.
<Vac Off> edit box: During component placement, the delay time after the
head has come down until vacuum is off.
<Dump> edit box: During component dumping, the delay time after the head
has come down until the head starts ascending.
<Dump Vac Off> edit box: During component dumping, the delay time after
the head has come down until vacuum off.

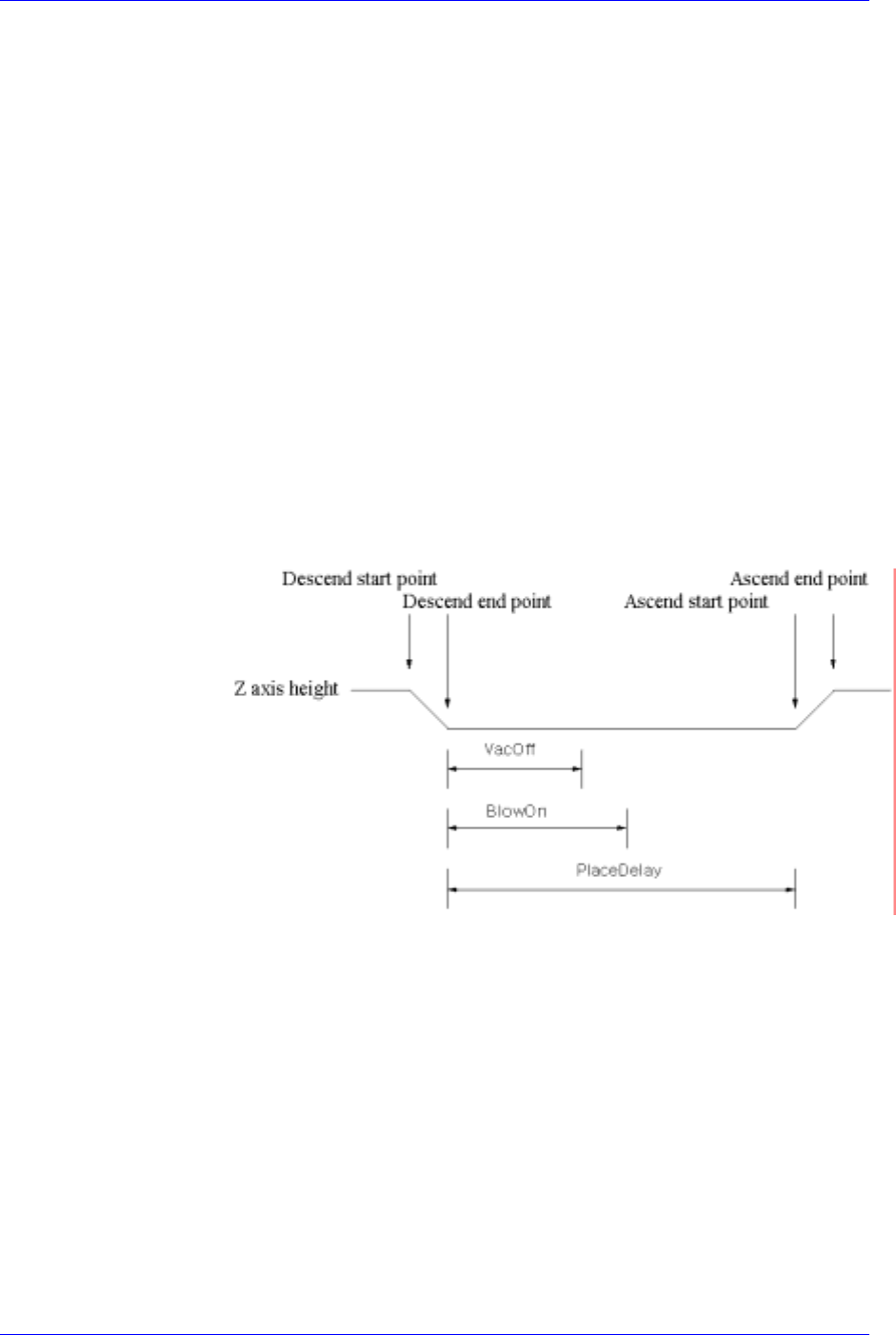

Figure 7-6. Flowchart of “Delay Time during Placement”
<Speed> group
Set the speed for each axis during pickups, placement, and dumping
operations. The speeds are as follows, and the profile of each moving speed
is set in the system.
1- Fastest: The fastest speed.
2- Fast: Fast speed.
3- Middle: Middle speed.
4- Slow: Slow speed.
5- Slowest: The slowest speed.
<XY> combo box: Select the speed for XY axis
<R> combo box: Select the speed of R axis.
