Nozzle
name
Minimum
component
width
Major component types
TN-03
0.3 ~ 1.5 0603,1005 Only
TN-04
0.5 ~ 1.25 1005, 1608, 2012,3216, SOT(Molded part 0.8 X 1.6)
TN-065
0.8 ~ 2.5 1608, 2012, 3216, MELF(Molded part 1.2 X 2.0), SOT23
TN-14
2.5 ~ 4.0
Aluminum electrolytic capacitor(Small), Tantalum capacitor,
Trimmer
TN-22
4.0 ~ 7.0
Aluminum electrolytic capacitor(Medium), SOP(Narrow), SOJ,
Connector
TN-40
7.0 ~ 10.0
Aluminum electrolytic capacitor(Large), SOP(Wide), TSOP,
QFP, PLCC, SOJ, Connector
TN-75
10.0 ~ QFP(Medium), PLCC(Medium)
TN-110
20.0 ~ QFP(Medium), PLCC(Large)
CN20 Calibration Tool(Nozzle) for Flying Vision
Vacuum Defect
Occurs when the vacuum of the corresponding head is not created normally.
Check if the vacuum of the corresponding head is normal.

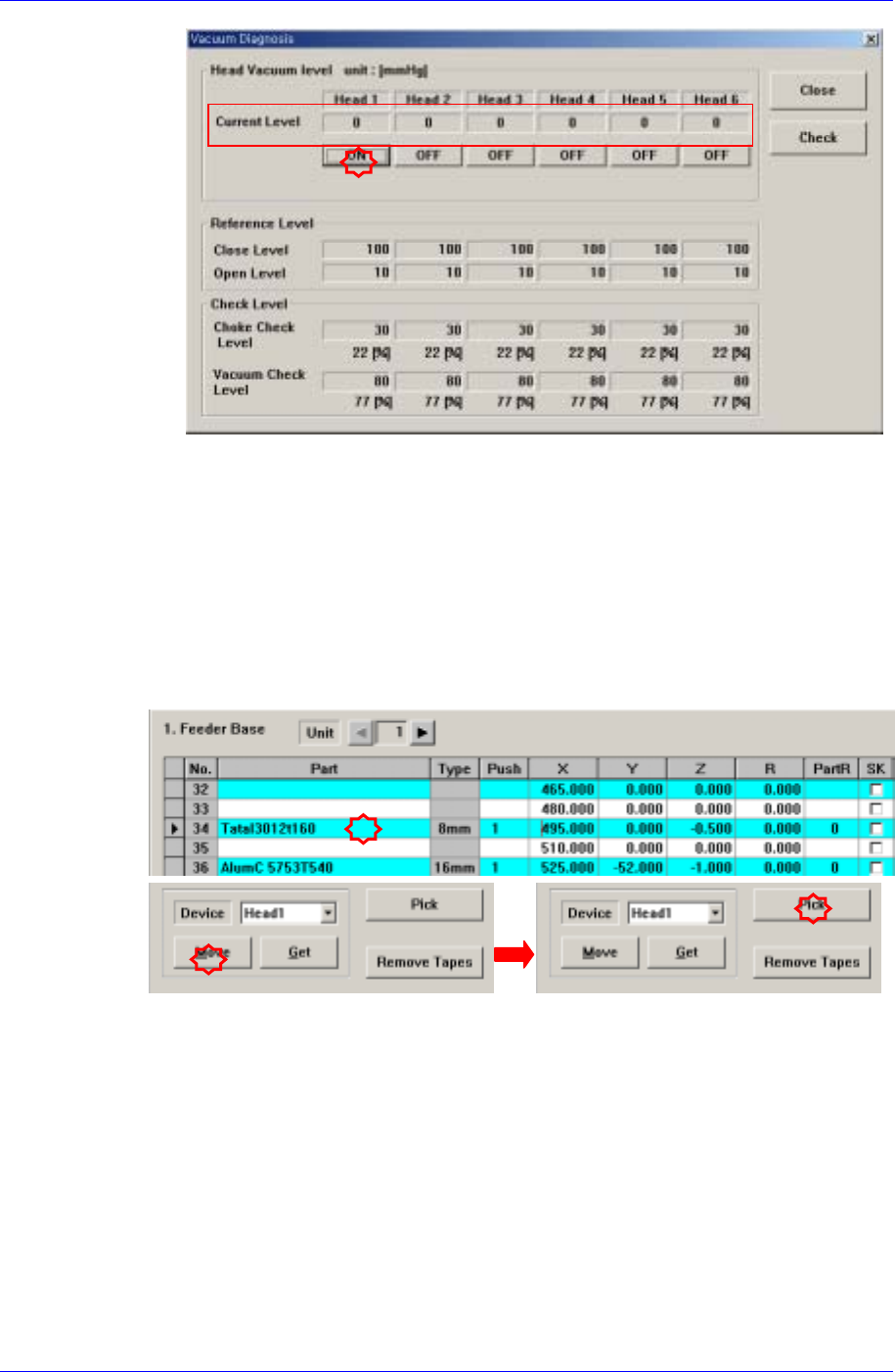

Select the “Diagnosis” menu and then select the submenu of the “Vacuum”
menu at the left of the screen.
Check if the current vacuum level is higher than 600mmHg by turning on the
vacuum clicking the <ON> button of the corresponding head in the
<Vacuum Diagnosis> dialog box with the nozzle tip covered with a finger.
If the current vacuum level is below 600mmHg, there is a problem with the
vacuum function. Contact our designated CS company (STS) or local agent.
14-12
Placement Test
14-13
14.3.4. Component Recognition Error
Occurs when the component is not recognized through the vision system. Generally, it
occurs when the registered component data or the lighting for component recognition is
inappropriate.
When the component recognition error occurs, stop the work and perform test pickup
for the component to which the error occurred and check the align data.
The following example assumes that an error occurred when the Head 1 picked up the
‘Tantal3012t160’ component fed to the 8mm Tape Feeder mounted on the No. 34 slot.
Select the feeder mounted on the No. 34 slot in the “Feeder” dialog box with the
component mounted on the Head 1.
If the <Move> button is clicked after selecting the Head 1 in the <Device> combo
box, the Head 1 moves to the placement point of the corresponding feeder.

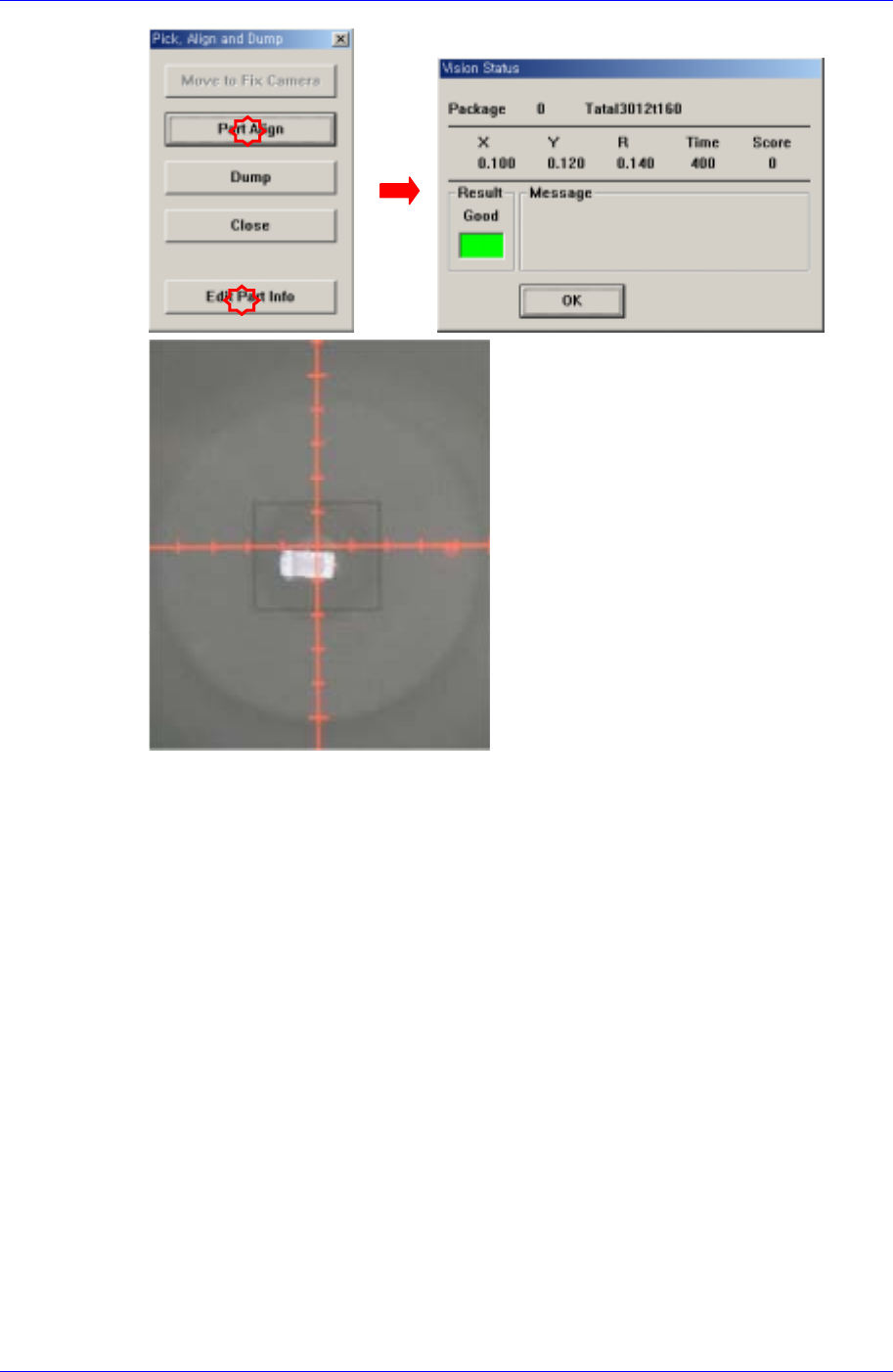

If the <Pick> button is clicked, the following dialog box is displayed. When the <Part
Align> is clicked in the dialog box, the machine will perform component recognition.
If the component is recognized successfully, the following “Vision Status” window is
displayed.
Samsung Component Placer CP45FV Administrator’s Guide
If the component recognition is failed, click the <Edit Part Info> button to change the
Align Data for the corresponding component.
At this time, if the component is not clearly seen on the vision monitor as in the
above figure, click the <Light Control> button in the following dialog box to adjust
the lighting by controlling the slide bar so that the component shape can be seen
clearly.
