Feeder Setup
8-15
of the component supplied from the tray feeder.
<SK> column
When a tray feeder is installed on the corresponding tray, select whether to pick
up the component supplied from the tray feeder or not.
To pick up the component, leave the check box as it is, and not to pick up the
component, check the check box.
<Dump> column
When a tray feeder is installed on the corresponding tray, select the dump box for
the component supplied from the tray feeder. Available dump boxes are as
follows.
Return to Tray: Dumps to the tray from which the component was picked up.
User Dump: Sets the dump box set by the user in the system..
<Teaching method> combo-box
This selects the method of determining the tray feeder parts pick-up position.
3Pocket [Default]
As shown in the following figure, input the positions of the two corner points
facing each other diagonally for 3 pockets.
The pick-up position of the parts can also be designated using the following
method.
<3Pocket Center>
As shown in the following figure, input the coordinates of the center points of
Samsung Component Placer CP45FV Series Administrator’s Guide
pocket No’s. 1, 2 and 3.
<2Pocket Diagonal>
As per the following figure, input two corner points of pocket No’s. 1, 2 and 3
that face each other diagonally.
<2Pocket X-Axis>
8-16
Feeder Setup
8-17
As shown in the following figure, input the coordinates of the center point of any
one pocket in the X direction, the coordinates of the two corners in the diagonal
position of the second pocket and the pocket pitch in the X and Y directions.

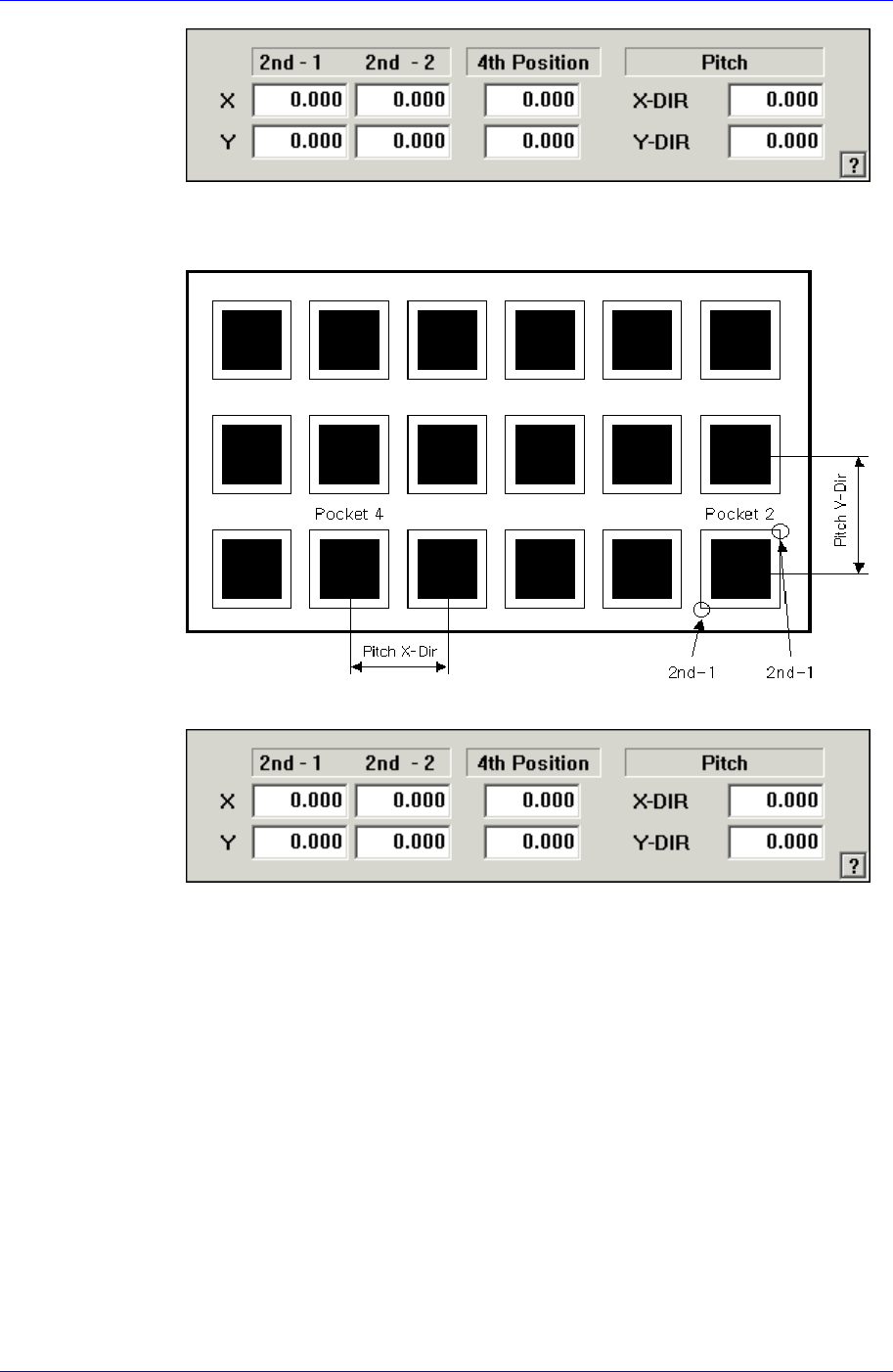

<2Pocket Y-Axis>
As shown in the following figure, input the coordinates of the center point of any
one pocket in the Y direction, the coordinates of the two corners in the diagonal
position of the second pocket and the pocket pitch in the X and Y directions.
