Samsung Component Placer CP45FV Administrator’ Guide

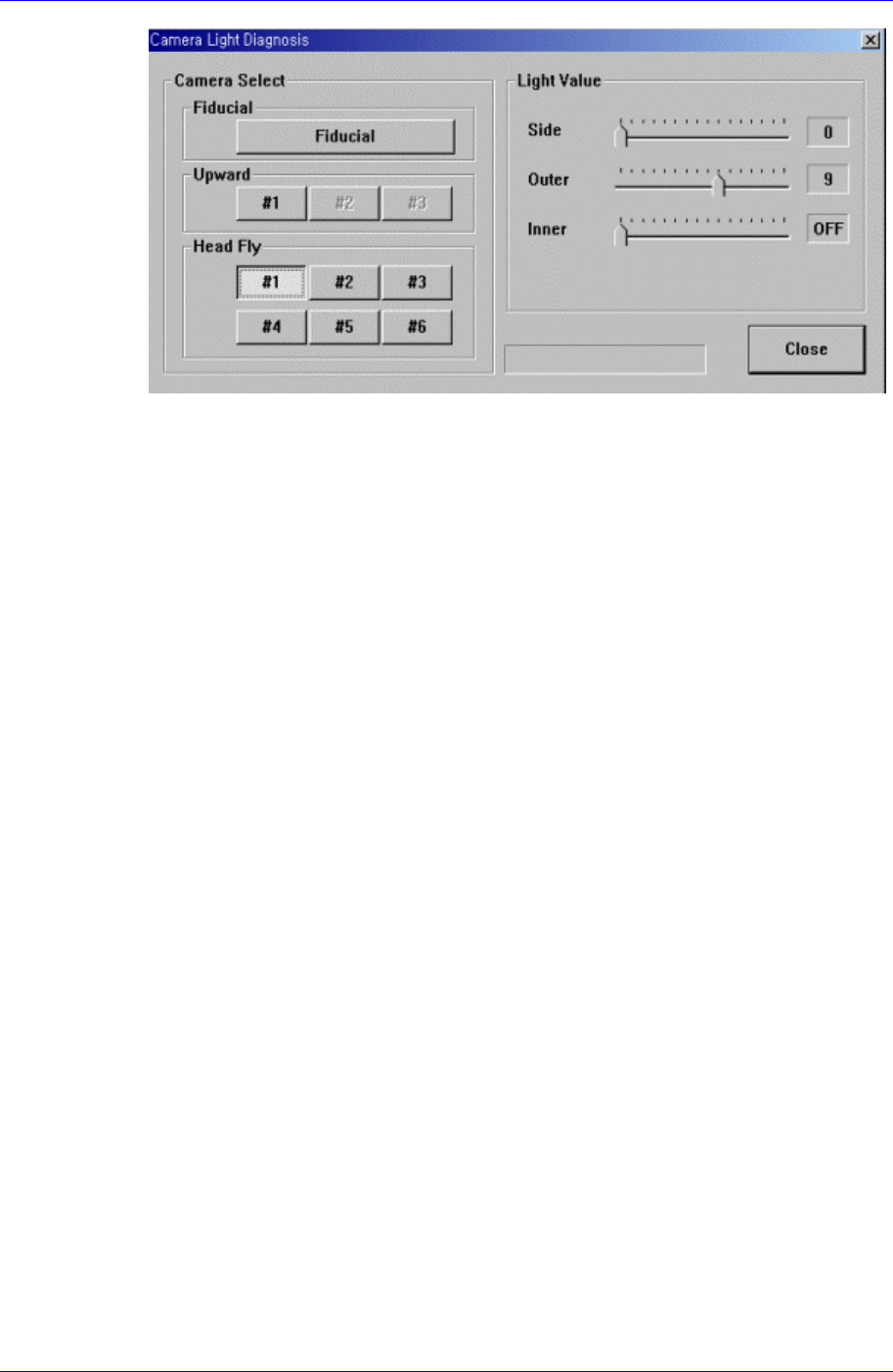

Figure 17-8. When the Head Fly Camera is selected in “Diagnosis : Camera Light Diagnosis”
<Side>: Set the light value for the side light. The range of possible light values is 0 –
15.
<Outer>: Set the light value for the outer light. The range of possible light values is 0
– 15.
<Inner>: Set the light value for the inner light. ON or OFF is possible.
<Close> button
Closes the dialog box.
17-6
Diagnosis
17-7
17.4. Vacuum [F5]
Checks the air pressure status of the head.
When this button is clicked on, the following dialog box is displayed.

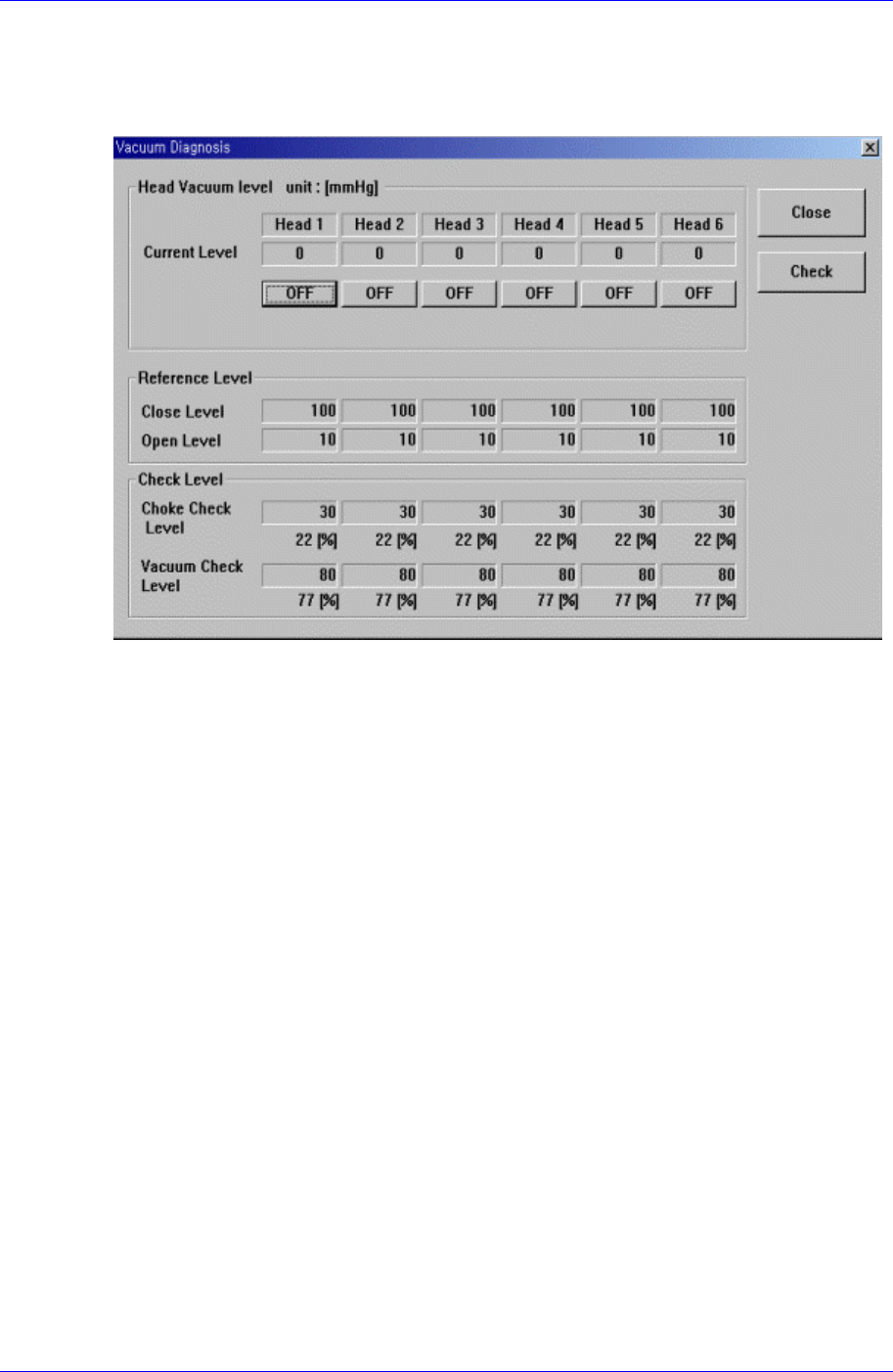

Figure 17-9. “Diagnosis : Vacuum Diagnosis” dialog box
<Head Vacuum level> group
Displays the vacuum level of each head and controls the vacuum generator.
<Current Level>
Displays the current vacuum level of each head.
<OFF> button
Controls the vacuum generator of each head.
When “OFF” is displayed, pressing this button turns off the vacuum generator
and displays “ON” on the button. When “ON” is displayed, pressing this button
turns on the vacuum generator and displays “OFF” on the button.
<Reference Level> group
When the vacuum level is used as a criteria for determining component pickups by
each head, displays the standard value.
<Close Level>
Display the vacuum level of each head when the nozzle is stuck fast to the Check
PAD.
<Open Level>
Displays the vacuum level of each head when the nozzle is open.
<Check Level > group
Displays the vacuum level that is used as a criteria for determining component
pickups.
<Choke Check Level>
Samsung Component Placer CP45FV Administrator’ Guide
Displays the vacuum level that considers the nozzle to be choked up before
component pickups.
<Vacuum Check Level>
Displays the vacuum level that considers a pickups to be successful after
component pickups.
<Check> button
Measures the time taken until the vacuum level is stabilized. When this button is
clicked on, the following screen is displayed.
<Close> button
Closes the dialog box.
