Samsung Component Placer CP45FV Series Administrator ’ s Guide Example: <Set Array[Regular Type].> group    Mouse manipulation The following terms are related to manipulating the m ouse. Click or select Press on…

Preface

mouse, it enters the state ready for inputting values.

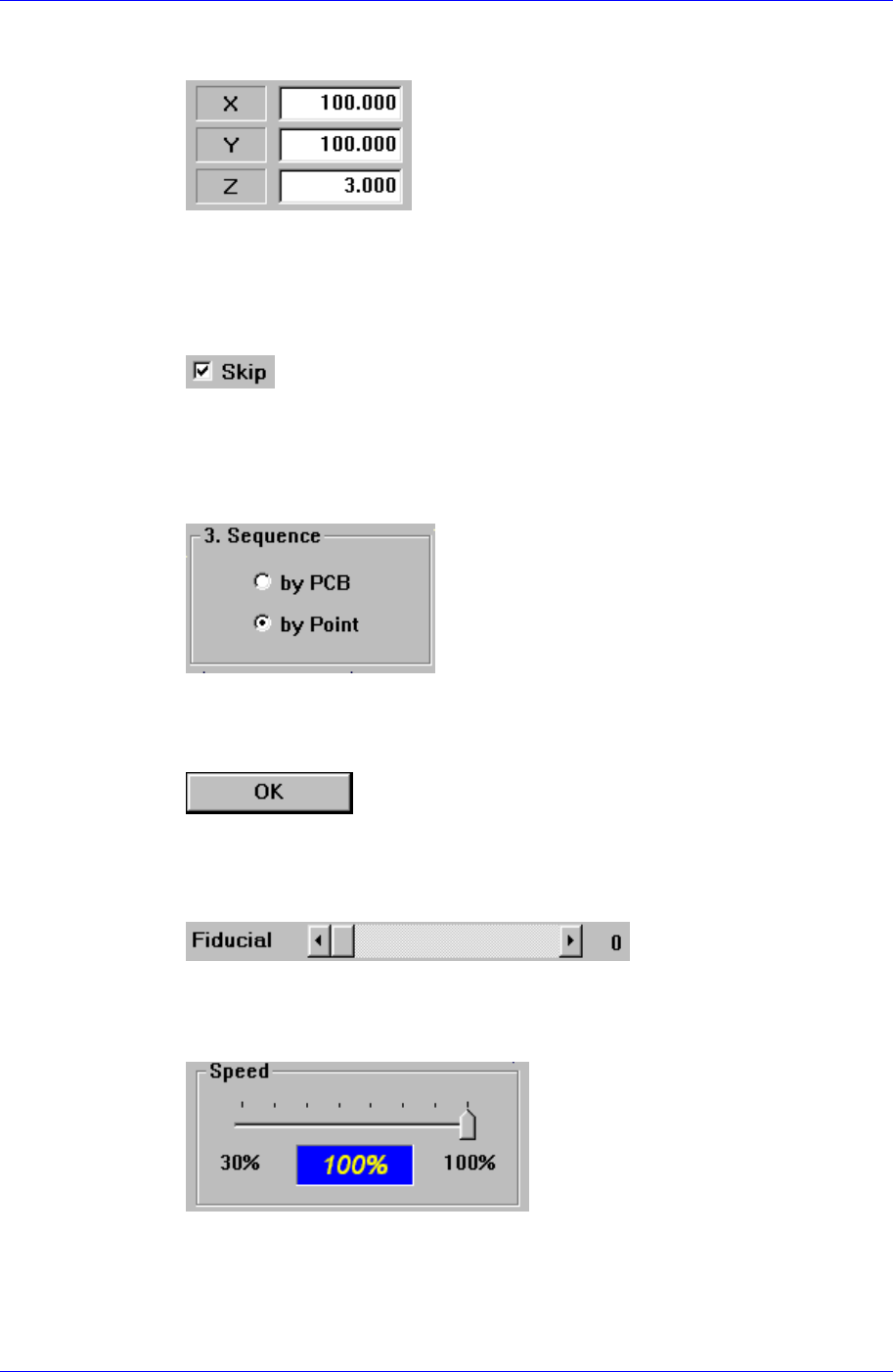

Check box 

This button enables determination of whether to use a function presented or to

select from multiple.

Option button 

This button is used when selecting only one from among many options. If one

button is clicked on, selection of another button is disabled.

Other buttons 

These buttons perform various prescribed operations when pressed.

Control box 

This is a box for adjusting the set values by using a scroll bar.

Slide bar 

This is a box for adjusting the set values by using a slide bar.

Group 

The above items are gathered into this area. In this manual, it is called “<XX>

group” based on the name XX above the group.

Samsung Component Placer CP45FV Series Administrator’s Guide

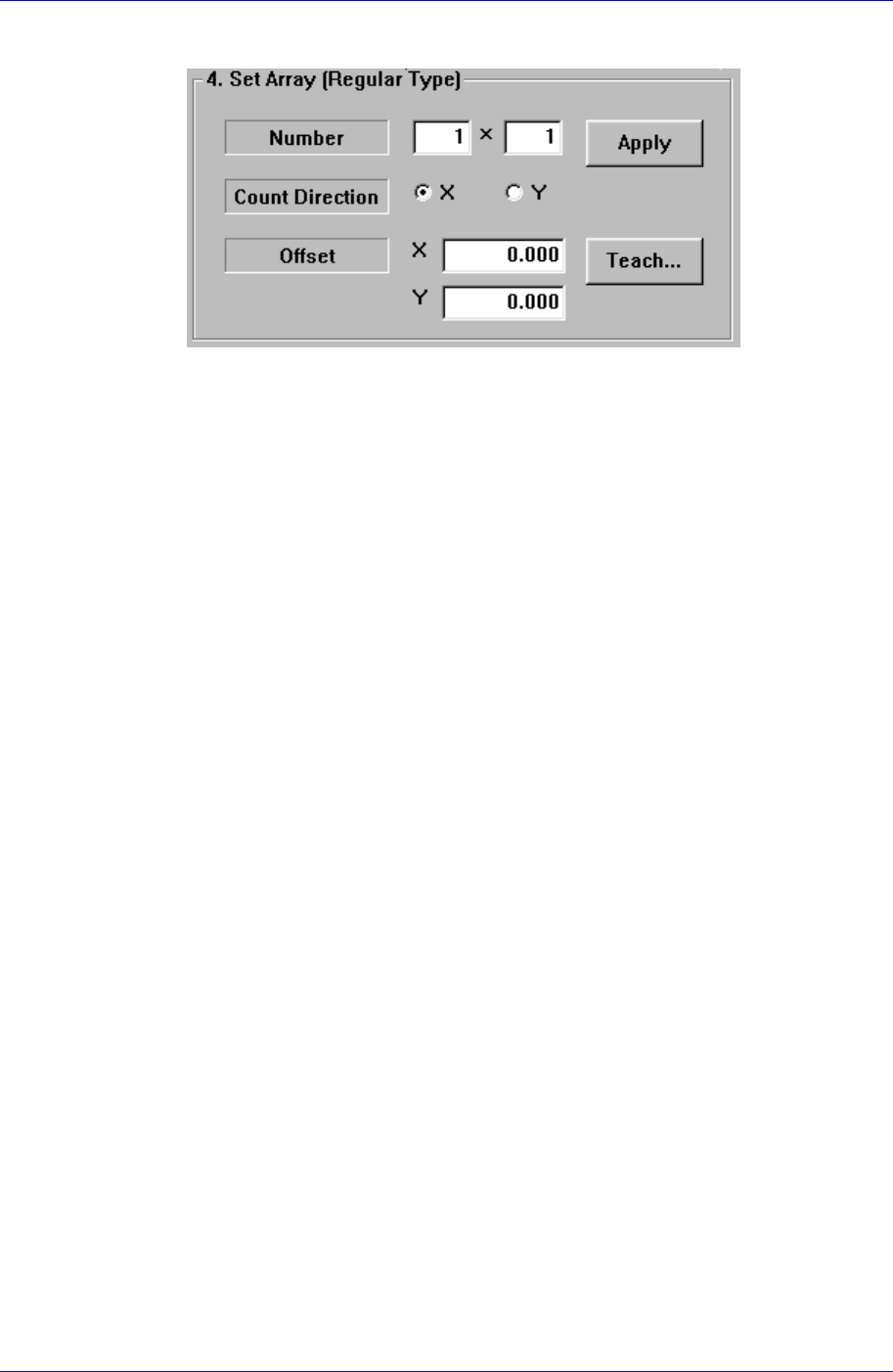

Example: <Set Array[Regular Type].> group





Mouse manipulation

The following terms are related to manipulating the mouse.

Click or select

Press once the corresponding item with the left button of the mouse by moving

the pointer of the mouse.

Double click

Press twice in rapid succession the corresponding item with the left button of the

mouse by moving the pointer of the mouse.

xii

Preface

xiii

 Screen display

The main screen of MMI of this machine is shown below.

indicated.



The states of nozzles ed on each head are indicated.

X, Y coordinates of the head

position based on head1 are

indicated.

A main menu tool-bar is shown.

Use a menu bar as in a general window

application program

A sub menu tool-bar is shown.

A help message applicable to the

present state as well as the state

of the machine (IDLE, RUN,

FREEZE, WAIT, PAUSE) is

Memo

Pictures showing a dialog box or message box of MMI are inserted to produce this

manual. Therefore, the screens shown in the manual and various settings, values and

contents included within may vary depending on the machine installed or the

operational environment. The MMI screens shown in the manual are inserted for

more detailed reference and explanation. They are produced by enlarging or reducing

the contents appearing on the main screen of MMI.

 In addition, pictures inserted in this manual are prepared based on the CP45FV

model, and therefore, some discrepancies may exist depending on the model.
