Part Registration 7-25 recognition is greater than 0.1 it recogni zes the angle after correcting the angle. It repeats this until the result of the reco gnition become less than 0.1. When the value becomes 0.1, it pick a…

Samsung Component Placer CP45FV Series Administrator’s Guide

Set the number of leads on a side.





<Missing Pin Num> edit box

Set the number of empty leads at the center of the lead column(group).

<Body X> edit box

Set the size of component body in X..

<Body Y> edit box

Set the size of component body in Y.

<Lead Width> edit box

Set the width of lead.

<Lead Pitch> edit box

Set the lead pitch

<Lead Foot> edit box

Set the length of the lead that touches the surface.

<Lead Length> edit box

Set the length of the lead viewed in the Align Camera.

<Align Z> edit box

Set the height for recognition. Based on the component surface, if the top is to be

recognized, set - value and if the bottom is to be recognized, set + value.

<Option> group

Set the align option data.

<Area Margin> edit box

Set the limit for the image to be off the center of the screen when the component

is recognized. For example, if this value is 5mm, the component image should be

within 5mm of the center of the screen.

<Tolerance Tangential> edit box

Set the allowance tolerance when the lead is pushed to the side. Set it as a

percentage of <Lead Pitch>.

<Threshold> edit box

When there is a pre-treatment process for component recognition and the gray

level image is converted into binary, it is the value used as the criteria to

determine black and white.

The value range is 0 – 255(0: black, 255: white), and this value serves to

differentiate the component from the background. When the set value is 0, the

value is set automatically during component recognition.

<Auto> check box

Check it to set the <Threshold> value automatically.

<Binary> button

Displays the binary image of the component on the Vision Monitor screen.

<Repeat Angle> edit box

In the case of the work needed for high precision, this re-recognizes and pick-up

and placement of the component by performing correction according to the

vision recognition result. For example, if o.i is inputted for the repeat angle, it

corrects the angle after vision recognition and re-recognizes it. If the result of re-

7-24

Part Registration

7-25

recognition is greater than 0.1 it recognizes the angle after correcting the angle. It

repeats this until the result of the recognition become less than 0.1. When the

value becomes 0.1, it pick and place the component (it tries recognition up to 4

times)

<Auto Teach> button 

Automatically finds out the component align data. When auto teach is successful, the

following message box is displayed.

* The “Auto Teach” is supported only for SOP, QFP and PLCC.

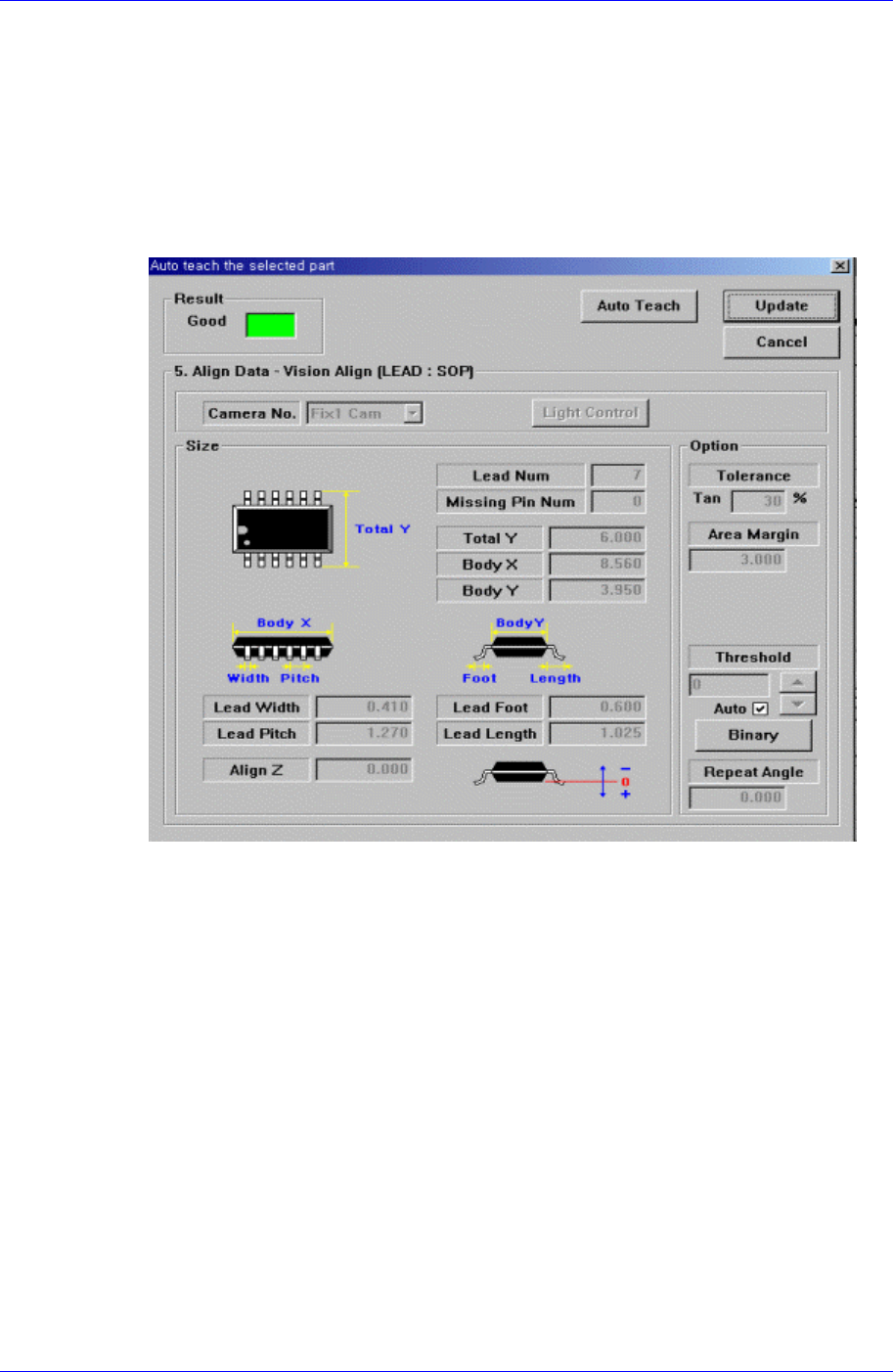

Figure 7-16. “Auto Teach the selected part-Good” message box

<Result> 



Displays the success or failure of Auto Teach.

<Auto Teach> button

Executes Auto Teach.

<Update> button

Saves the component align data obtained by Auto Teach and closes the message

box.

<Cancel> button

Closes the message box without saving the data obtained by Auto Teach.

When Auto Teach fails, the following message box is displayed.

Samsung Component Placer CP45FV Series Administrator’s Guide

Figure 7-17. “Auto Teach the selected part-Bad” message box

The same as the Figure 11-26, but the <Update> button is inactivated.
