19.1. Production Information Management

19.1.1. Plc. Info [F8]

Displays placement operation data. When “Plc. Info” submenu is clicked on, the

following dialog box is displayed.

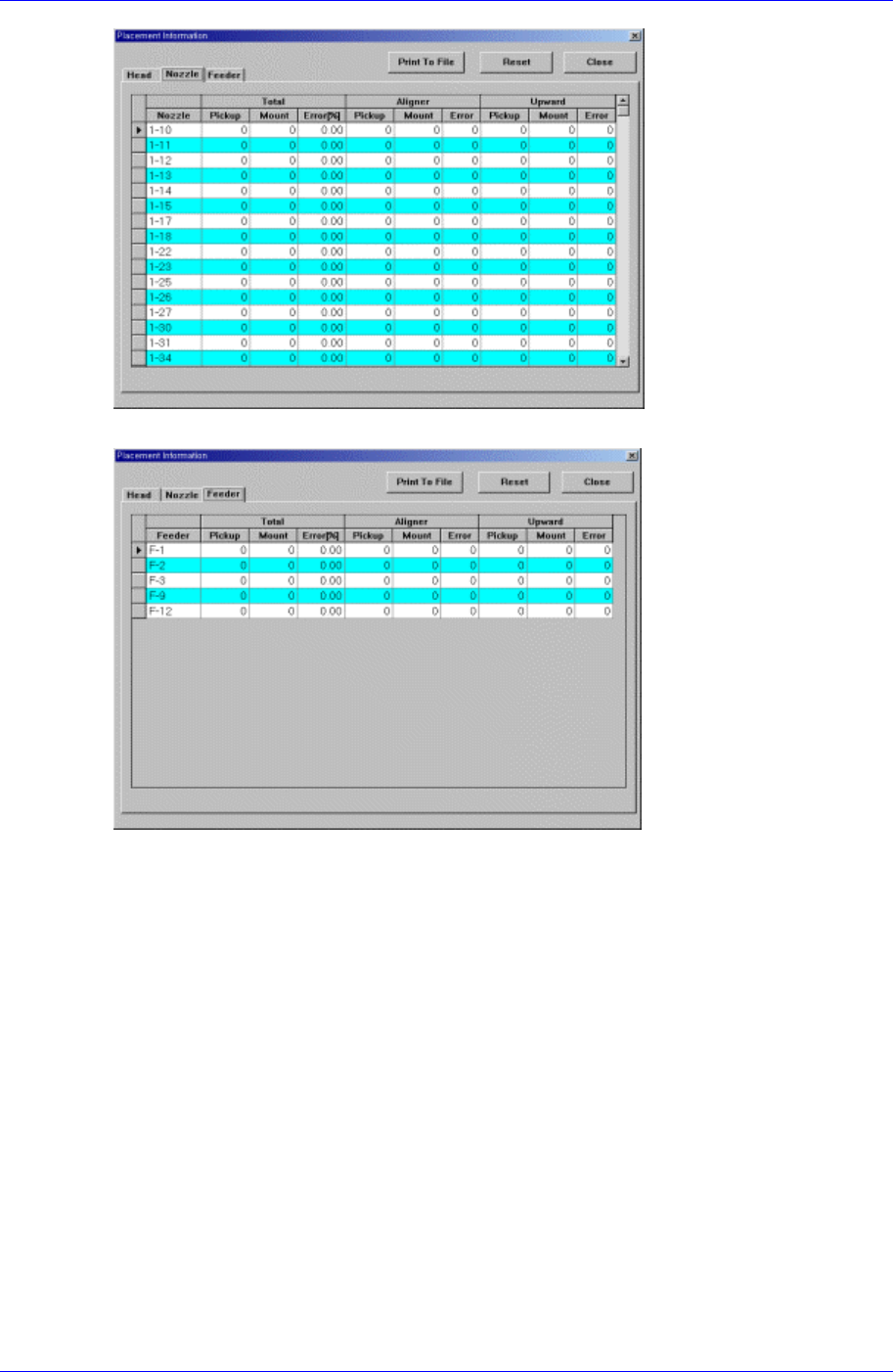

<a. placement information for each head>

Samsung Component Placer CP45FV Administrator’ Guide

<b. placement information for each nozzle>

<c. placement information for each feeder>

Figure 19-1. “Placement Information” dialog box





<Head> Tab screen

Displays the operation data for each head.

<Head No> column

Displays the head number.

<Total Pickup> column

Displays the total number of components picked up by the corresponding head.

<Total > column

Displays the total number of components placed by the corresponding head.

<Total Error> column

Displays the rate of erroneous placing of the components picked up by the

corresponding head.

<Aligner Pickup> column

Displays the total number of components picked up by the corresponding head

and aligned by the aligner.
