Samsung Component Placer CP45FV Series Administrator ’ s Guide Use shortcut keys. When the command is underlined, press Alt + the underlined letter, and the cursor moves to that position or executes the comm and. For t…
Structure of MMI Menu
2-5
Sets the origin of each component of the machine.
Dump
Sets the data related to the Dump Box.
Tray
Sets the data related to the Tray Feeder.
Camera
Sets various data on the Camera and executes camera calibration.
Preference
Sets various options necessary for machine operation.
Device
Manages data related to the Tape, Stick, and Nozzle.
2.1.2.2.6. ANC menu tool-bar
Register various information on ANC(Auto Nozzle Changer).
2.1.2.3. Methods for selecting a command

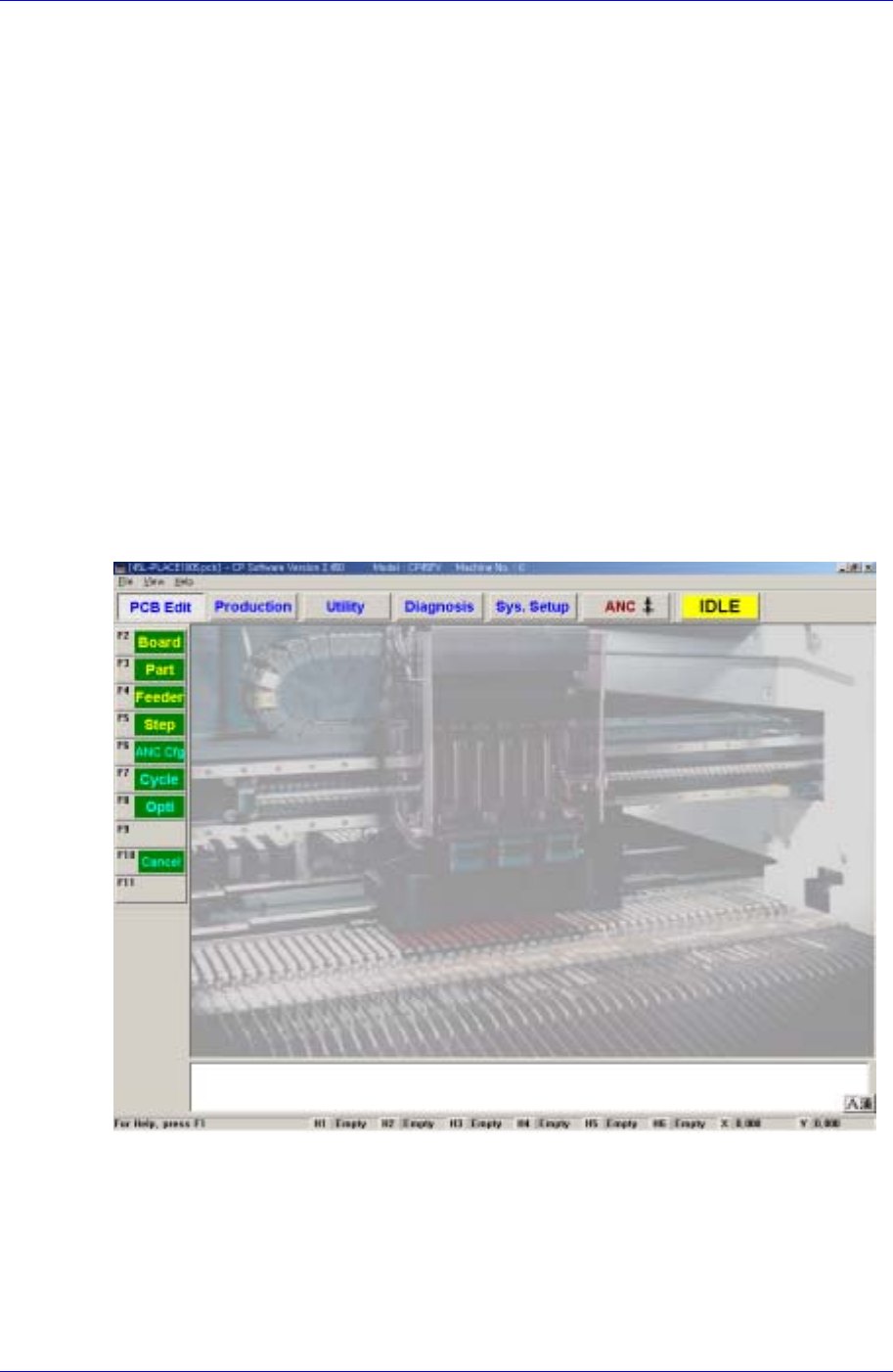

Figure 2-2. MMI main screen
The methods for selecting a command are as follows;
When the icon is displayed, click on the desired icon.
Display pull down menu and click on the command.
When the pull down menu is displayed, enter the underlined letter of each command
using the keyboard.
Samsung Component Placer CP45FV Series Administrator’s Guide
Use shortcut keys. When the command is underlined, press Alt + the underlined letter,
and the cursor moves to that position or executes the command.
For the command that is marked Ctrl (or Alt)+□ after the pull down menu command,
shortcut keys can be used. The shortcut key is a method to select a command directly
without using the cursor by pressing Ctrl (or Alt) key together with the designated key
simultaneously. In this manual, shortcut key is indicted by a “[ ]” after the command.
Example: New [Ctrl+N]
Memo
2-6
File Menu
Chapter 3. File Menu
3-1
The <File> menu is composed of the following six command submenus: New, Open,
Save, Save As, Merge Part Library, and Exit.
Figure 3-1. File Menu and Submenus
Caution
Except the PCB file, deleting or moving a system file or
data file arbitrarily could lead to the operation failure of
MMI program.
Except the PCB File, do not delete or remove a system
file or data file arbitrarily.
