Feeder Setup

8-5

<Move to Fix Camera> button 





It is activated only when the corresponding component is aligned by the vision

camera and the align camera is the fix camera. When this button is clicked on,

the head block is moved to the fix camera..

<Part Align> button

Executes alignment of the corresponding component.

<Dump> button

Dumps the corresponding component to the dump box.

<Close> button

Closes the dialog box.

<Edit Part Info> button

Shows the Part Edit dialog for the corresponding component.

<Slot Move> button

Select whether to move the selected device by slot or by slot with tape feeder

installation. Whenever this button is clicked on, “Slot Move” and “Feeder Move”

alternates.

button

If <Slot Move> is set to “Slot Move”, moves the selected device to the slot on the

previous line of the current line in the grid.

If <Slot Move> is set to “Feeder Move”, moves the selected device to the slot on the

first line with tape feeder installation among the lines before the current line in the

grid.

button



If <Slot Move> is set to “Slot Move”, moves the selected device to the slot on the

next line of the current line in the grid.

If <Slot Move> is set to “Feeder Move”, moves the selected device to the slot on the

first line with tape feeder installation among the lines after the current line in the grid.

<Pusher U/D> button 

Moves up or down the air pressure cylinder in the slot on the current line in the grid.

When the feeder driving cylinder is on, the driving lever of the feeder is lifted, and

the shutter at the top of the feeder opens. Pickups point teaching is executed in this

state.

Samsung Component Placer CP45FV Series Administrator’s Guide

<2Pt. Teach…> button 

When teaching the tape feeder pickups point, finds the center point by teaching two

corner points at opposite angles of the pocket containing the component. When this

button is clicked on, the following dialog box is displayed.

Figure 8-4. “Feeder :2 point teaching in the Feeder Base” dialog box





<1. Teaching Points> group

Set the position of two corner points to find the center point.

Teach 1st point: Set the first point.

Teach 2nd point: Set the second point.

Center point: Finds the center point from the two corner points and displays it.

<2. Teach> group

Used to move the head assembly to the designated position by rotating the

driving shaft of the X and Y-axes motors or obtain the current position of the

shafts of the X and Y-axes motors.

<Device> combo box:

Selects the corresponding device to move the head assembly by rotating the

driving shafts of the X and Y motors or obtains the current coordinate of the

device to be selected. Available devices are as follows;

Move Cam: Selects Teaching camera.

Head1: Selects Head1.

Head2: Selects Head2.

Head3: Selects Head3.

Head4: Selects Head4.

Head5: Selects Head5.

Head6: Selects Head6.

Beam: Selects Beam.

<Move> button:

Moves the head assembly by rotating the shafts of the X, Y-axes driving

motors using the device selected from the <Device> combo box. “Move”, the

8-6

Feeder Setup

8-7

cell in the grid corresponding to the desired position must be clicked on.

<Get> button 



Reads in the current position of the XY axis of the device selected in

<Device>. Before executing “Get”, the cell in the grid corresponding to the

desired position must be clicked on.

<OK> button

Sets the obtained center point as the new pickups point and closes the dialog box.

<Cancel> button

Ignores the obtained center point and closes the dialog box.

8.1.2. Stick Feeder

Install stick feeder and set data on the stick feeder.

When “Stick Unit” is selected, the initial screen looks as follows.

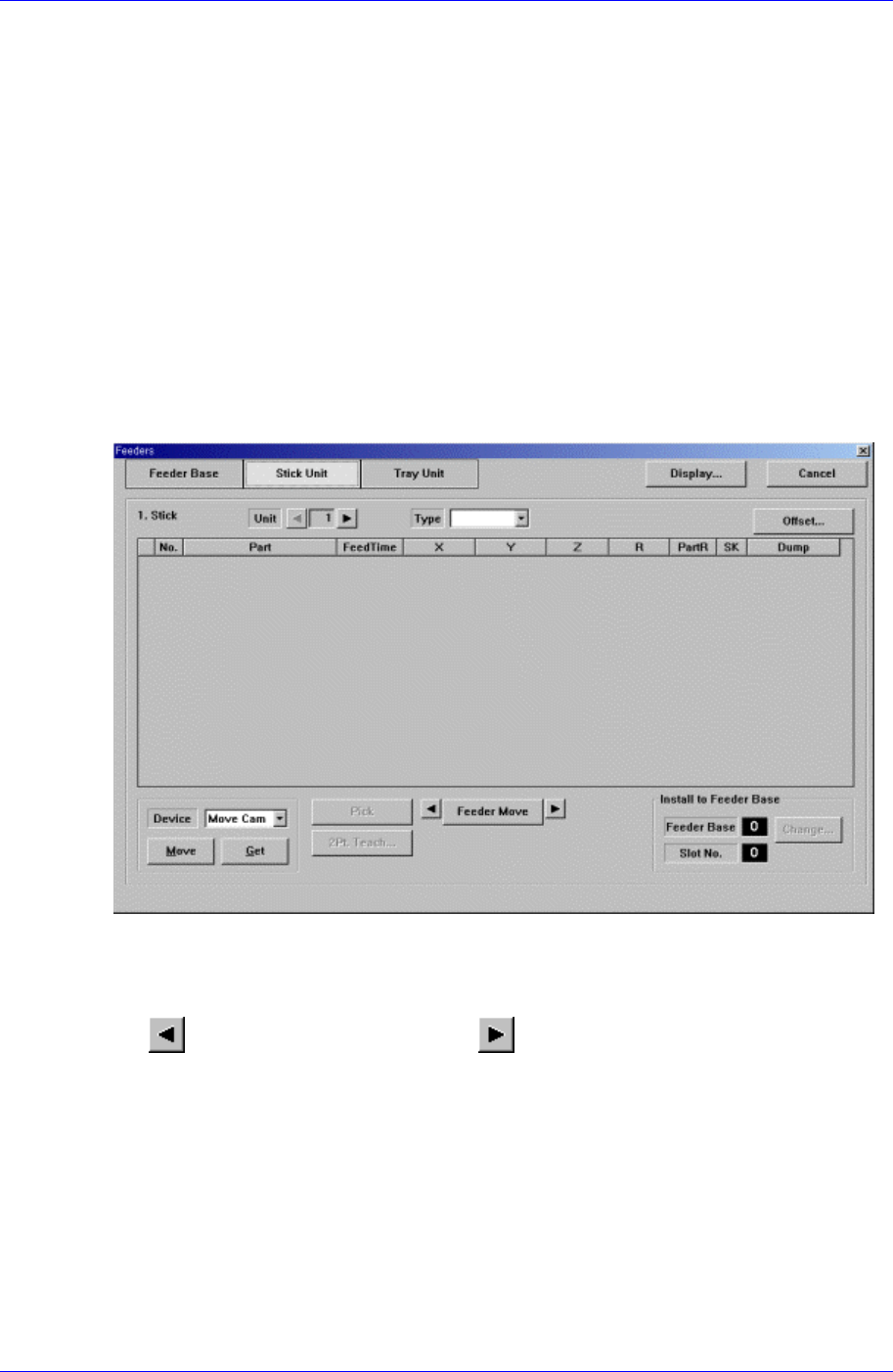

Figure 8-5. “Stick Unit” dialog box

<Unit> group 

Select the stick unit to edit.

button selects the previous unit, button selects the next unit.

<Type> combo box 

Select the type of stick unit to install. Available types are as follows.

Stack Stick: Stick unit where the same type of components are installed vertically.

Multi Stick: One or many types of components are installed horizontally.

When the type is specified, the following message box is displayed. To install the

specified type stick unit, click on the <Yes> button.
