View Menu
C
Chapter 5. Help Menu
The <Help> menu has ‘About CP45…’ command.
Figure 5-1. Help Menu and Submenus
5.1. About CP45…
When the <About CP45…> command is selected, the following message box is displayed.
Figure 5-2. Information on the present machine
Board Definition
Chapter 6. Board Definition
6-1
The <PCB Edit> menu is composed of the eight submenus: Board, Part, Feeder, Step,
ANC Cfg, Cycle, Opti, Cancel.
Used to edit data for the placement of components on a PCB (Printed Circuit Board ).
When a submenu of the <PCB Edit> menu is selected, the corresponding dialog box is
displayed. While the dialog box corresponding to the submenu is displayed, if the menu is
selected again, the corresponding dialog box is activated. Click on the button on the top
right to close the dialog box.

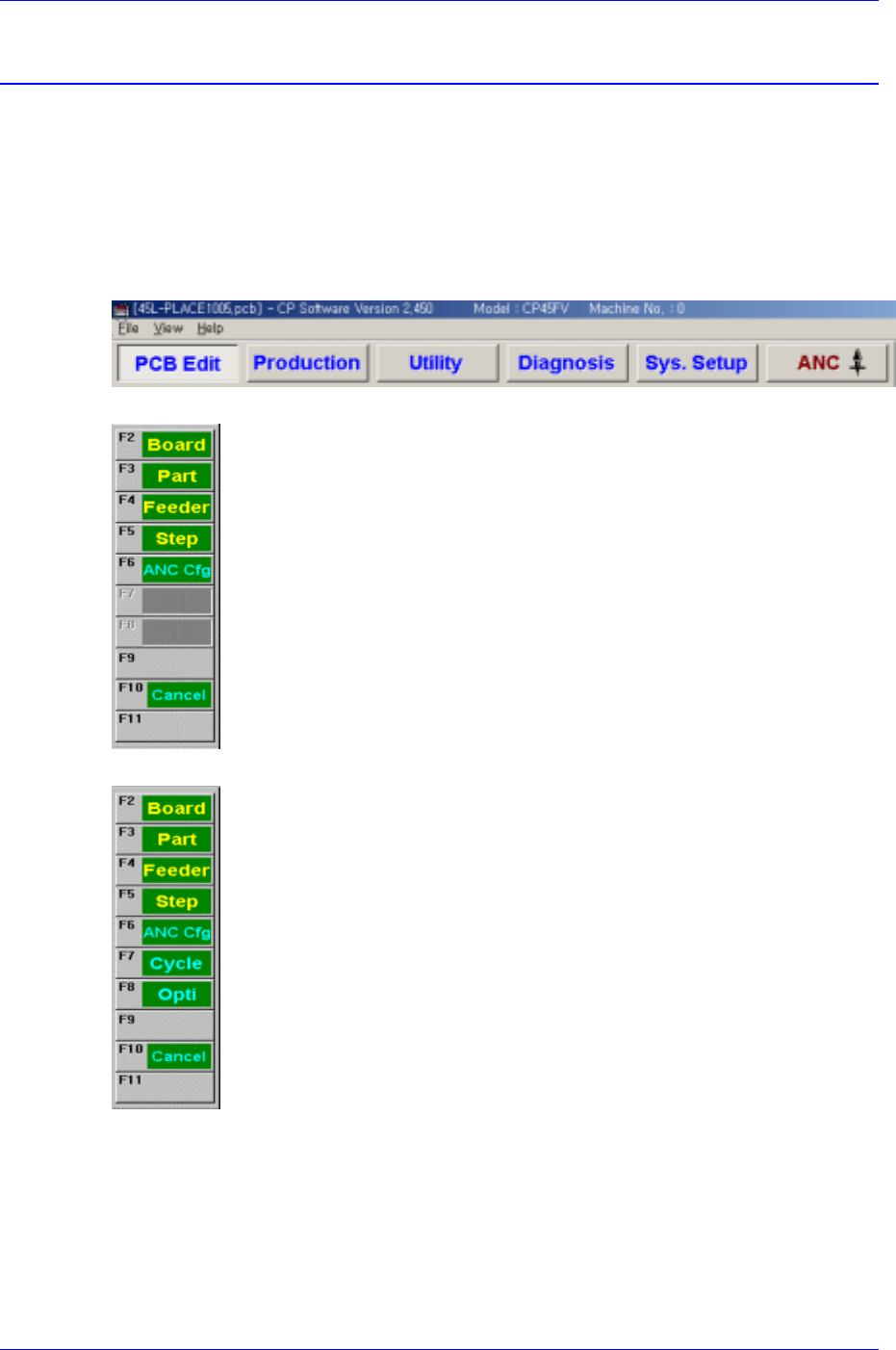

Figure 6-1. When the PCB Edit command is selected
Figure 6-2. Submenus of the PCB Edit command(Initial status)
Figure 6-3. Sub menus of the PCB Edit command(Activated status)
Use the <Board> command to edit the PCB (Printed Circuit Board) setup only. When this
button is selected, the following dialog box is displayed.
