Samsung Component Placer CP45FV Administrator’ Guide
5. Click the <Update> button to reflect the changed value.
<Communication> group

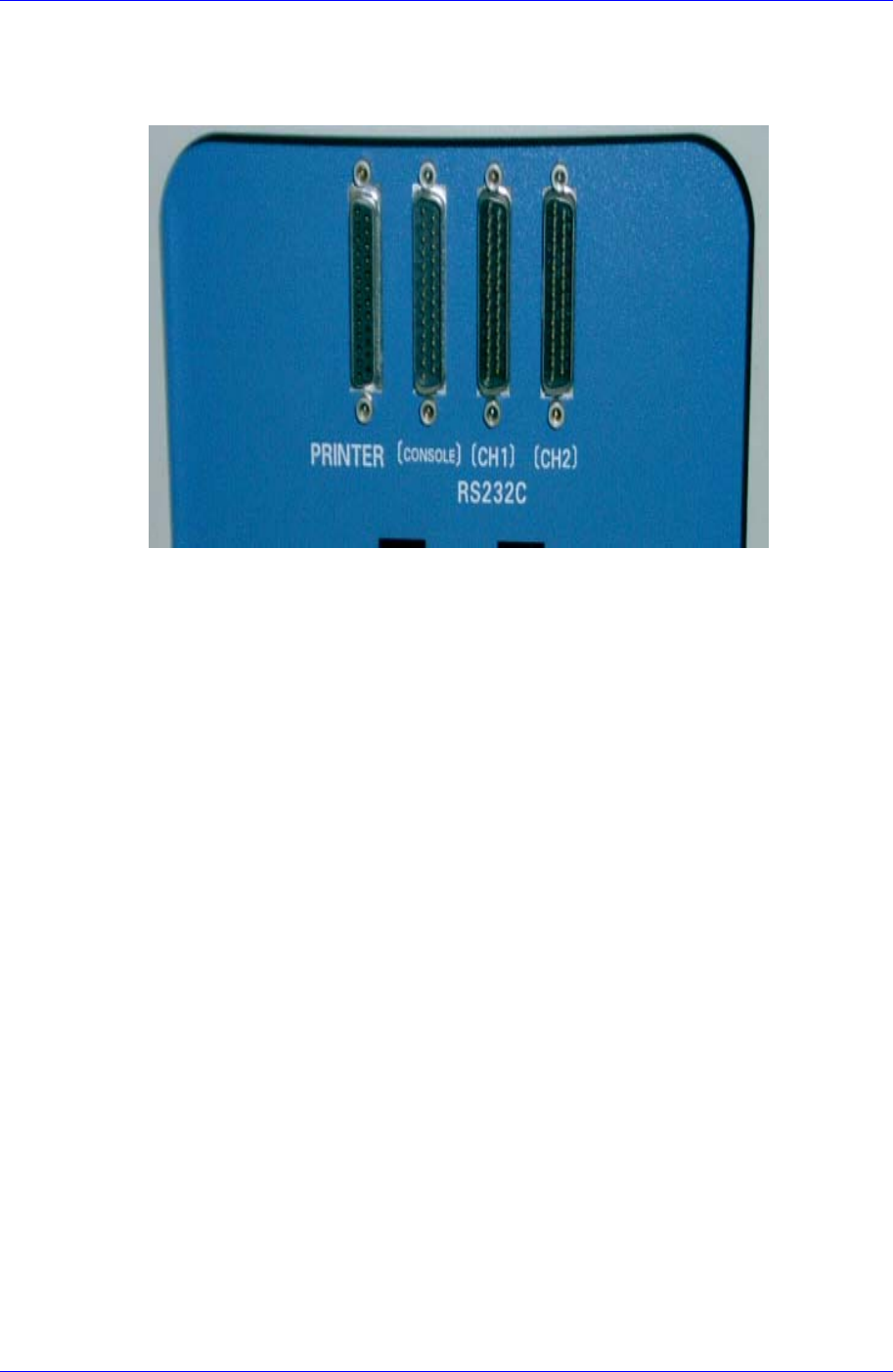

Set the data related to RS-232C communication.
<Channel> combo box
Select the RS-232C communication channel. Two channels are available for the
machine.
<Comm. ID> combo box
Select the communication ID. Available IDs are 1 – 3. Perform the setups in
order to avoid duplication.
<Not Usable Lane> group
To use the selected tray feeder unit, set the feeder base unit and slot taken up by the
corresponding tray.
<Feeder Base> combo box
Select the feeder base. In the case of the CP45FV model, available feeder bases
are Front( front Feeder Base), and Rear( rear Feeder Base).
<Lane> edit box
Set the slot of the feeder base.
<Fiducial> button
At the moment, it does not have a function.
<Device> combo box
Selects the corresponding device to move the head assembly by rotating the driving
shafts of the X, Y and Z-axes motors, move or rotate the spindle or obtain the current
coordinate of the device to be selected. Available devices are as follows;
Move Cam: Selects Teaching Camera.
Head1: Selects Head1.
Head2: Selects Head2.
Head3: Selects Head3.
Head4: Selects Head 4.
16-14
System Setup
16-15
Head5: Selects Head5.
Head6: Selects Head6.
Beam: Selects Beam.
<Move> button
Moves the head assembly by rotating the shafts of the X, Y and Z-axes driving
motors using the device selected from the <Device> combo box. At this time, the edit
box corresponding to the position to move to must be clicked on with a mouse.
<Get> button
Reads in the XY and Z axis of the device selected in <Device>. At this time, the edit
box corresponding to the position to be read must be clicked on with a mouse.
<Update> button
Transmits the set data to the machine and closes the dialog box.
<Cancel> button
Ignores the set data and closes the dialog box.
16.6. Dump [F7]
Sets the data on the dump box where the picked up components are dumped.
When this button is clicked on, the following dialog box is displayed.

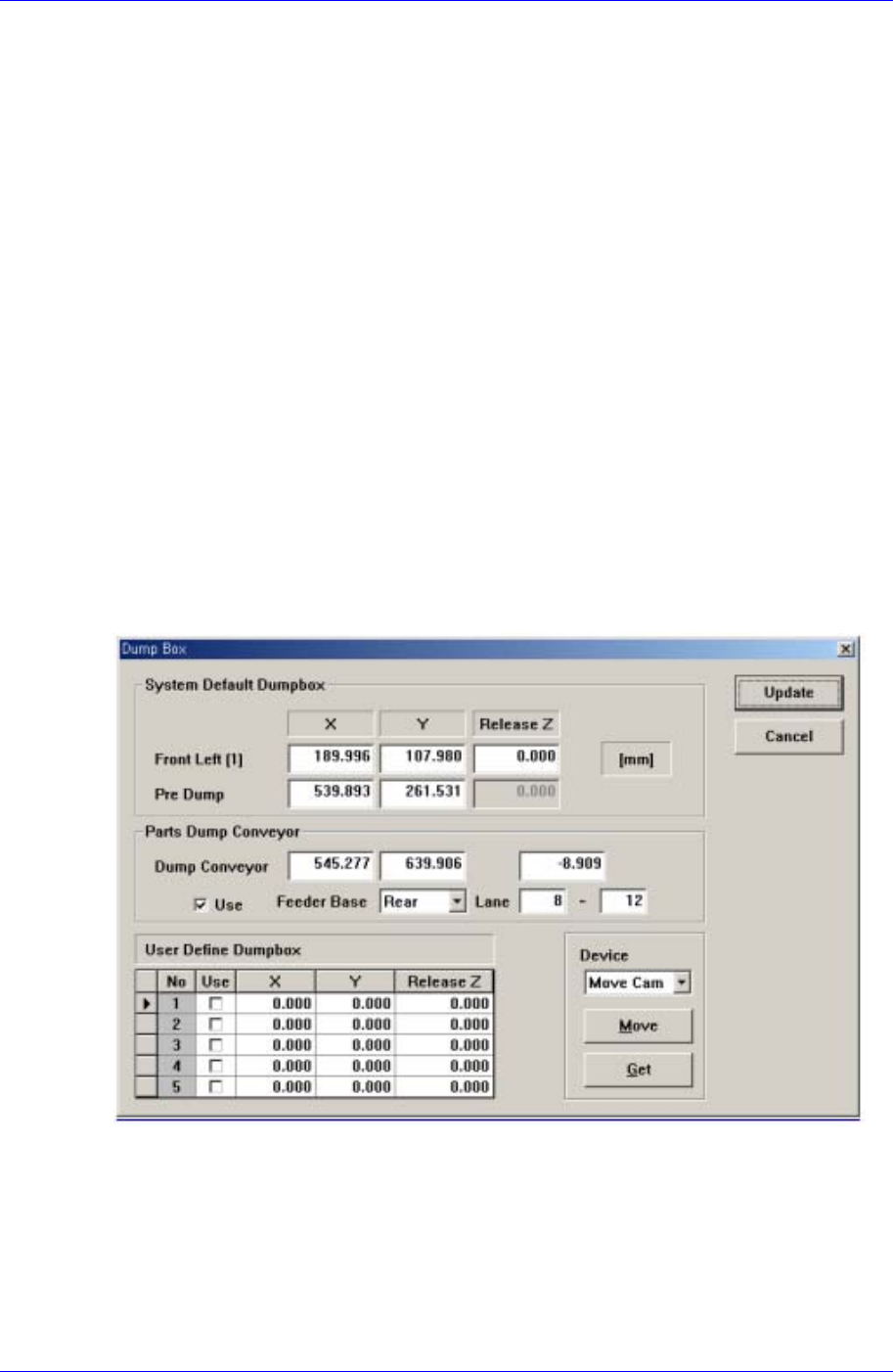

Figure 16-8. “Sys. Setup : Dump Box” dialog box
<System Default Dumpbox> group
Set the data on the system dump box provided by the System as a default. 2 system
dump boxes are installed on the conveyor guide located close to the front of the
machine as a default.
<Position X, Y – Front Left(1)> edit box
Set the position of the system dump box 1(Located on the left of the conveyor
Samsung Component Placer CP45FV Administrator’ Guide
guide).
<Position X, Y – Pre Dump> edit box
Set the position on which the head block stops before dumping.
<Release Z Height> edit box
Set the Z axis height of the head at the time of dumping.
<Part Dump Conveyor> group
The position of the part dump conveyor is set to default. If the position of the part
dump conveyor is needed to change, check <Use> check box and teach its new
position.
<User Define Dumpbox> group
Set the data on the user dump box installed by the user. The maximum number of
dump boxes that can be set by the user is 5.
The User Dump Box, which is installed by the user at his/her discretion, is used when
dumping components at the User Dump position in case the components to be
dumped are expensive or need to be classified or when a component error occurs.
Memo
Once the User Dump Box is setup, if the dump item of the feeder for the corresponding
components is not set as “User Dump” in the Feeder dialog box, the front left position is
set as the default value.
The setup procedure of the User Dump Box is as follows;
1. Select the <Use> check box and move the head to the place where the user dump
box is installed using the teaching box.
2. Select the “Move Cam” in the <Device> combo box, and align the center of the
user dump box on the cross hair center of the Move Camera (Fiducial Camera)
shown on the vision monitor accurately using the teaching box.
3. Click the <Get> button to enter the current coordinate.
4. Click the <Update> button to reflect the changed value.
After updating, select the dump item for the feeder supplying the component that
uses the user dump as “User Dump”.
<Grid - No> column
Displays the user dump box number.
<Grid - Use> column
Set whether to use the corresponding user dump box or not.
<Grid - X> column
Set the X position of the corresponding user dump box.
<Grid - Y> column
Set the Y position of the corresponding user dump box.
<Grid – Release Z> column
Set the Z axis height of the head at the time of dumping to the corresponding user
dump box.
16-16
