Utility

18-5

Moves the selected file to the specified directory.

<Delete> button 



Deletes the selected file.

<Rename> button

Renames the selected file

<Clear> button

If the file size of a *.log file is very big, deletes the data saved previously.

18.5. Bypass[F8]

The <Bypass> command is used to bypass a PCB on the conveyor without carrying out

placement operation. When this command is selected, the following dialog box is

displayed and shows it is in the PCB Bypass status.

If the head is above the conveyor, the PCB sensing sensor gets affected. Therefore, move

the head out of the conveyor and execute the command.

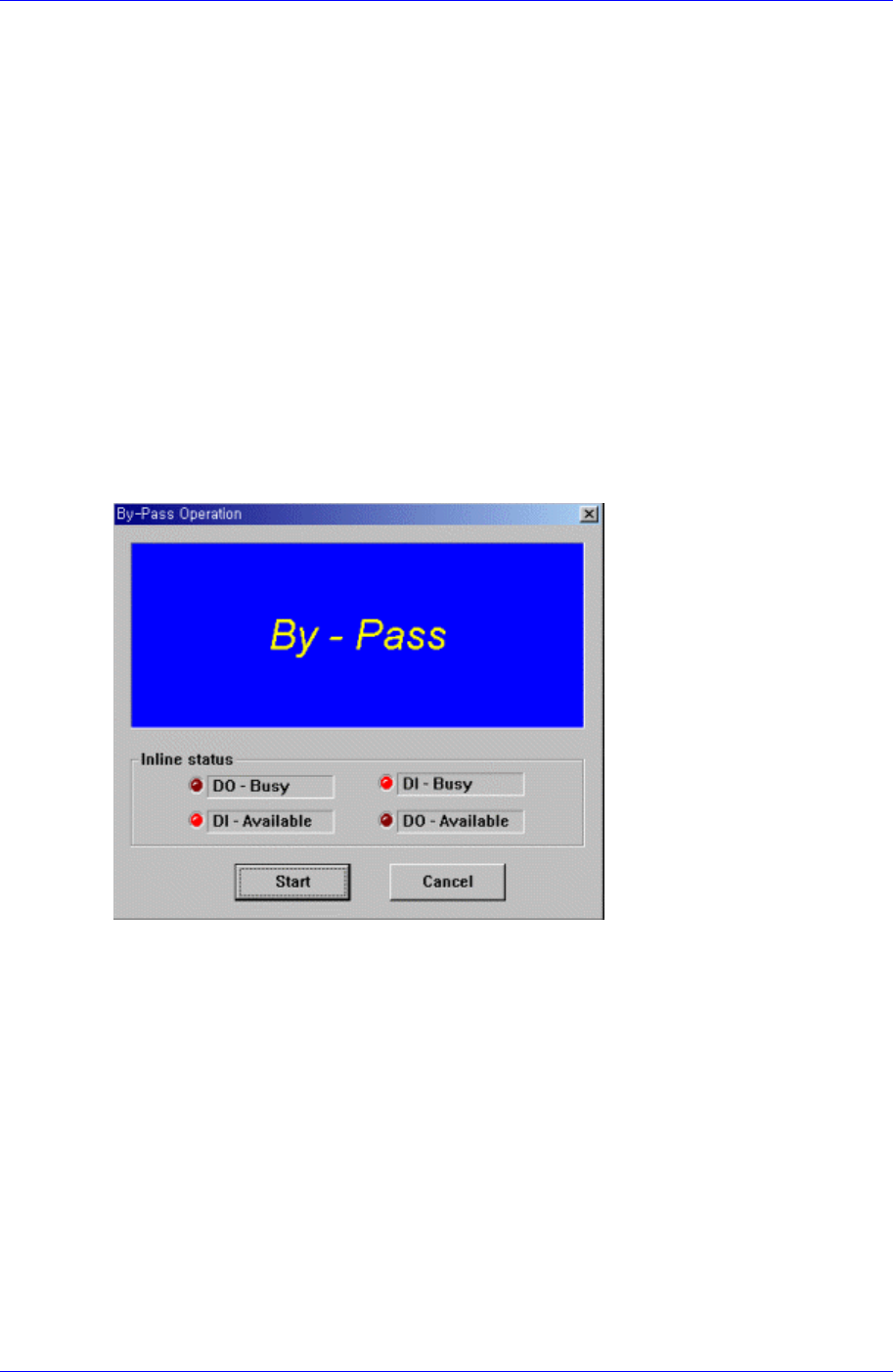

Figure 18-7. . “By-pass Operation” dialog box

When the <Start> switch on the main body of this machine is pressed, starts the PCB

bypass operation. When the <Stop> switch or <Reset> switch on the main body of this

machine is pressed, cancels the PCB bypass operation status and closes the dialog box.

Samsung Component Placer CP45FV Administrator’ Guide

18.6. WarmUp[F9]

The <WarmUp> command is used to warm up each axis after power supply. When this

command is selected, the following dialog box is displayed.

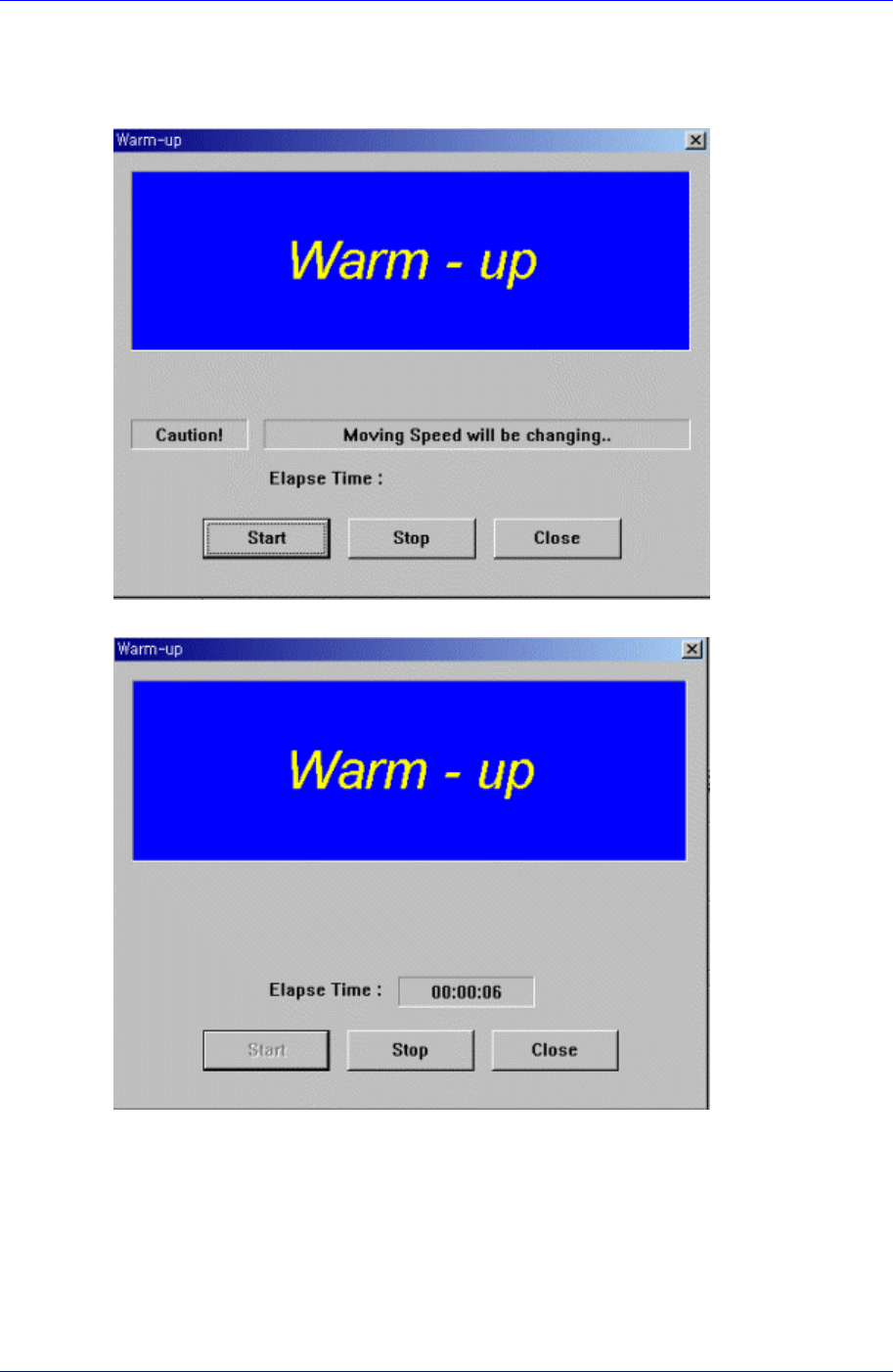

Figure 18-8. . “Warm-Up” dialog box

Figure 18-9. “Warm-Up” dialog box, After pressing the Start Button

<Start> button 



Starts the warm up operation. When this button is clicked on, starts the warm-up

operation and the elapsed time is displayed in the “Warm-up” dialog box. When this

button is clicked on again, stops the warm up operation and closes the “Warm-up”

dialog box.

<Start> button

18-6

Utility

18-7

When this button is clicked on, stops the <Warm-up> operation.

<Close> button 

Closes the dialog box.

Caution

To raise the level of placement precision, Warming UP

must be done.

To raise the level of placement precision, be sure to carry

out warm up before operating the machine.
