Samsung Component Placer CP45FV Administrator’s Guide
Occurs when placement cannot be performed properly due to an air blow and vacuum

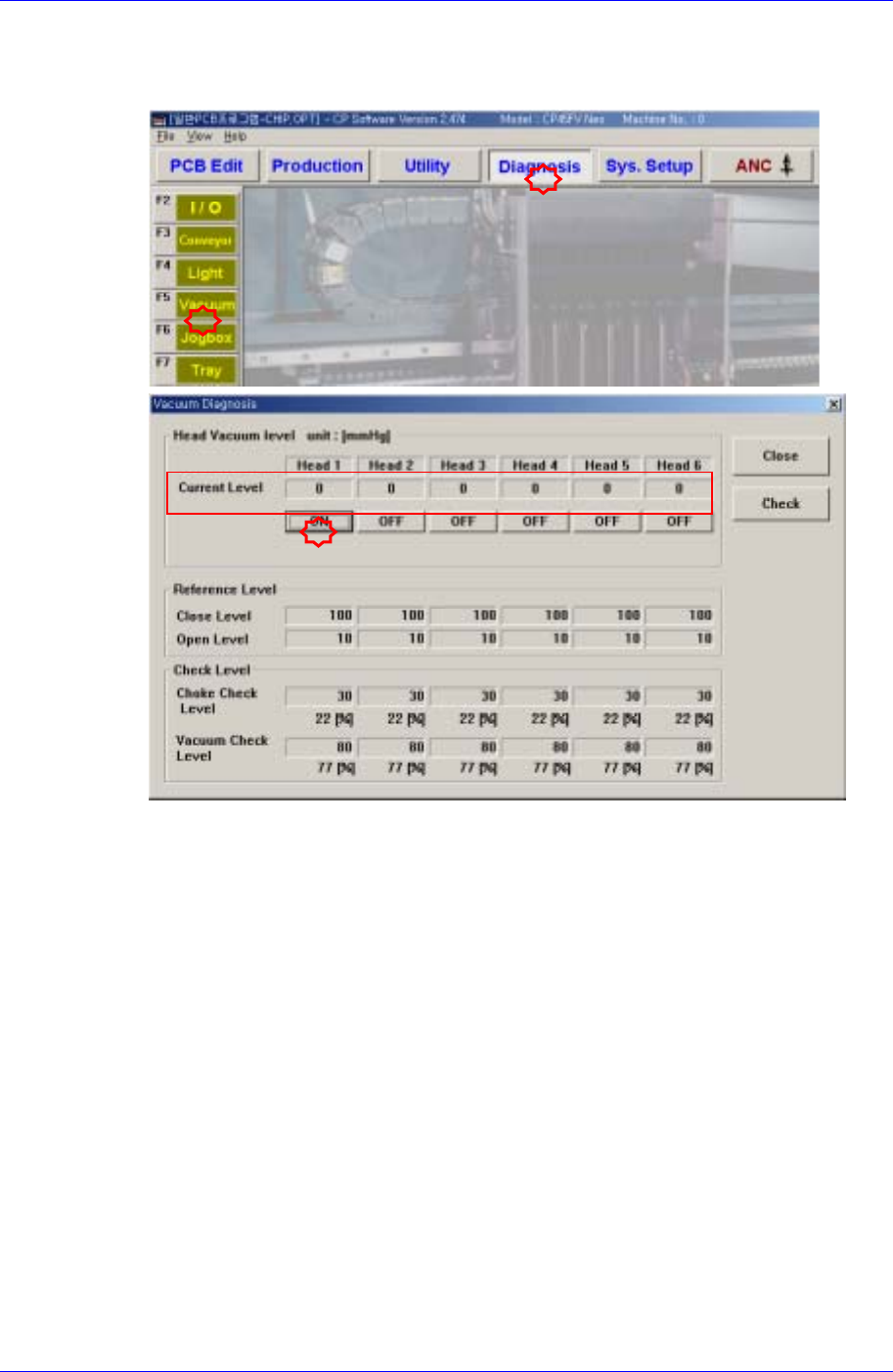

function problem with the specific head. Select the Vacuum submenu of the
Diagnosis menu to check the air blow and vacuum function.
Spindle problem of a specific head
The placement position may be distorted due to mechanical error of the specific head
spindle. In such case if the problem is found to have occurred due to a mechanical
error, the spindle must be replaced.
14-22
Calibration & Setup
