Diagnosis & Utility &
Production
Management
Diagnosis
Chapter 17. Diagnosis
17-1
The Diagnosis menu is composed of 6 submenus: I/O, Conveyor, Light, Vacuum, Jogbox,
and Tray.
This menu performs a module test on each part.
When a submenu of the <Diagnosis> menu is selected, the corresponding dialog box is
displayed on the screen. While the corresponding dialog box of the submenu is displayed,
selecting the menu again activates the dialog box.

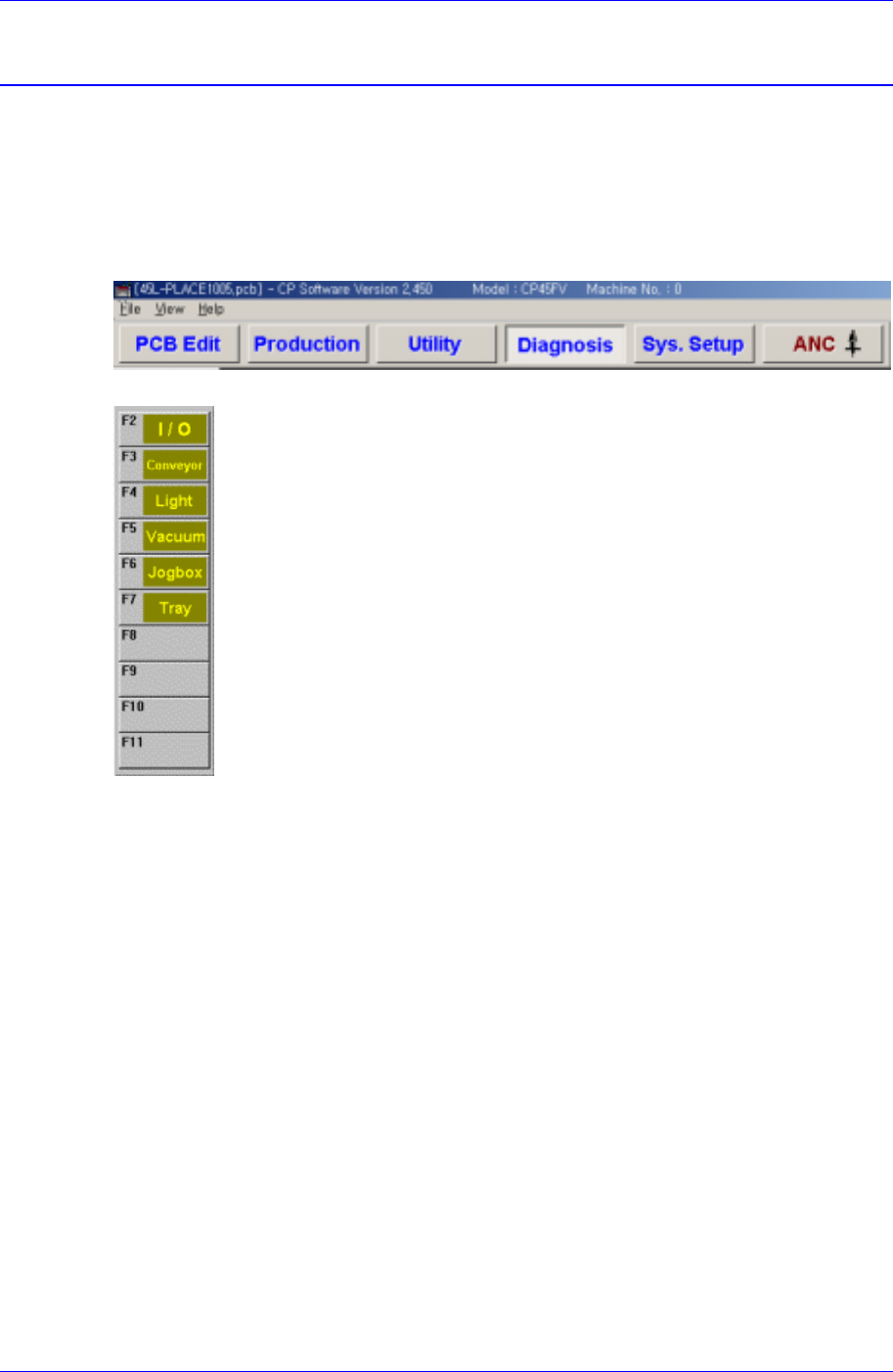

Figure 17-1. When the Diagnosis command is selected
Figure 17-2. Submenus of the Diagnosis command
17.1. I/O [F2]
The <I/O> command sets or displays the status of various I/O (input/output) sensors on
the machine.
When this button is clicked on, the following dialog box is displayed.
