Samsung Component Placer CP45FV Series Administrator ’ s Guide The component that has already been re gistered in the Local Part DB is registered automatically as can be seen above. Click the <New Part…> button and…
Step Programming
9-11
When the component imported from the CAD data is not registered, the
unregistered component must be registered.
As for the component displayed in the Unregistered Part List containing the
component information being used in the Place Data, which is not registered in
the machine database, register it to the PCB Part List.
Samsung Component Placer CP45FV Series Administrator’s Guide
The component that has already been registered in the Local Part DB is
registered automatically as can be seen above. Click the <New Part…>
button and execute the <Part Edit> dialog box.

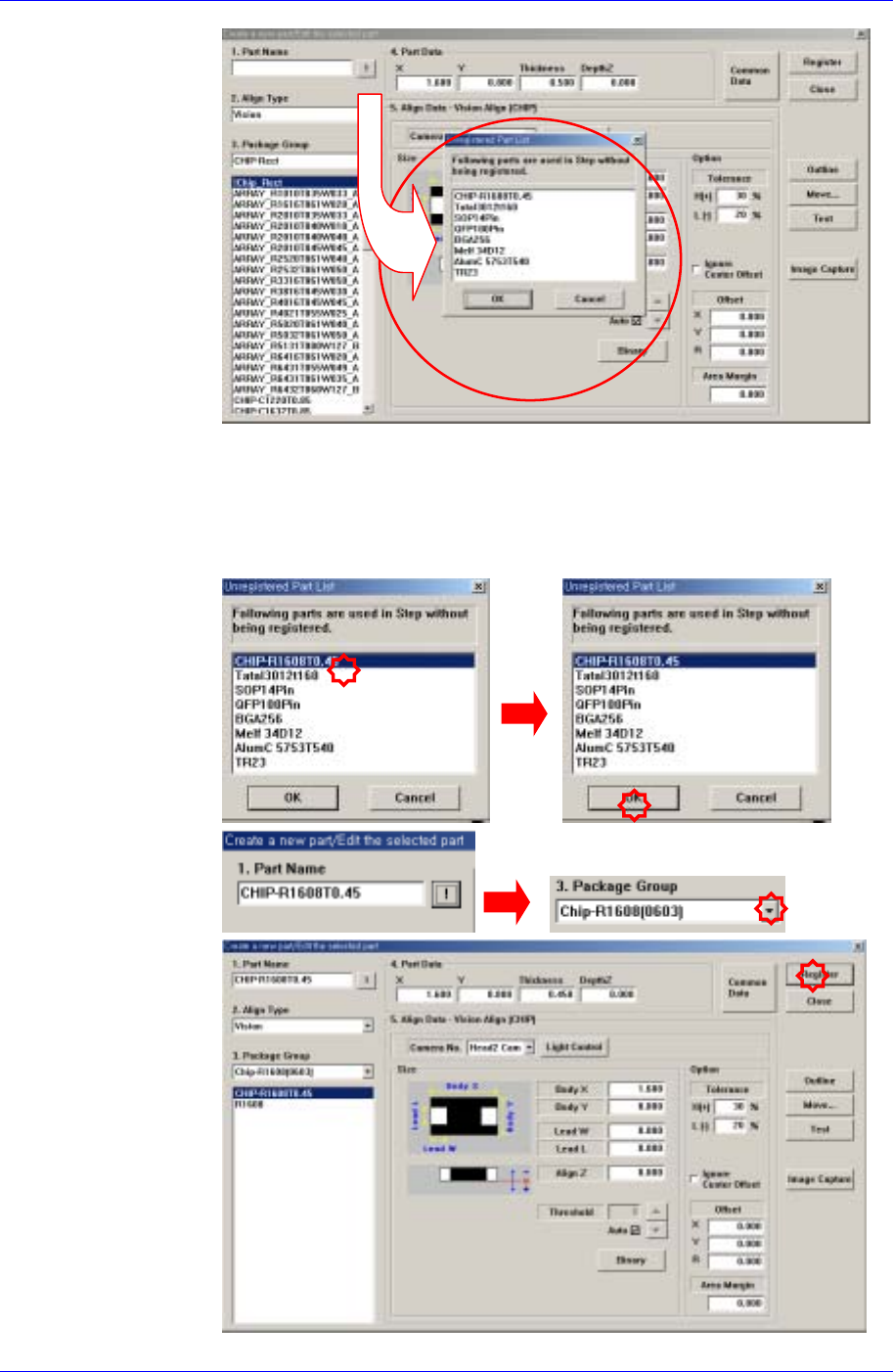

When the
button is clicked, the unregistered part list is displayed as
shown in the following figure.
9-12
Step Programming
9-13
When the <OK> button is clicked after selecting a component, the name of
the selected file is inputted in the <1.Part Name> edit box.
Select the <Package Group> corresponding to the selected component and
revise the component profile according to the selected component.
Click the <Register> button to register the component to the PCB Part List.
