System Setup
16-7
the Head1 R column of the Head Device Offset dialog box directly.
7. Select the corresponding camera to calibrate from the Camera Setting dialog
box and perform calibration for the heads from Head2 to Head6 in the same
manner..
8. Once the above procedure is completed, click the <Update> button to apply
the changed value.
<Other Device> group
Set the offset values for the devices other than the head.
<Camera#1 X> edit box
Set the offset value for Camera1.
<Camera#1 Y> edit box
Set the Y offset value for Camera1.
<Beam#1 X> edit box
Set the X offset value for Beam1.
<Beam#1 Y> edit box
Set the Y offset value for Beam1.
<Beam#2 X> edit box
Set the X offset value for Beam2.
<Beam#2 Y> edit box
Set the Y offset value for Beam2.
<Z Offset Measure Point> group
Set the X, the Y and the Z values for the Z Offset Measure Point of each heads.
<Detect Offset>button
Set the Offset values of each heads automatically.
<Update> button
Transmits the set data to the machine and closes the dialog box.
<Cancel> button
Ignores the set data and closes the dialog box.
Samsung Component Placer CP45FV Administrator’ Guide
16.3. Mount Offset [F5]
Sets the Mount Offset value of the machine.
When this button is clicked on, the following dialog box is displayed.
Figure 16-5. “Sys. Setup : Mount Offset Setting” dialog box
16.4. Origin [F5]
Sets the origin of each factor. When this button is clicked on, the following dialog box is
displayed.
Figure 16-6. “Sys. Setup : Origin Position” dialog box
<PCB Origin Offset> group
16-8
System Setup
16-9
Set the offset value between the machine origin and the PCB board origin.
<PCB Stop Point> edit box
Set the PCB board origin.
The method to setup the PCB Stop Origin is as follows;
1. Align the conveyor width and click the <PCB In> button to place the
calibration plate on the conveyor.
The PCB that is completely rectangular may be used instead of the
calibration plate.
2. Execute the Origin Position dialog box in the System Setup menu.

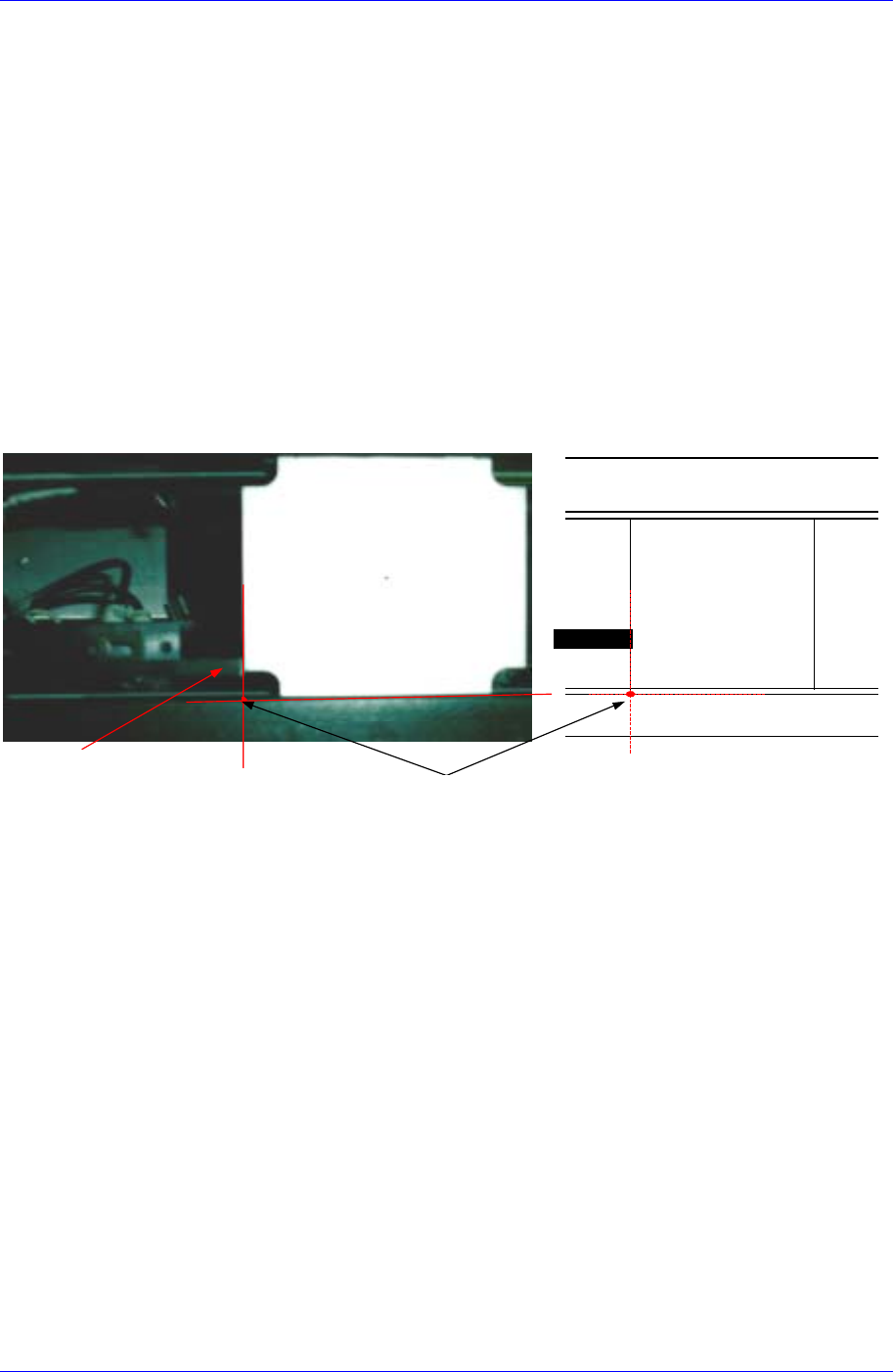

3. In order to shift the Move Camera to the position in the following figure,
select the <PCB Stop Point> edit box first with the mouse and click the
<Move> button after selecting the “MoveCam” in the <Device> combo box.
- 1 -
Stopper
Vision
Plate
Stopper
Vision
Plate
Teaching
Point
Conveyor후면
Conveyor전면
4. Move the head using the teaching box to align the teaching point with the
cross hair center of the Move Camera (Fiducial Camera).
Since the conveyor belt is seen from the gap between the conveyor and the
calibration plate, the surface where the conveyor and the calibration plate
contact appears as two lines as shown in the above figure. Perform teaching
accurately keeping this in mind.
5. Select the <PCB Stop Point> edit box using the mouse and click the <Get>
button to enter the coordinate of the current position in the <PCB Stop
Point> edit box.
6. Once the normal procedure is completed, click the <Update> button to apply
the changed value.
<Feeder Base Origin Offset> group
Set the data on feeder base.
<Select> list box
Select the front or rear feeder base.
<21th 8mm Tape Pickup Point> edit box
To set the feeder base origin, install a 8mm tape feeder in the 21st slot of each
feeder base and set the feeder base origin by using the pickups point of this
