Samsung Component Placer CP45FV Series Administrator’s Guide

with a device attached on the conveyor.

Edge Fixer2: It is the same as the “Edge Fixer” method, but it is a method

of pushing twice from the side.

None: It uses only the PCB clamping method for fixing a PCB.

<Wait Type> combo box 





Selects the position where the head assembly is waiting when the PCB is loaded

onto the working area.

Auto: the machine determines the waiting position automatically.

System: waiting at the position specified by the system.

Set the minimum distance between the top of the PCB and the end of the head (if

a nozzle is attached, to the end of the nozzle) during PCB operation.

<Array…> button

If the Array PCB is more than one, set the offset value between the origin of each

Array PCB and the placement origin of PCB. When this button is clicked on, the

following dialog box is displayed.

Figure 6-8. “PCB Array” dialog box

<1. Array> group 



Set the offset value of Array PCB from the “Place Origin” of the PCB.

<2. Teach> group

Used to move the head assembly by rotating the shafts of the X, Y and R-axes

driving motors of the machine, rotate the spindle or obtain the current shaft

locations of the X, Y and R-axes driving motors.

6-6

Board Definition

6-7







<Device> combo box

Selects the corresponding device to move the head assembly by rotating the

driving shafts of the X, Y and R-axes motors, move or rotate the spindle or

obtain the current coordinate of the device to be selected. Available devices

are as follows;

Move Cam: Selects Teaching Camera.

Head1: Selects Head1.

Head2: Selects Head2.

Head3: Selects Head3.

Head4: Selects Head4.

Head5: Selects Head5.

Head6: Selects Head6.

Beam: Selects Beam.

<Move> button

Moves the X, Y and R driving axes to the coordinate of the device that is

selected from the <Device>. Before executing “Move”, the cell in the grid

corresponding to the desired position must be clicked on with a mouse.

<Get> button

Reads in the current position of the XY, and R axes of the device selected in

<Device>. Before executing “Move”, the cell in the grid corresponding to the

desired position must be clicked on with a mouse.

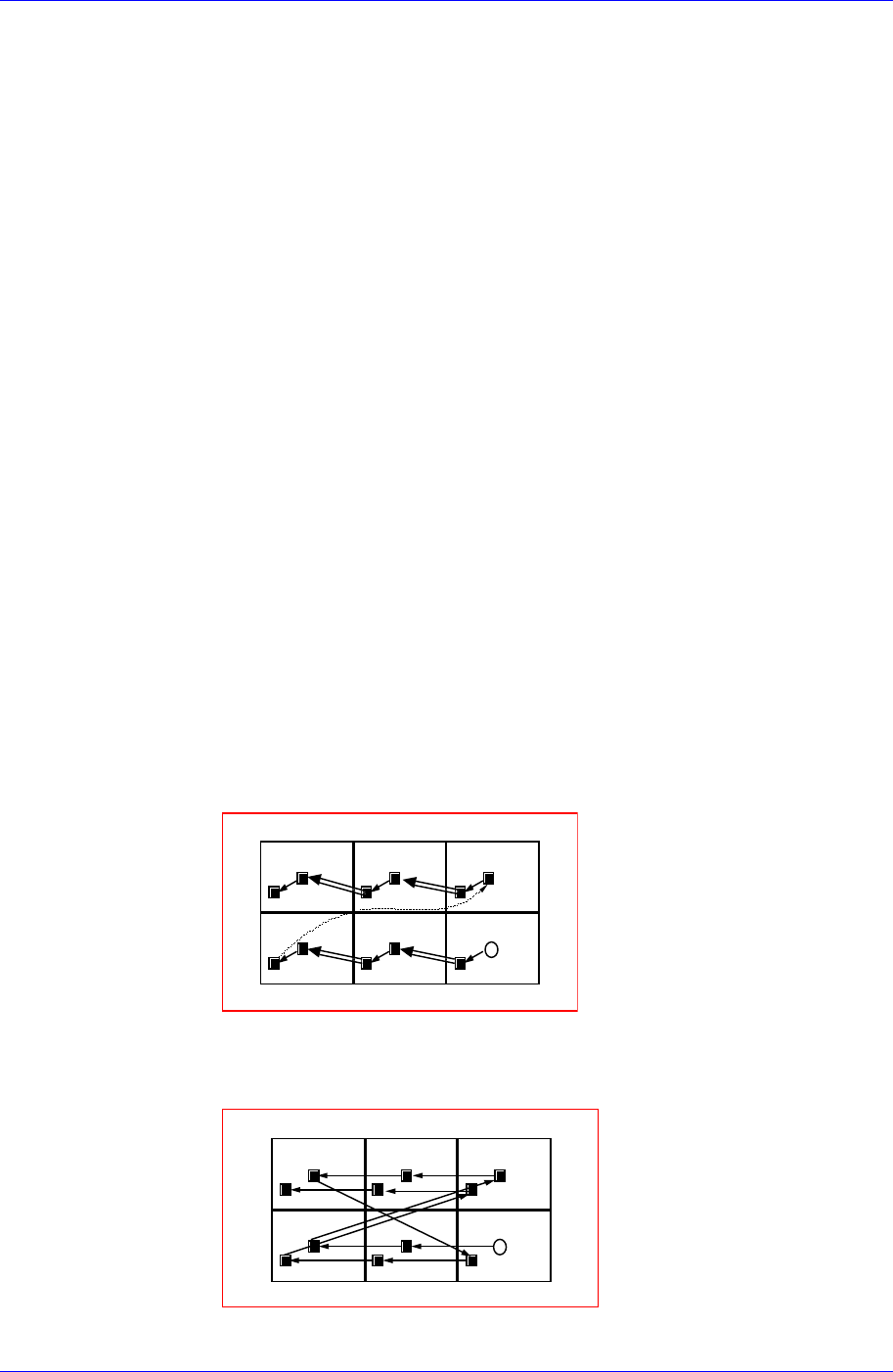

<3. Sequence> group

Select the Array PCB operation method.

<By PCB> option button

A method of completing one Array PCB operation and then executing the

next Array PCB operation.

<By Point> option button 

A method of completing an operation cycle to all array PCBs and then

executing the next cycle operation.

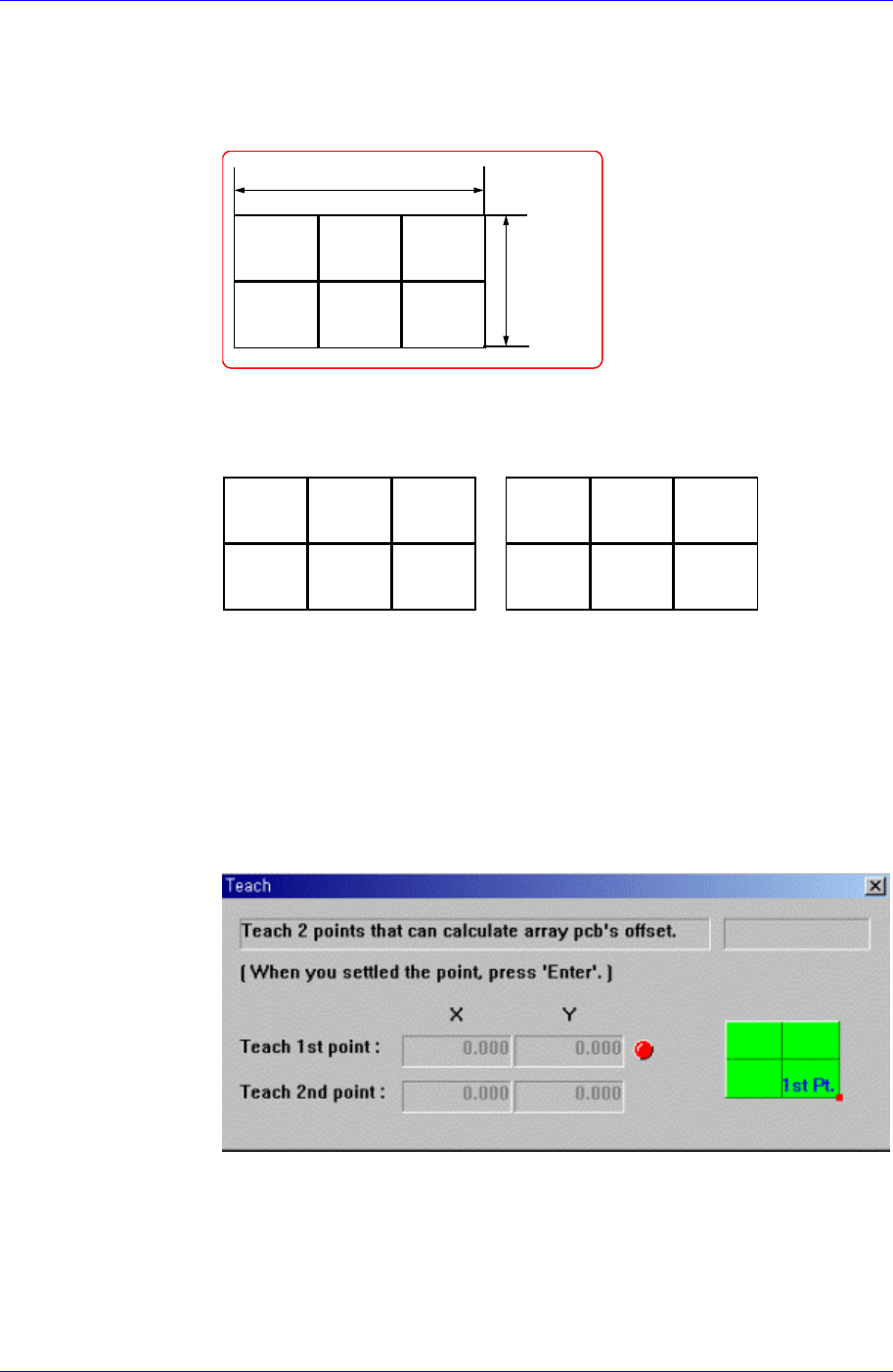

<4. Set Array (Regular Type)> group 

Samsung Component Placer CP45FV Series Administrator’s Guide

Initializes the Array PCB. This function sets the offset value of each Array PCB

automatically when the arrangement of array PCB is regular.

<Number> edit box group 

Enter the number of Array PCBs as follows.

X=3

Y=2

<Count Direction> option button group 

Select a method of numbering Array PCBs.

XDir

인경우

123

YDir

인경우

135

When the X Direction is selected When the Y Direction is selected

<Offset> edit box group 



This value is used to set the offset value of the origin of Array PCB

automatically. It sets the placement origin of small PCBs in the array PCB by

increasing the coordinate as much as the offset from the placement origin of

the small PCB, which becomes the reference in the array PCB.

<Teach> button

This button is used to teach the offset value of Array PCB in the same way as

teaching the PCB size. When this button is clicked on, the following screens

are displayed in succession.

Figure 6-9. Screen showing first point teaching for Array PCB Offset

Teach the origin of Array PCB 1. When the “Enter” key is pressed after

teaching, the following screen is displayed.
