Samsung Component Placer CP45FV Administrator’s Guide

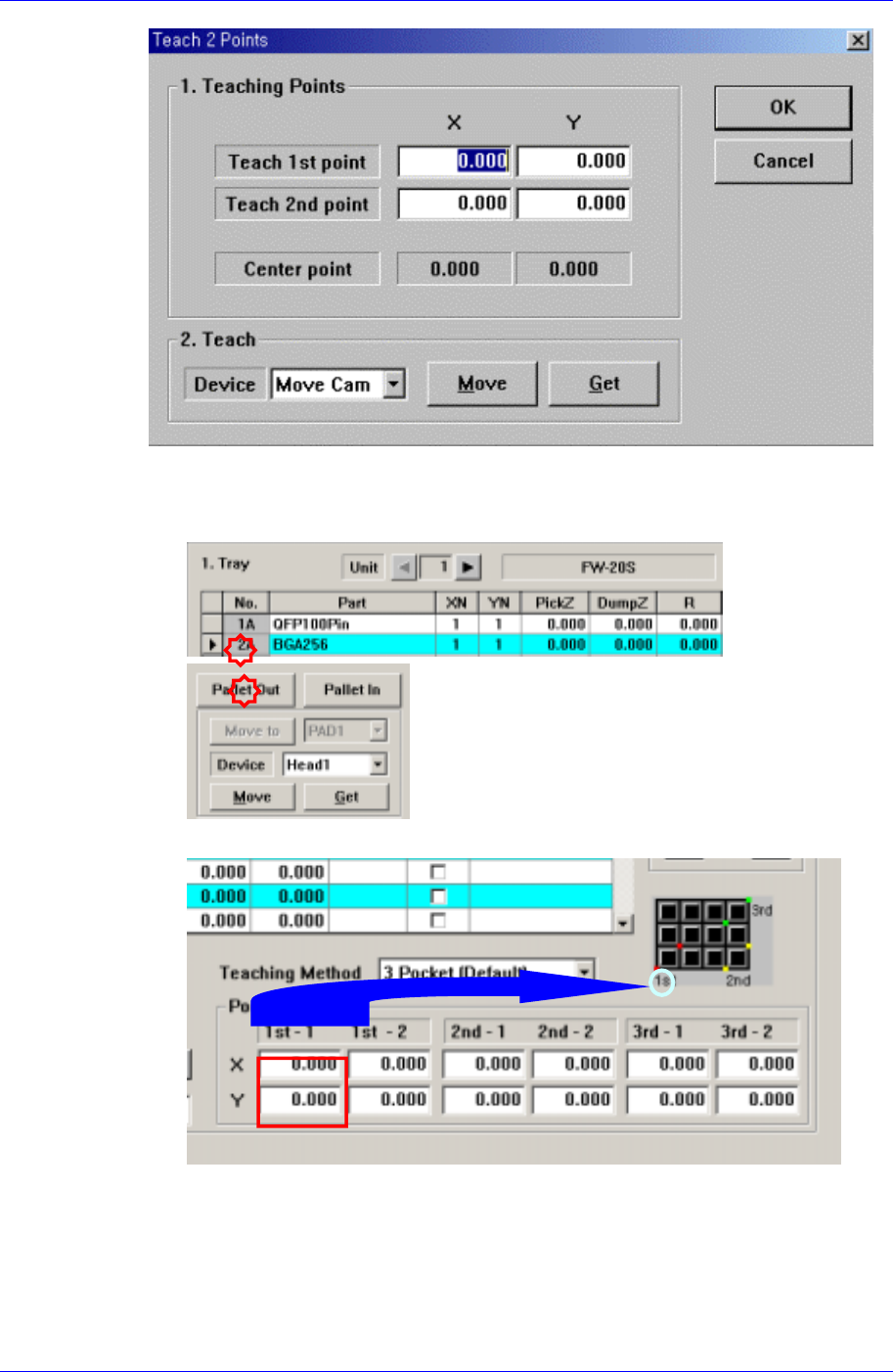

Placement point teaching on the tray feeder
Pallet Out: Click the <Pallet Out> button after selecting the corresponding
component.
Pocket Position: Perform Two Point Teaching of three points of the pallet.
Once the teaching of three pockets is completed, the coordinate of each pocket is
set automatically.
13-16
Teaching
13-17
(1st – 1) (1st – 2)
XN / YN: Enter the number of X and Y columns.
Enter the number of the rows and cloumns of the selected tray.
In the case of a tray with 3 rows and 4 cloumns, there are 12 pockets)
PickZ / DumpZ (Device): Enter the pickup height and dump height (Head)
Enter the height of the Z-axis when moving down the Z-axis with the nozzle of
the corresponding component mounted on the head.
13.2.3. Reference point teaching for calibration
This is to teach a certain point of the machine or the center of the fiducial mark of the
calibration tool for calibration.
This teaching is performed in the same procedure as fiducial mark teaching.
First, move the Fiducial Camera (Move Camera) to the corresponding area, and after
placing the center of the cross hair of the vision monitor on the center of the area, click
the <Get> button or <Enter> key of the teaching box.
For further details of the teaching method related to the calibration of each device, refer
to “Chapter 15. Machine Calibration”.
