File Menu

Chapter 3. File Menu

3-1

The <File> menu is composed of the following six command submenus: New, Open,

Save, Save As, Merge Part Library, and Exit.

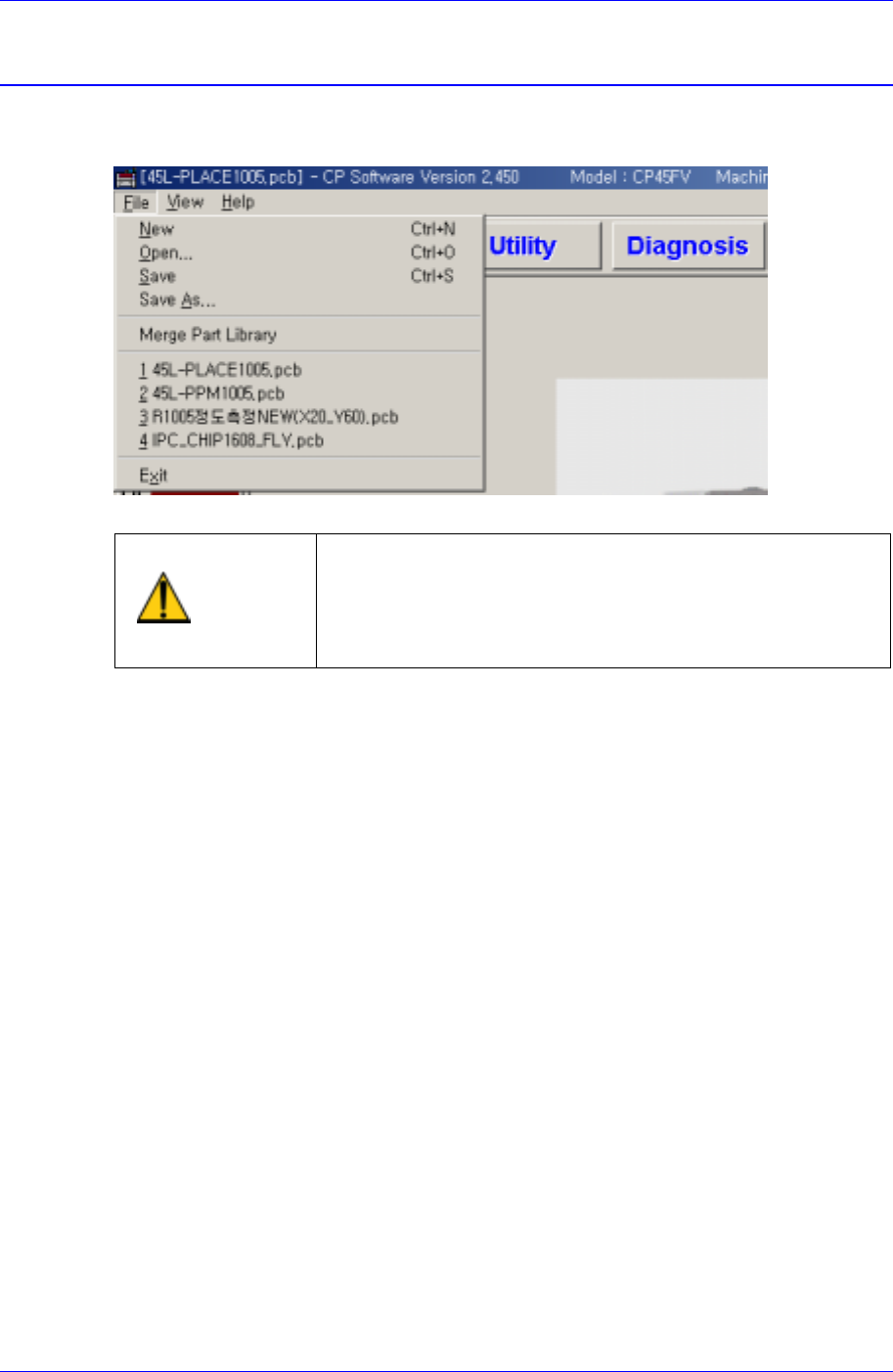

Figure 3-1. File Menu and Submenus

Caution

Except the PCB file, deleting or moving a system file or

data file arbitrarily could lead to the operation failure of

MMI program.

Except the PCB File, do not delete or remove a system

file or data file arbitrarily.

Samsung Component Placer CP45FV Series Administrator’s Guide

3.1. New [Ctrl+N]

<New> command is used to create a new PCB file. When the <New> command is

selected, the following dialog box is displayed.

Figure 3-2. “New PCB File” dialog box

<Copy data from an existing PCB file> check box 

Used to copy certain data from an existing file and create a new file. When this box is

not checked, default data is used to create a new file. When this box is clicked on,

the <Items to Copy> dialog box is displayed.

3-2

File Menu

3-3

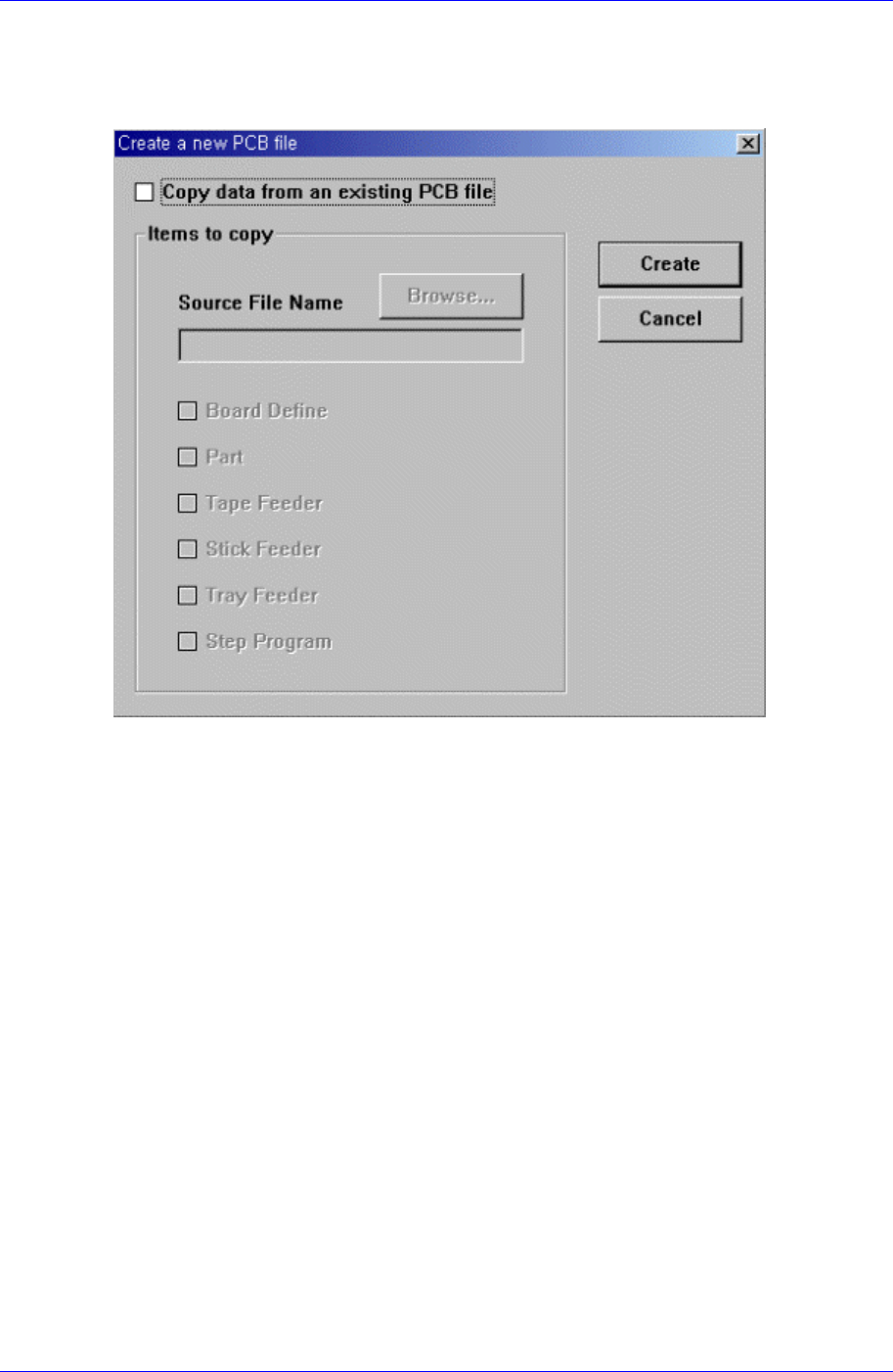

Figure 3-3.. “ Create a new PCB file” dialog box

<Copy data from another PCB file> option button 



Used to copy certain data from an existing file and create a new file.

<Browse...> button

Used to create a new PCB file from existing files. When this button is clicked on,

“Open” dialog box is displayed.

Figure 3-4. “Open” dialog box

<Folders> Combo box 

Specify the directory in which the file is located. Displays the files in the

directory specified here in the <File list> list box.
