Part Registration
7-27
7.3.2. SOJ component data setting
Set the align data for SOJ components.

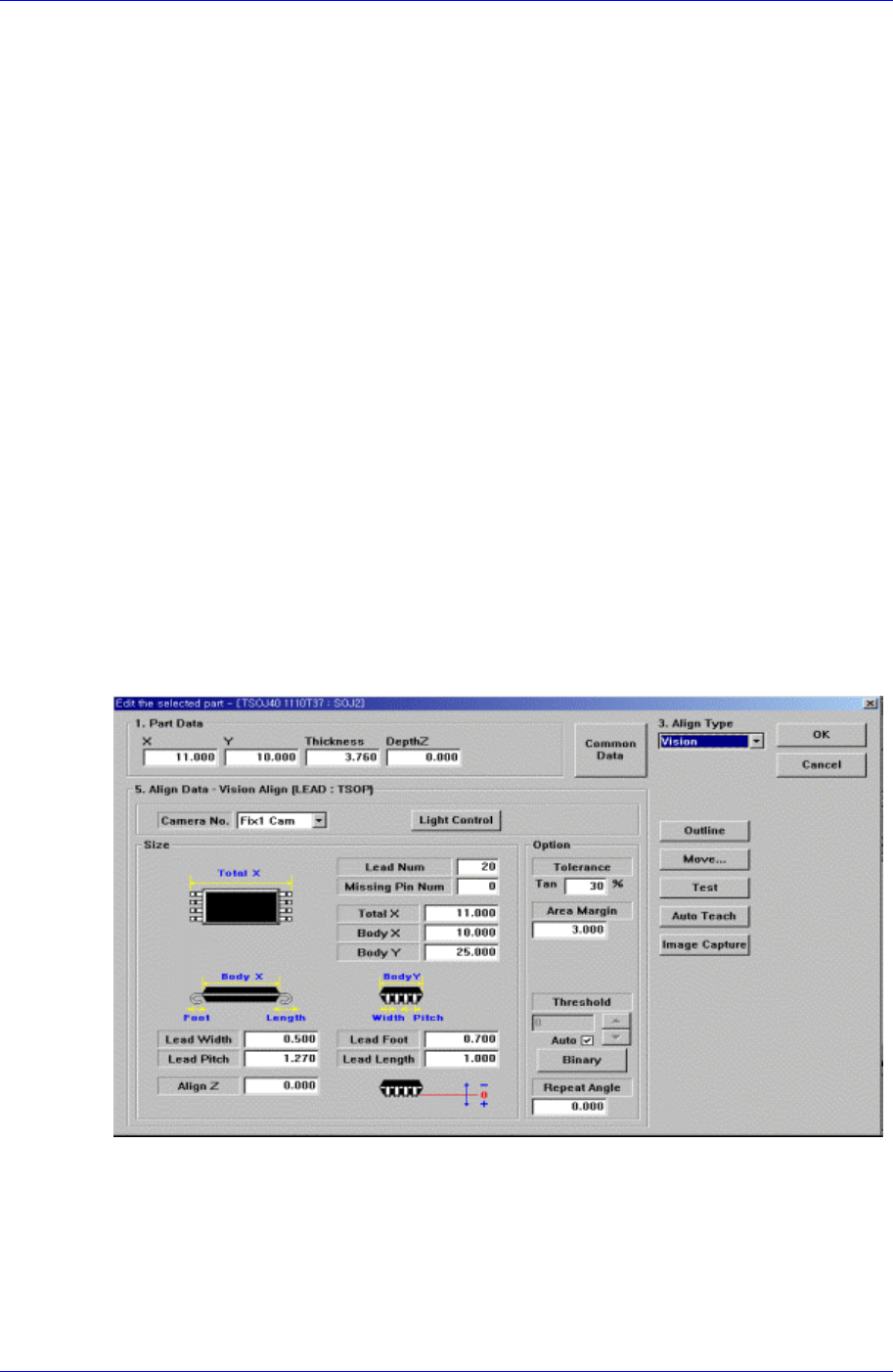

Figure 7-18. “Align Type = Vision, Package Group = SOJ” dialog box
<Camera No.> combo box
Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align
Data (Page 7-9)” for more information.
<Light Control> button
Set the light for the camera to recognize the component. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Size> group
Set the Align size.
<Total Y> edit box
Set the size of the whole component in Y direction.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
<Option> group
Set the align option data. Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for
more information.
<Outline> button
Displays the outline of the component on the vision monitor by using the set align
data.
<Move…> button
Performs component pickups or moves to the stage camera. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Test> button
Tests component recognition by using the set align data. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
Samsung Component Placer CP45FV Series Administrator’s Guide
<Auto Teach> button
Finds out the component align data automatically. Please refer to “7.3.1.1 Common
Align Data(Page 7-23)” for more information.
<Image Capture> button
Helps to specify the optimum lighting value. The lighting is gradually changed
automatically and the images are saved. The user can check the best image and
identify the optimum lighting value.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
7.3.3. SOP2 component data setting
Set the align data for SOP2 components.

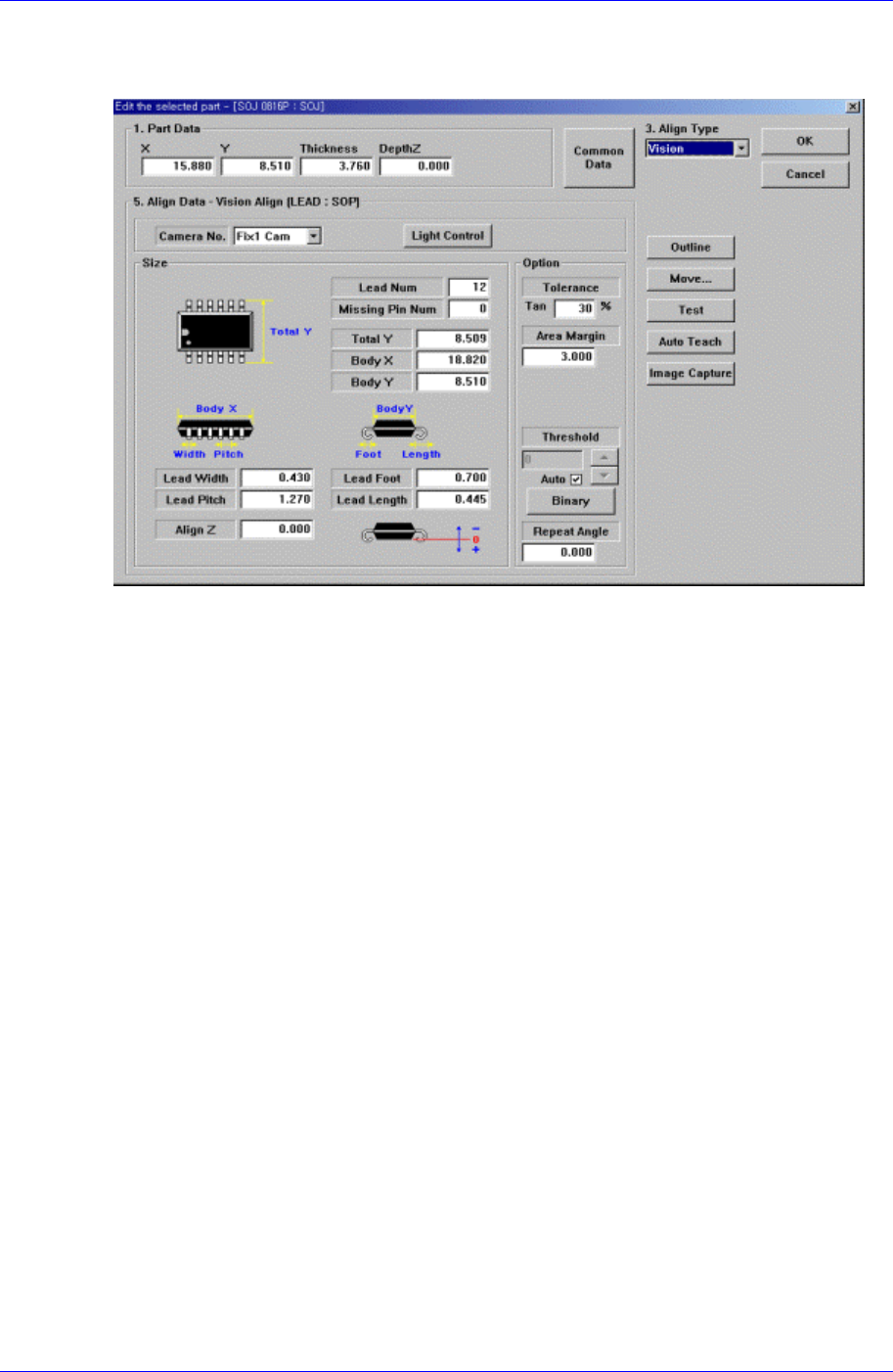

Figure 7-19. “Align Type = Vision, Package Group = SOP2” dialog box
<Camera No.> combo box
Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align
Data (Page 7-9)” for more information.
<Light Control> button
Set the light for the camera to recognize the component. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Size> group
Set the align size.
<Total X> edit box
Display the size of the whole component in X direction. When <Body X> and
<Lead Length> are determined, it is calculated and displayed. ( <Body X> +
<Lead Length> * 2)
Please refer to “7.3.1.1 Common Align Data(Page 7-23)” for more information.
<Option> group
7-28
Part Registration
7-29
Set the align option data. Please refer to “7.3.1.1 Common Align Data(Page 7-23)”
for more information.
<Outline> button
Displays the outer edges of the component on the vision monitor by using the set
align data.
<Move…> button
Performs component pickups or moves to the stage camera. Please refer to “7.3.1.1
Common Align Data(Page 7-23)” for more information.
<Test> button
Tests component recognition by using the set align data. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Auto Teach> button
Finds out the component align data automatically. Please refer to “7.3.1.1 Common
Align Data(Page 7-23)” for more information.
<Image Capture> button
Helps to specify the optimum lighting value. The lighting is gradually changed
automatically and the images are saved. The user can check the best image and
identify the optimum lighting value.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
7.3.4. SOJ2 component data setting
Set the align data for SOJ2 components.

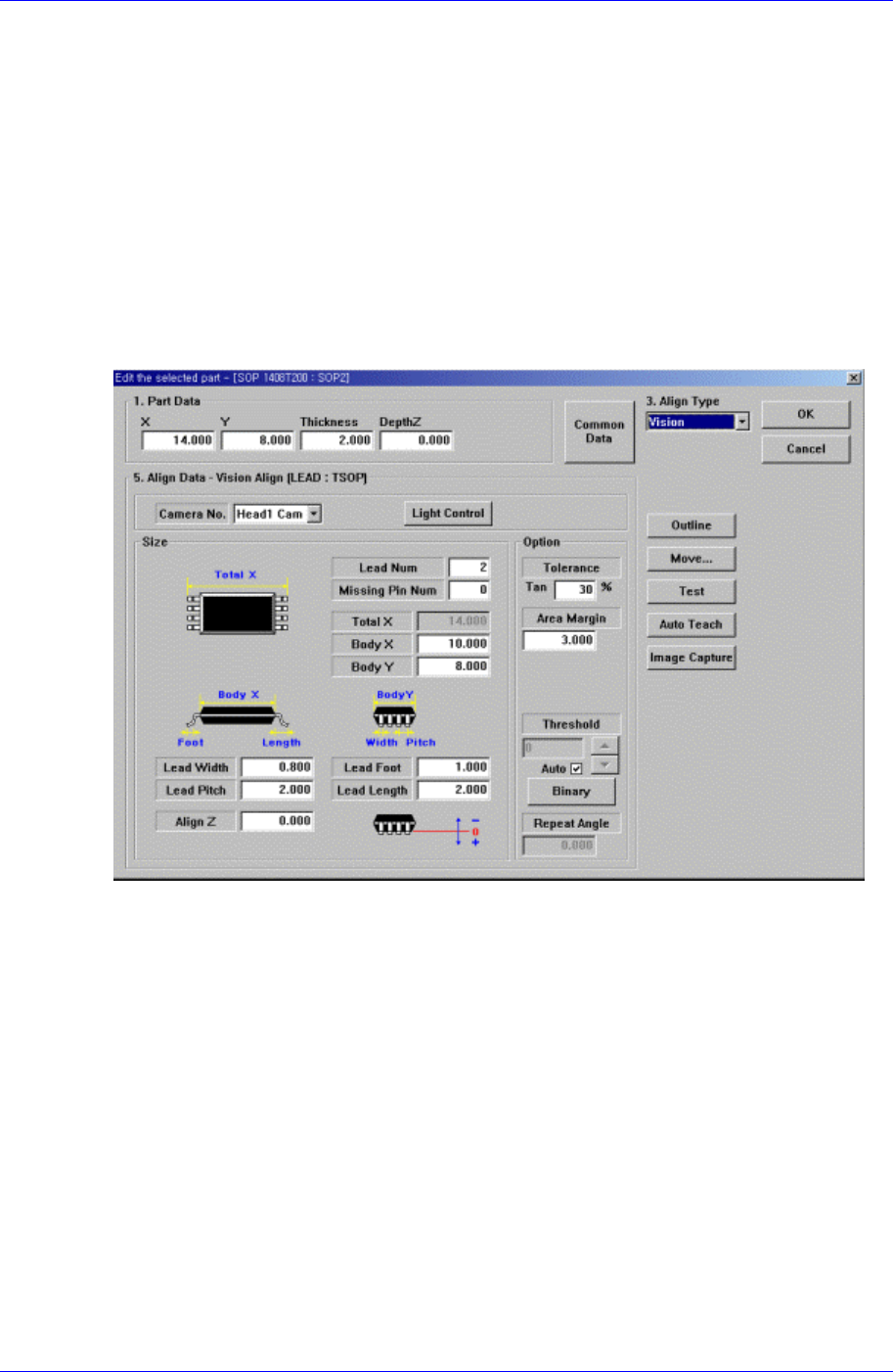

Figure 7-20. “Align Type = Vision, Package Group = SOJ2” dialog box
<Camera No.> combo box
Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align
Data (Page 7-9)” for more information.
<Light Control> button
Set the light for the camera to recognize the component. Please refer to “7.2.1.1
