Feeder Setup
Chapter 8. Feeder Setup
8-1
8.1. Feeder [F4]
The <Feeder> command edits data related to tape feeder, stick feeder, and tray feeder.
The user can specify the part to be installed on each feeder, teach pickups position, and
test component pickups. When this command is selected, the initial screen is for the tape
feeder screen.
8.1.1. Feeder Base
When the feeder base is selected, the following dialog box is displayed and the data on
feeder base can be edited.
Figure 8-1.. “Feeder : Feeder Base” dialog box
<Unit> group
Select the feeder base unit to edit.
button selects the previous unit, button selects the next unit.
<1. Feeder Base> group
Display the status of various devices installed on the feeder base including the feeder
type and edit the installation position.
<No> column
A serial number of the feeder base slot. Air pressure type feeder base has 52 slots.
<Part> column
Select the component to install in the corresponding slot. When the <Part>
column is clicked on, the combo box appears, and of the components registered
in <1.2 Part>, the list of components to be supplied to “Tape” is displayed. Select
the component to install in this list. Next is the screen that shows selection of
Samsung Component Placer CP45FV Series Administrator’s Guide
components in the combo box of <Part> column.

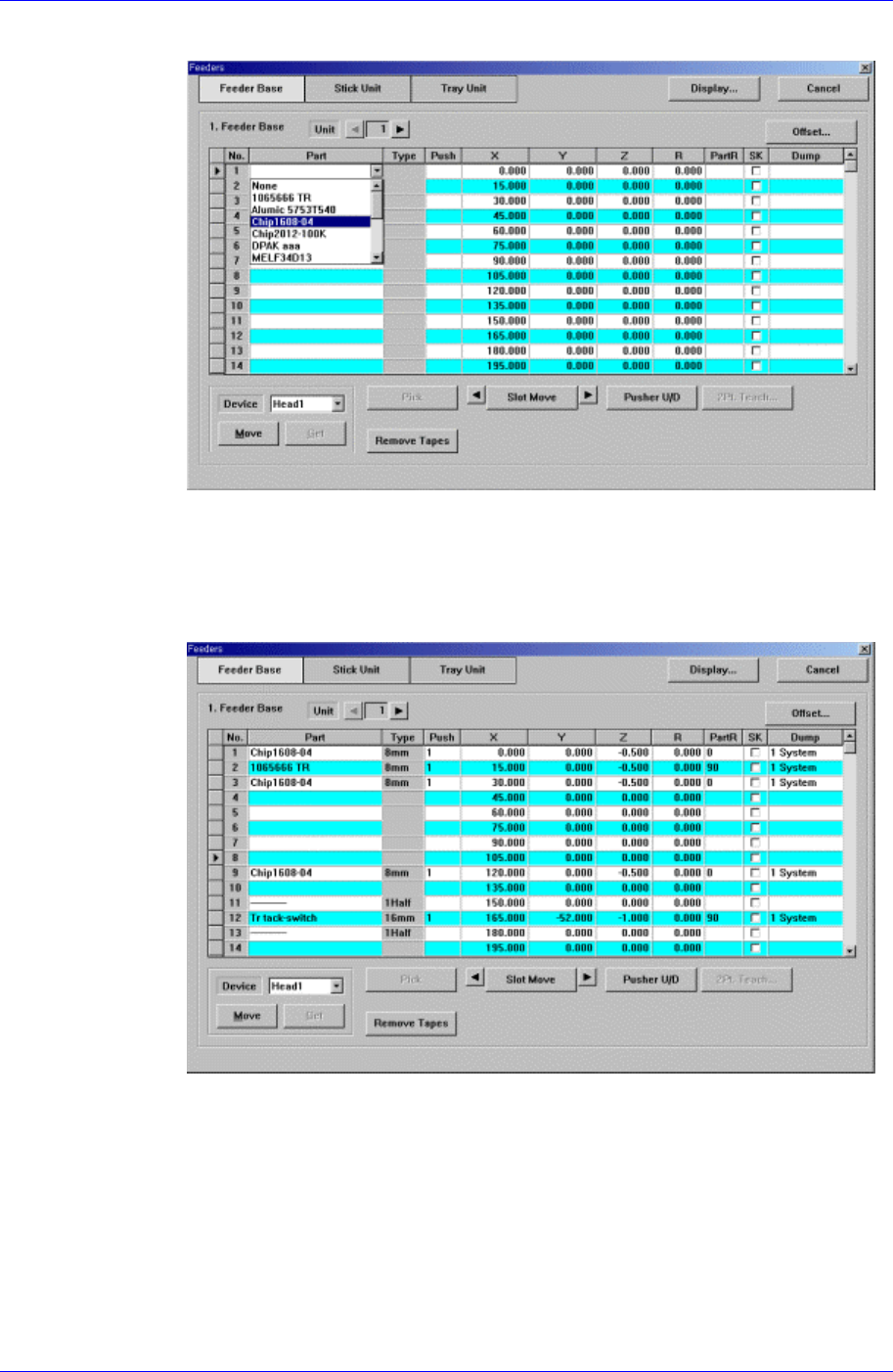

Figure 8-2. “Feeder : When the part is selected in the Feeder Base” screen
<Type> column
Displays the type of the device installed in the corresponding slot. Next screen
shows the content displayed in the <Type> column of the feeder base on which
various devices are installed.

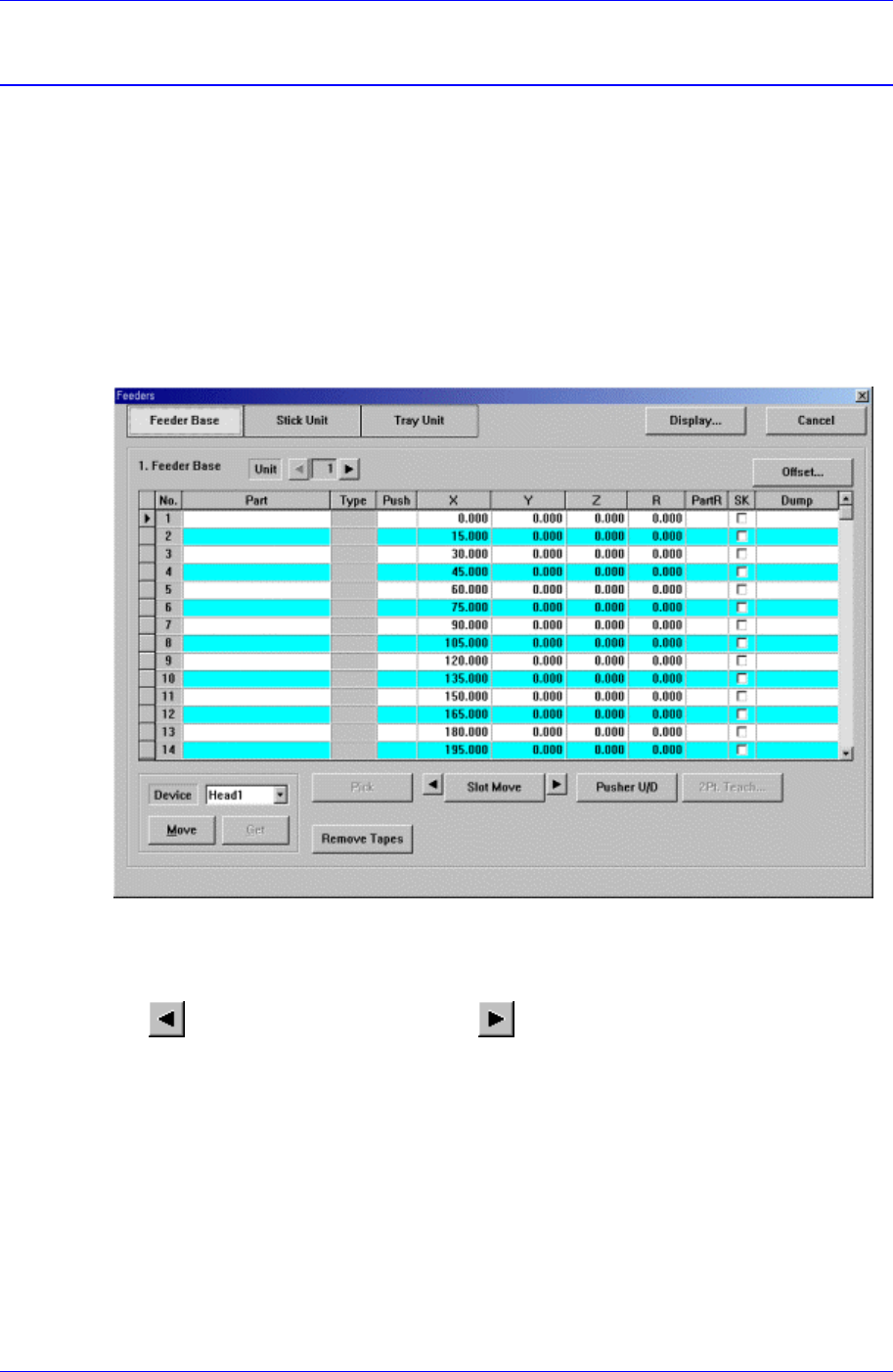

Figure 8-3. “Feeder : When various devices are installed in the Feeder Base” screen
Of the items displayed in the <Type> column, explanation is given on the
following.
1Half: The corresponding slot is occupied by 1 device installed in the adjacent
slot.
2Half: The corresponding slot is occupied by 2 devices installed in the adjacent
slot.
Full: The corresponding slot is entirely occupied by the device installed in the
adjacent slot.
8-2
