15.2. Camera [F8]
Sets various data on the camera and performs camera calibration.
Figure 15-3. “Sys. Setup : Camera Setting – Move Camera” dialog box
<Camera Select> option button group
Select the camera type to set. Available camera types are as follows.
Move Camera : Camera used for position teaching or fiducial mark check.
Fix Camera : Camera used for component check, it is fixed on the feeder lane.
Fly Camera : Camera used for component check, it is attached to each head.
<Camera No> option button
Selects the camera number for each camera type.
For the move camera, no.1, for the fix camera, nos. 1-3, and for the fly camera nos.1-
6 can be selected.
Above screen is the case where the camera type is set to “Move Camera”.
Warning
Operation error caused by unauthorized or untrained
personnel or insufficient checking before calibration could
severely damage the machine
or the set up data, or it could cause personal injury of the
operator or the worker near the machine.
Before carrying out calibration, check the item to be
calibrated and check if there is any worker near the
machine.
And calibration must be carried out by an authorized and
trained user only.
15-14
Machine Calibration
15-15
<Calibration Data> group
Sets the camera calibration data. It can either be set directly or by using the
calibration function.
<X> edit box
Set the resolution of the camera in X direction. The unit used is the number of
pixels per mm.
<Y> edit box
Set the resolution of the camera in Y direction. The unit is the number of pixels
per mm.
<R> edit box
Set the resolution of the camera in R direction. The unit is degree.
<Offset> group
Set the camera offset data.
<X> edit box
Set the offset value of the camera in X direction.
<Y> edit box
Set the offset value of the camera in Y direction.
<R> edit box
Set the offset value of the camera in R direction.
<Default Light> group
Set the default light value.

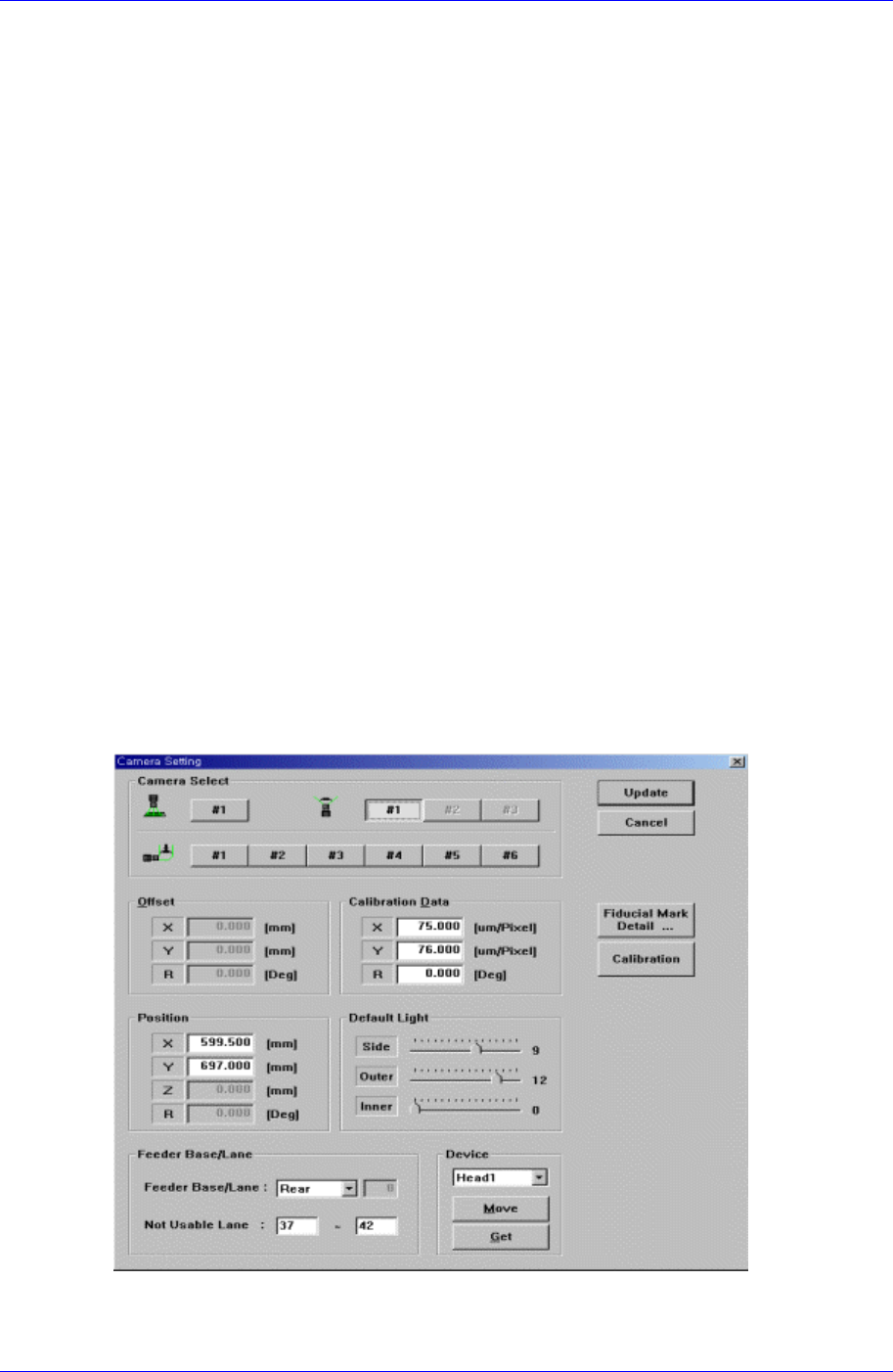

Next screen is the case where the camera type is set to “Fix Camera”.
<Calibration Data> group
Set the camera calibration data. It can be set directly or by using the calibration
Samsung Component Placer CP45FV Administrator’s Guide
function.
<X> edit box
Set the resolution of the camera in X direction. The unit is the number of pixels
per mm.
<Y> edit box
Set the resolution of the camera in Y direction. The unit is the number of pixels
per mm.
<R> edit box
Set the resolution of the camera in R direction. The unit is degree.
<Offset> group
Set the camera offset data.
<X> edit box
Set the offset value of the camera in X direction.
<Y> edit box
Set the offset value of the camera in Y direction.
<R> edit box
Set the offset value of the camera in R direction.
<Default Light> group
Set the default light value. Lights to be set are side light, outer light, and inner light.
<Position> group
Set the position of the fix camera.
<X> edit box
Set the X position value of the fix camera.
<Y> edit box
Set the Y position value of the fix camera.
<Z> edit box
Set the Z position value of the fix camera.
<R> edit box
Set the R position value of the fix camera.
<Feeder Base Lane> combo box
As the fix camera is fixed and installed on the feeder lane, set the fixed feeder lane.
It is always fixed to “Rear”.
<Not Usable Lane> edit box
Set the lane occupied by the fix camera.
Next screen is the case where the camera type is set to “Fly Camera”.
