Samsung Component Placer CP45FV Series Administrator’s Guide

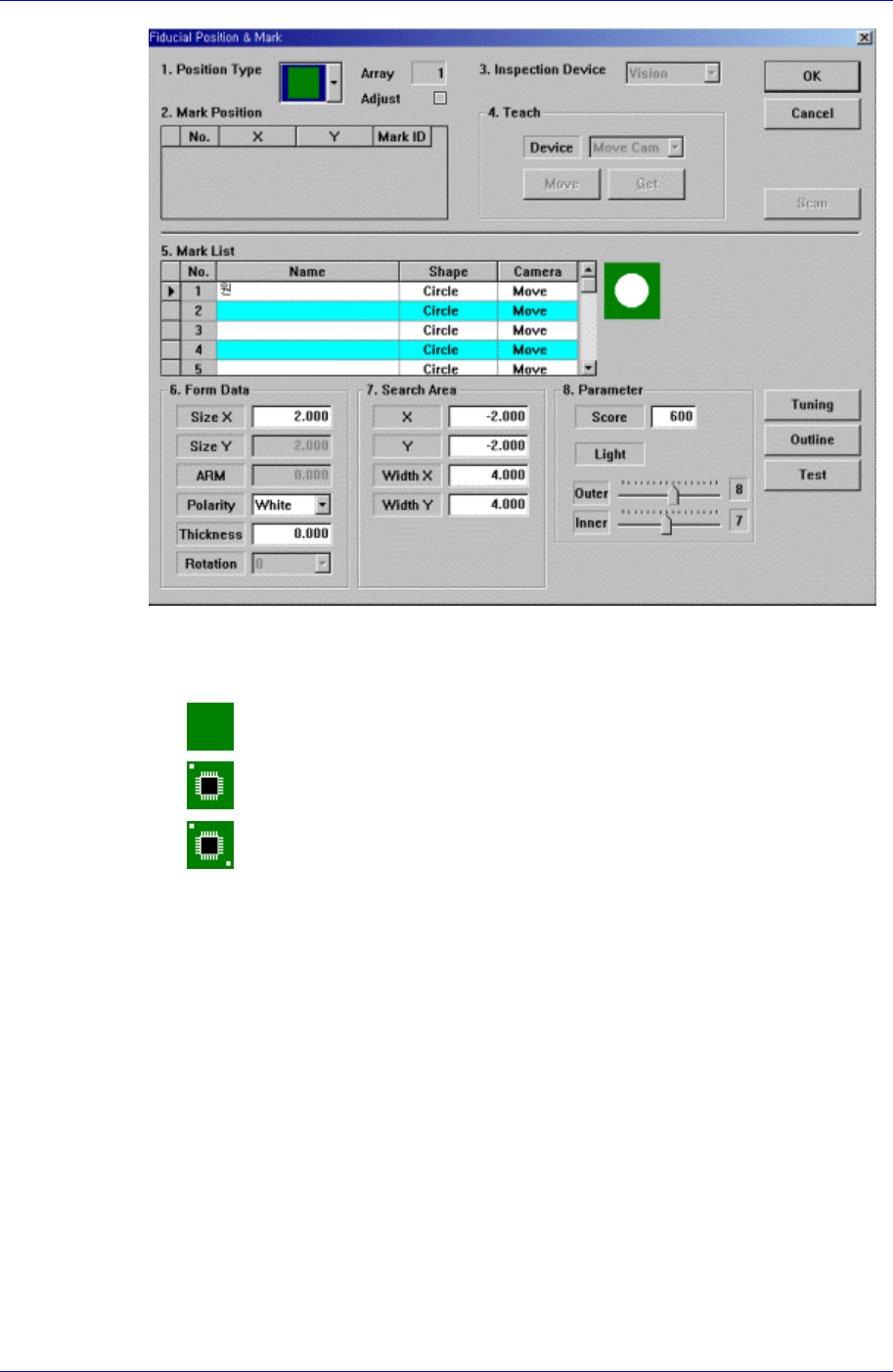

<Position Type> combo box 

Select the number of fiducial marks. Available numbers of fiducial marks are as

follows.

None: No fiducial mark.

1 Part: 1 fiducial mark for placement point adjustment.

2 Part: 2 fiducial marks for placement point adjustment.

For the rest, please refer to the explanation of the <Fiducial Mark…> button in

<11.1 Board>.

<Offset…> button 

Adds the offset value to the position of placement point. Before executing this

function, X column or Y column or Z column or R column or the line to add the

offset value must be selected in the grid. When this button is clicked on, the following

dialog box is displayed.

9-6

Step Programming

9-7

The case to select a column 

If the Feeder item is selected as ‘All’, it will be applicable to all steps.

In case a particular feeder is selected as the Feeder item, the offset value will be

applicable only for the step that uses the particular feeder. However, in case “To

all parts used in this feeder” is set, the offset value is applied to all the steps that

have the part names identical with the ones of the feeder being selected currently.

<X> edit box 





Set the X offset value.

<Y> edit box

Set the Y offset value.

<Z> edit box

Set the Z offset value.

<R> edit box

Set the R offset value.

<OK> button

Closes the dialog box and adds the set offset value to the selected line in the grid.

<Cancel> button

Ignores the set offset value and closes the dialog box

<Adjust…> button

It is a function used to change the PCB step coordinate or to check and adjust the gap

between the previous fiducial mark coordinate and the current fiducial mark

coordinate to use the previous step coordinate when the backup table is down

accidentally.

<Insert 1Line> button

Inserts a new placement point before the currently selected line in the grid.

Samsung Component Placer CP45FV Series Administrator’s Guide

<Delete> button 



Deletes the placement point in the selected area in the grid.

<Import…> button

Converts externally created ASCII data into step data for this machine.

Figure 9-3 “Import SSA File” dialog box

If the <Import> button is clicked, the process that converts the corresponding data to

the step data is initialized.

Click the <Import> button in the <Steps> dialog box. 

Locate and select the location and file name of the CAD file to be imported.

9-8
