Samsung Component Placer CP45FV Series Administrator ’ s Guide <T olerance H> edit box     Set the highest tolerance with a percentage for component recognition. <T olerance L> edit box Set the lowest tol…

Part Registration

7-11

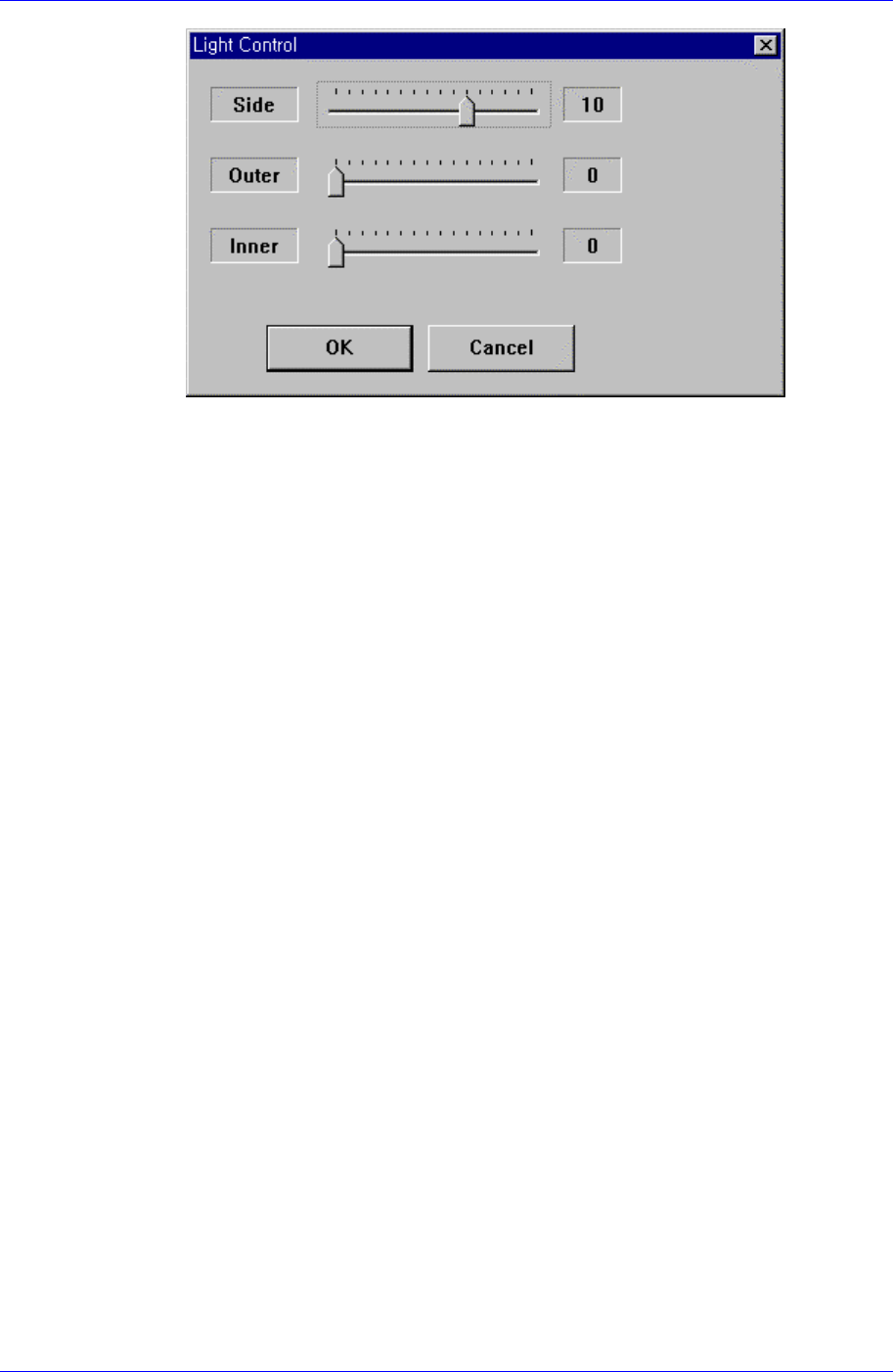

Figure 7-9. “Camera No. = Fix Camera “ dialog box

<Side> 





Set a value for the side light. (0 – 15)

<Outer>

Set a value for the outer light. (0 - 15)

<Inner>

Set a value for the inner light. (0 - 15)

<OK> button

Saves the set light value and closes the dialog box.

<Cancel> button

Closes the dialog box without saving the set light value.

<Align Z> edit box

Set the height for recognition. Based on the component surface, if the top is to be

recognized, set - value and if the bottom is to be recognized, set + value.

<Threshold> edit box

When there is a pre-treatment process for component recognition and the gray

level image is converted into binary(binary mode), it is the value used as the

criteria to determine black and white.

The value range is 0 – 255(0: black, 255: white), and this value serves to

differentiate the component from the background. When the set value is 0, the

value is set automatically during component recognition.

For example, if the <Threshold> value is 100, all the values under 100 in the

vision image are recognized as black, and all the values over 100 are recognized

as white.

<Auto> check box

Check this box to set the <Threshold> value automatically.

<Binary> button

Displays the binary image of the component on the Vision Monitor screen.

<Option> group

Set the Align Option data.

Samsung Component Placer CP45FV Series Administrator’s Guide

<Tolerance H> edit box 



Set the highest tolerance with a percentage for component recognition.

<Tolerance L> edit box

Set the lowest tolerance with a percentage for component recognition.

<Ignore Center Offset> check box

In the case of Chip components, Center Offset is not checked during vision check.

<Offset X> edit box

Set the X offset value to be added when the component is placed (After

component recognition, it is the value added after placement point adjustment). If

a component is not top/down or right/left symmetry and when the component

center(centroid) is calculated after component recognition, it does not coincide

with the actual component center. The purpose of this value is to do regular

adjustment by setting the offset value between the obtained component

center(centroid) and the actual component center.

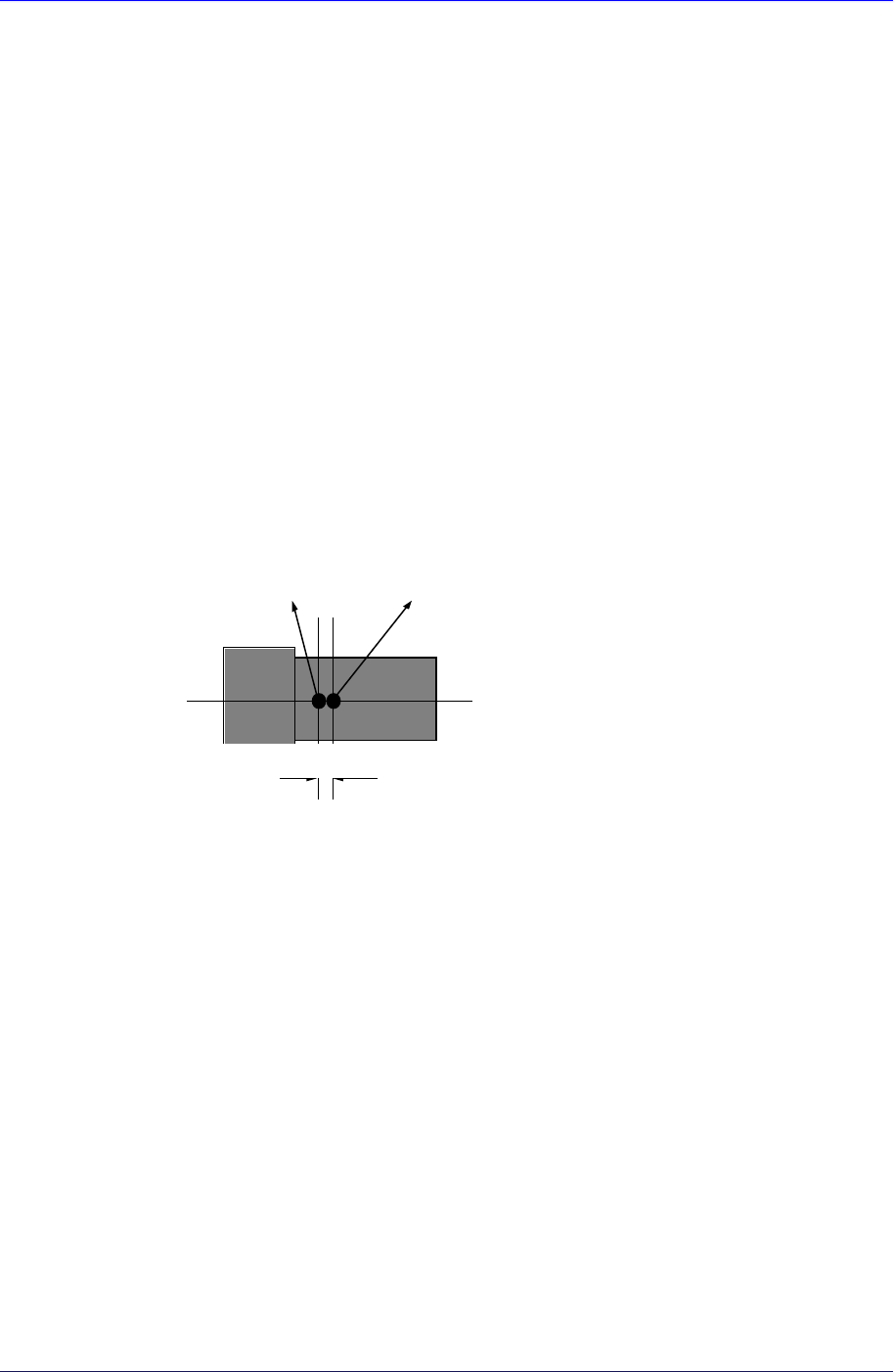

Offset X

Component center(centroid)

after component recognition

Actual component center

<Offset Y> edit box 





Set the Y offset value to be added when the component is placed. (After

component recognition, the value added after component placement point

adjustment)

<Offset R> edit box

Set the R offset value to be added when the component is placed.(After

component recognition, it is the value added after component placement point

adjustment)

<Area Margin> edit box

Sets the range for the image to be off the center of the screen when recognizing a

component. For example, if this value is set to 5mm, it means that the image

should be within 5mm of the center.

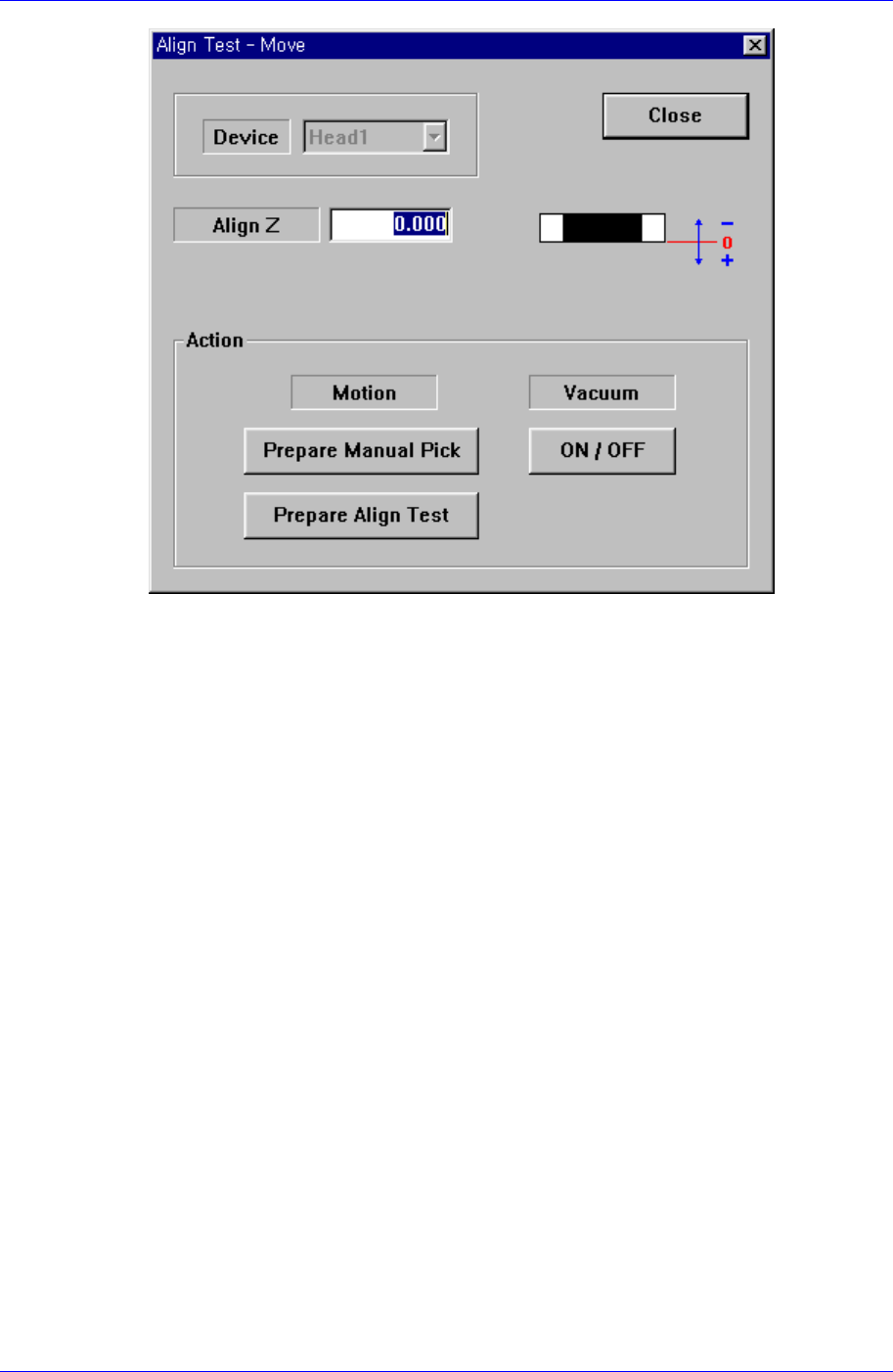

<Move…> button

Performs component pickups or moves to the fix camera. When this button is clicked

on, the following dialog box is displayed.

7-12

Part Registration

7-13





<Device> combo box

Selects the corresponding device to move the head assembly by rotating the

driving shafts of the X and Y motors or obtains the current coordinate of the

device to be selected. Applicable devices are as follows;

Move Cam: Selects the Teaching Camera.

Head1: Selects Head1.

Head2: Selects Head2.

Head3: Selects Head3.

Head4: Selects Head4.

Head5: Selects Head5.

Head6: Selects Head6.

Beam: Selects Beam.

When the <Camera No> has been set to the head camera in component align data,

the <Device> combo box is inactivated.

<Align Z> edit box

Set the height for recognition. Based on the component surface, if the top is to be

recognized, set - value, and if the bottom is to be recognized, set + value.

<Action> group

<Prepare Manual Pick> button

Moves the head block to the pickups point when the component is to be

adsorbed to the head manually. Moves to the Home position of the machine.

<Prepare Align Test> button

Prepares for the component align test. If the <Camera No.> to be aligned is

the fly camera, moves the Z axis of the head to the align height, closes the
