Samsung Component Placer CP45FV Series Administrator ’ s Guide Page Layout Chapter T itle / Manual Name Chapter T itle Figure (Chapter number)-(Serial number) (Title of the figur e) Indicates that this is the first figur…

Preface

xiii

 Screen display

The main screen of MMI of this machine is shown below.

indicated.



The states of nozzles ed on each head are indicated.

X, Y coordinates of the head

position based on head1 are

indicated.

A main menu tool-bar is shown.

Use a menu bar as in a general window

application program

A sub menu tool-bar is shown.

A help message applicable to the

present state as well as the state

of the machine (IDLE, RUN,

FREEZE, WAIT, PAUSE) is

Memo

Pictures showing a dialog box or message box of MMI are inserted to produce this

manual. Therefore, the screens shown in the manual and various settings, values and

contents included within may vary depending on the machine installed or the

operational environment. The MMI screens shown in the manual are inserted for

more detailed reference and explanation. They are produced by enlarging or reducing

the contents appearing on the main screen of MMI.

 In addition, pictures inserted in this manual are prepared based on the CP45FV

model, and therefore, some discrepancies may exist depending on the model.

Samsung Component Placer CP45FV Series Administrator’s Guide

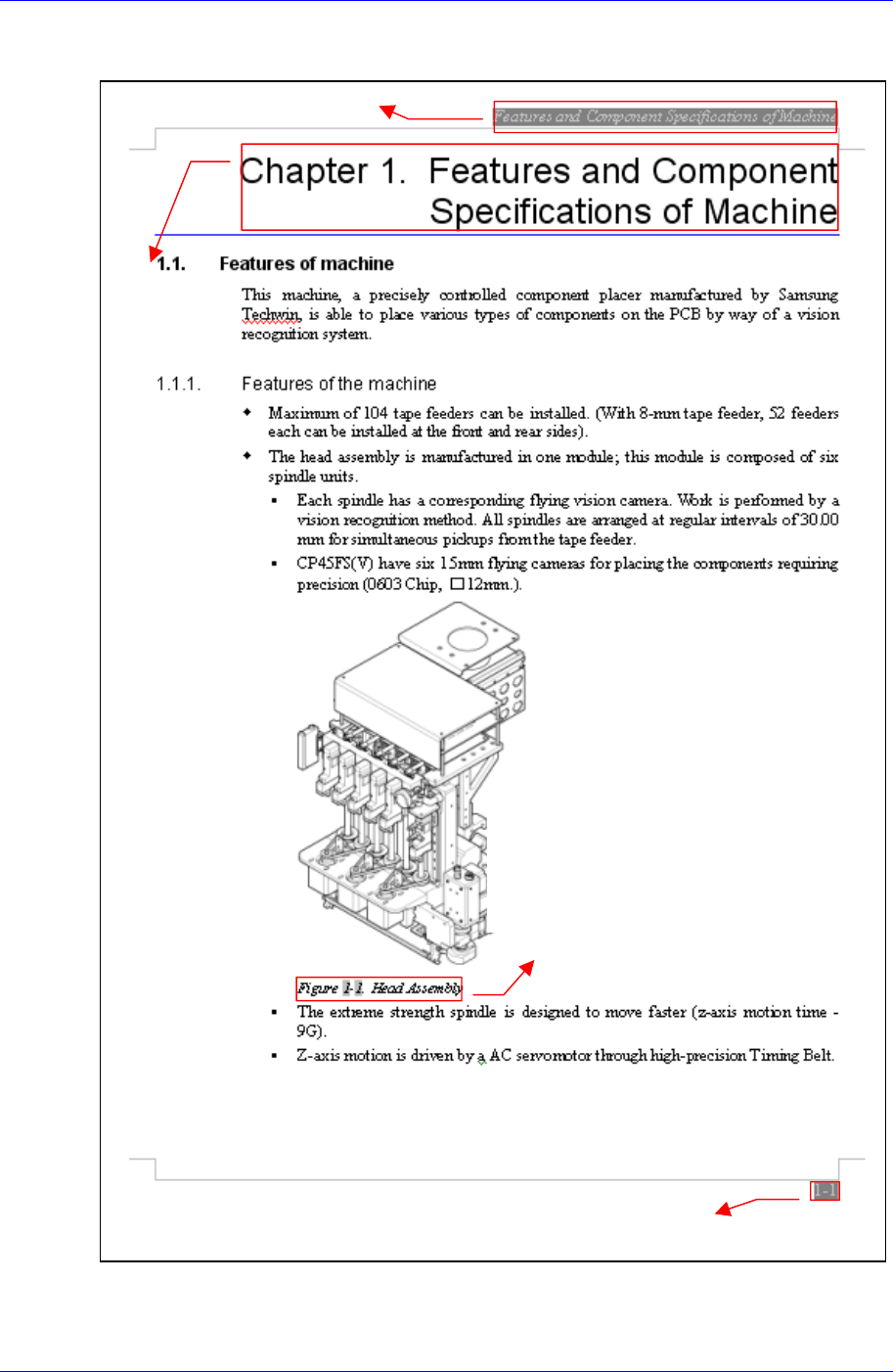

Page Layout

Chapter Title / Manual Name

Chapter Title

Figure (Chapter number)-(Serial number)

(Title of the figure)

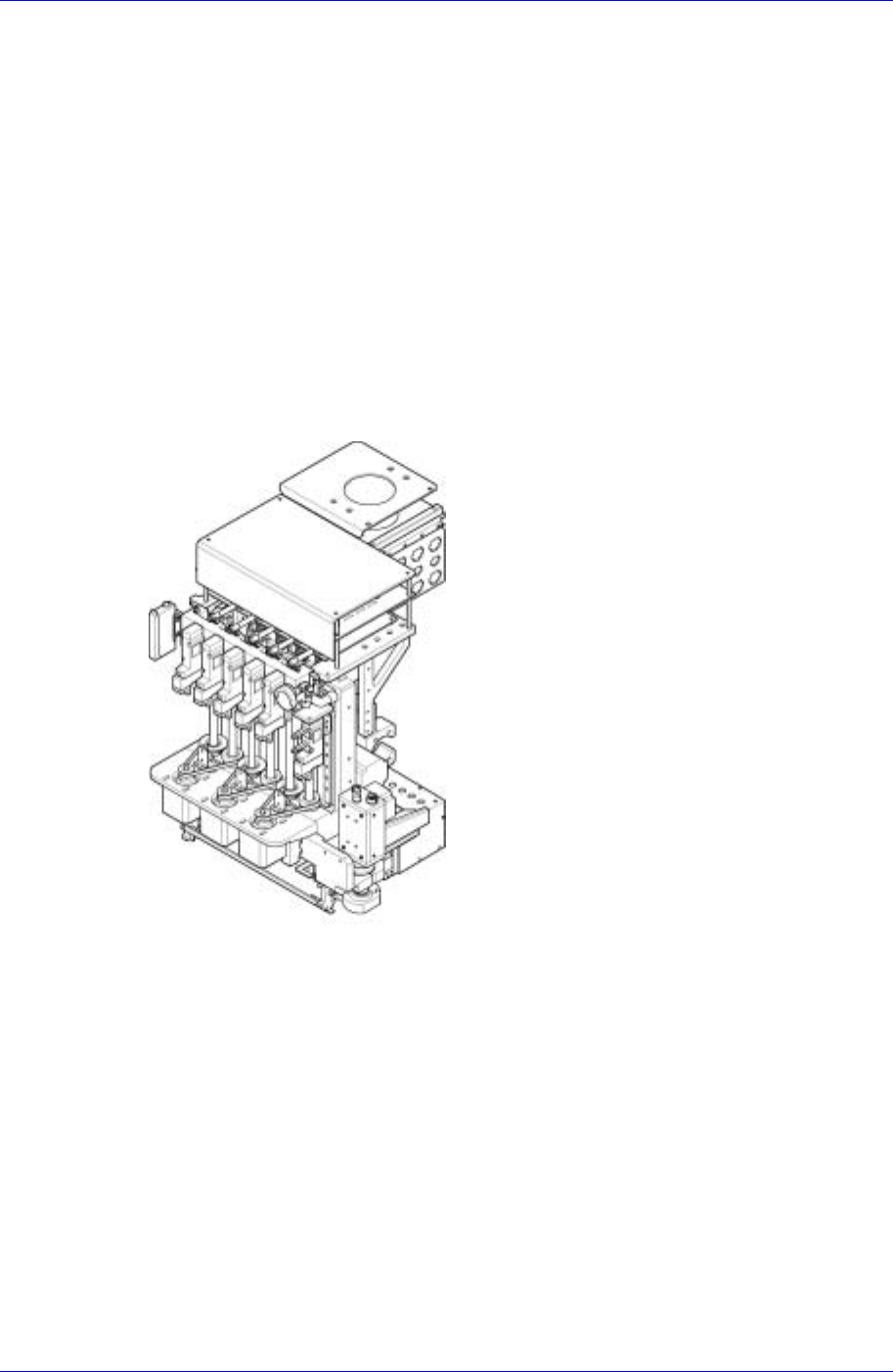

Indicates that this is the first figure of Chapter 1

and that the title of the figure is Head Assembly

Chapter number – page (Indicates the first page of Chapter 1)

xiv

Preface

Explanation of Terminologies

Teach 



Refers to a process that transmits the coordinate of a point on the machine using a

teaching camera (fiducial camera).

Beam

Refers to a device that is used for teaching. Teaching can be done by means of a beam

(a type of laser point) rather than a camera.

Head Assembly

Consists of the head body that supports the mechanisms or pneumatic devices

belonging to the head assembly, spindle, driving motor, and flying vision assembly, as

well as a fiducial camera that recognizes the shape of a component.

Offset 



Refers to the discrepancy to be compensated when the set coordinate is different from

the actually applied coordinate.

Array PCB

Refers to the PCB in which small PCBs of identical pattern are arrayed.

Binary Mode (Binary Image)

Refers to the mode that represents the vision image in black and white.

Local Part Library

Refers to the database containing profile data of components registered by the user

while working after installation of the MMI.
