Samsung Component Placer CP45FV Series Administrator’s Guide
3.3. Save [Ctrl+S]
Use the <Save> command to save just opened file. When the opened file is
'Untitled(when a file is opened with the <New> command)', the “Save As” dialog box is
displayed. Please refer to the next section(Save As...).

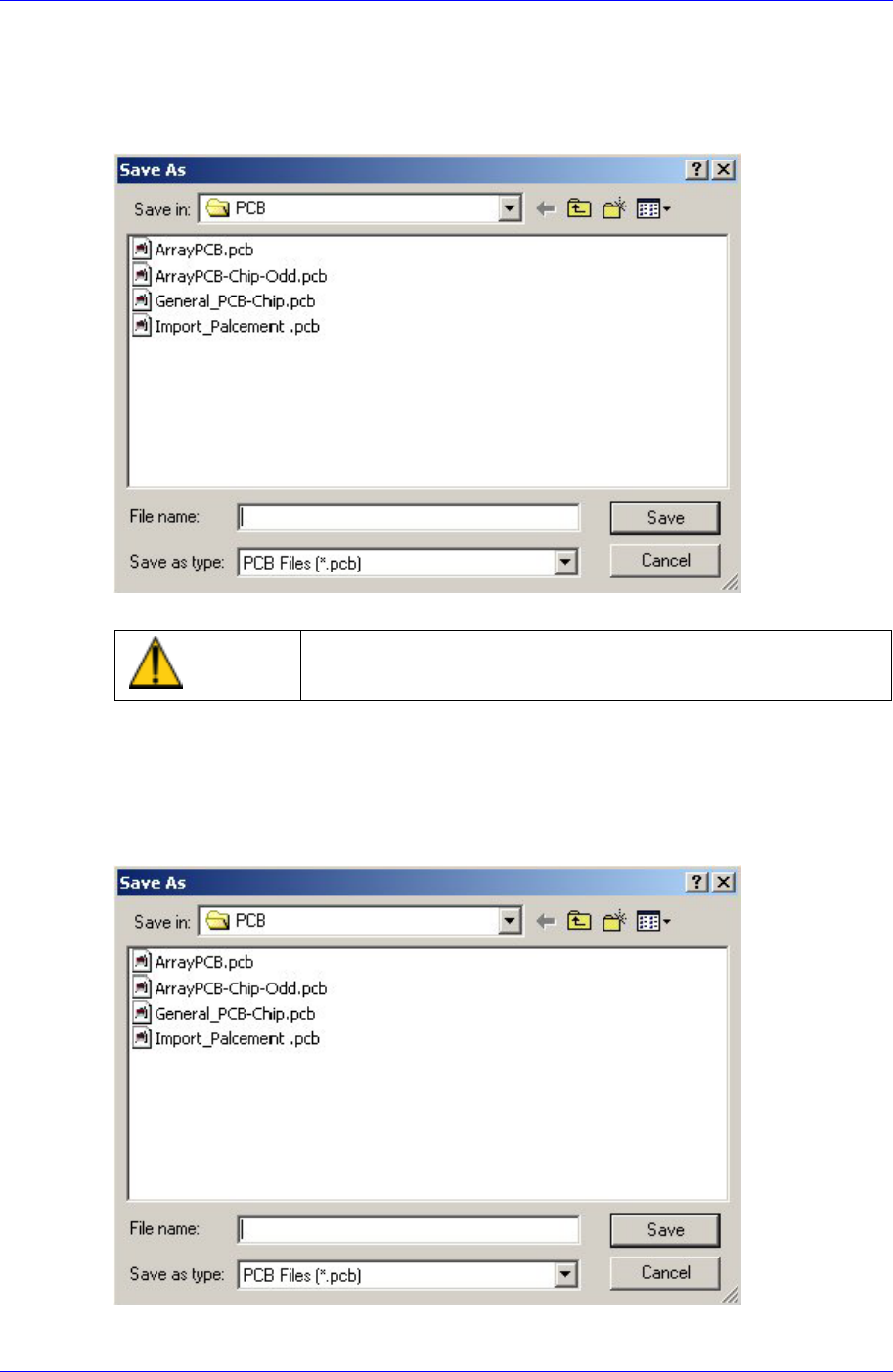

Figure 3-6. “Save As” dialog box
Caution
When the <Save> command is executed, the previous file
cannot be reverted, so take precautions.
3.4. Save As...
Use the <Save As> command to save a file under a different name. When the <Save As>
command is selected, the following dialog box is displayed.
Figure 3-7. “Save As” dialog box
3-6
File Menu
3-7
<Folders> list box
Specify the directory in which the file is located. Displays the files under the
directory specified here in the <File list> list box.
<File List> list box
Displays the files in the directory specified in the <Folders> list box.
<File name> edit box
Enter a new file name. Up to eight characters can be entered. If the number of
characters exceeds the limit or if a file with the same name already exists in the
directory, the following message box is displayed immediately after you click on the
<OK> button. If you click on <Yes> button in the “Save As” message box, the new
file overwrites the existing file.
Figure 3-8. “Save As” message box
<Save file as type> combo box
Select file format to be displayed in the <File list> list box. When the triangular
button is clicked on, displays accessible file format.
PCB Data Files(*.pcb): displays all files with the 'pcb' extension only.
Old Version(*.pcb): Used for the file with the same extension as above but only
if the compatibility with the machine using the previous MMI versions only. If
you use the versions above MMI version 6.XX, do not use this option.
<OK> button
Selects a file and closes the “Save As” dialog box.
<Cancel> button
Cancels the <Save As> command and closes the “Save As” dialog box.
Caution
If the extension of PCB File is changed arbitrarily, the PCB
File will not be recognized.
Do not change the extension of PCB File.
3.5. Merge Part Library
The <Merge Part Library> command is used to compare and merge the Local Part DB file
of another machine with the Local Part DB file of current machine or the Standard Part
DB file to be updated and redistributed with the Local Part DB file of current machine.
When the < Merge Part Library > command is selected, the following dialog boxes are
displayed.
Samsung Component Placer CP45FV Series Administrator’s Guide
Figure 3-9. “ Merge Part Library” dialog
<From > button
Selects the Source DB file.
<To> button
Selects the Target DB file.
<Compare> button
Compares the two DB files, displays the data that is not in the target DB file in the
New window and displays the data that is in the target DB but has a value that is
different from the one in the source file in the Different window of the Information
for Merge list window.
<Show> button
It has two functions; ALL and DIFF. When an item in the different window is selected
and All is selected, all data for the selected item in the source file and target file are
shown and when DIFF is selected, data of two files are compared and only the
different values are shown.
Figure 3-10. “Show : DIFF” list box
button
Use it to select the New or Different item in the Source file or to remove the selected
item.
<Merge> button
Renews a target file by merging the source file and target file after all selections are
made.
