Step Programming

9-9

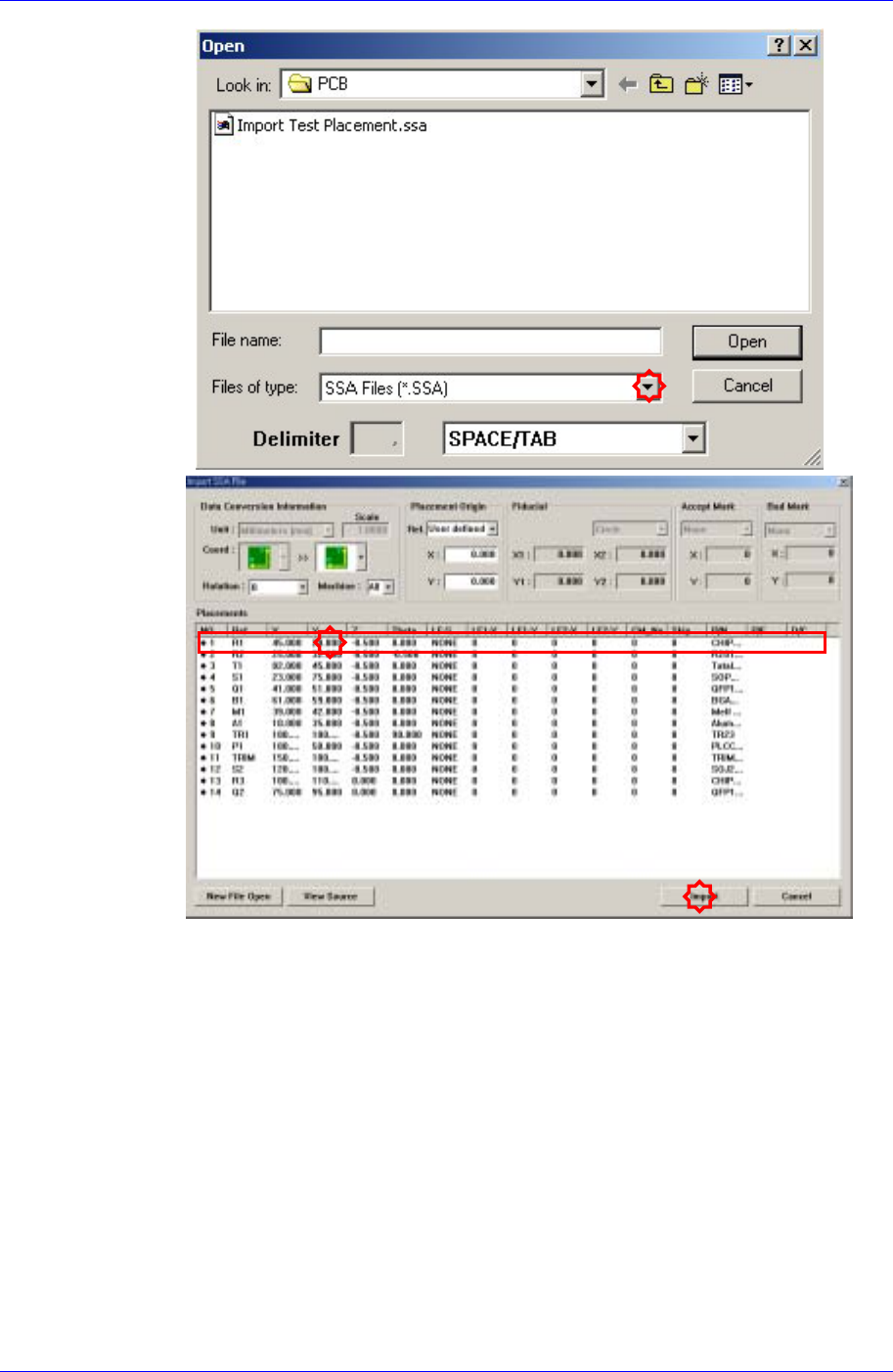

Select the machine to be operated using the imported SSA file. 

Select the imported machine and confirm the name of the corresponding row of

placements. In the case of our standard format (SSA), the row value need not be

changed.

Samsung Component Placer CP45FV Series Administrator’s Guide

Executes Import. 

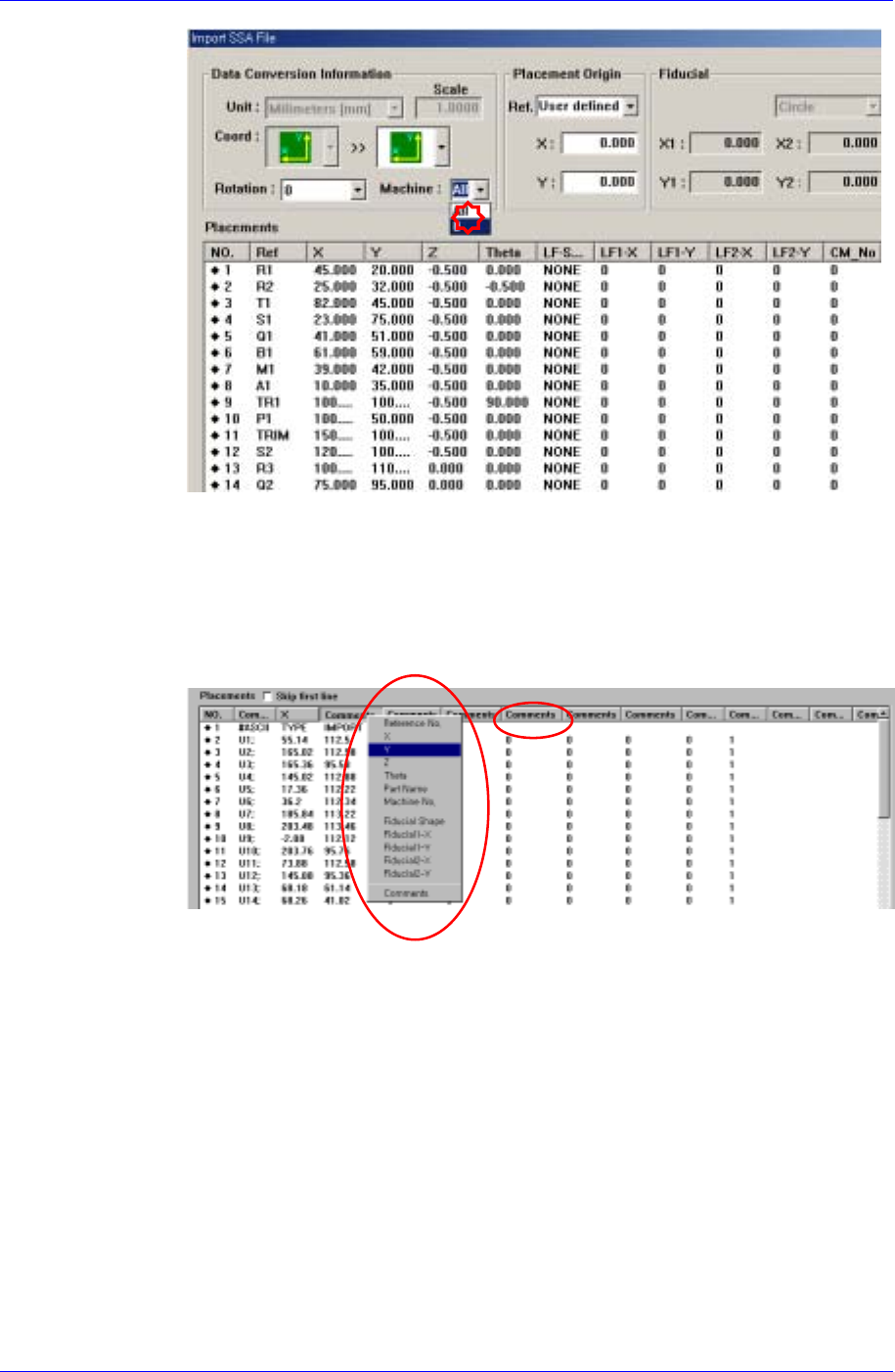

When importing a file in a format other than our standard format, the

corresponding information is indicated in a comment column as follows. Place

the mouse point on the column whose name is to be changed and right click the

mouse to display the menu and select the corresponding name. At this time, when

there is no column name corresponding to the column to be imported, set the

column name in the comment column.

The following figure shows the import completed screen.

9-10

Step Programming

9-11

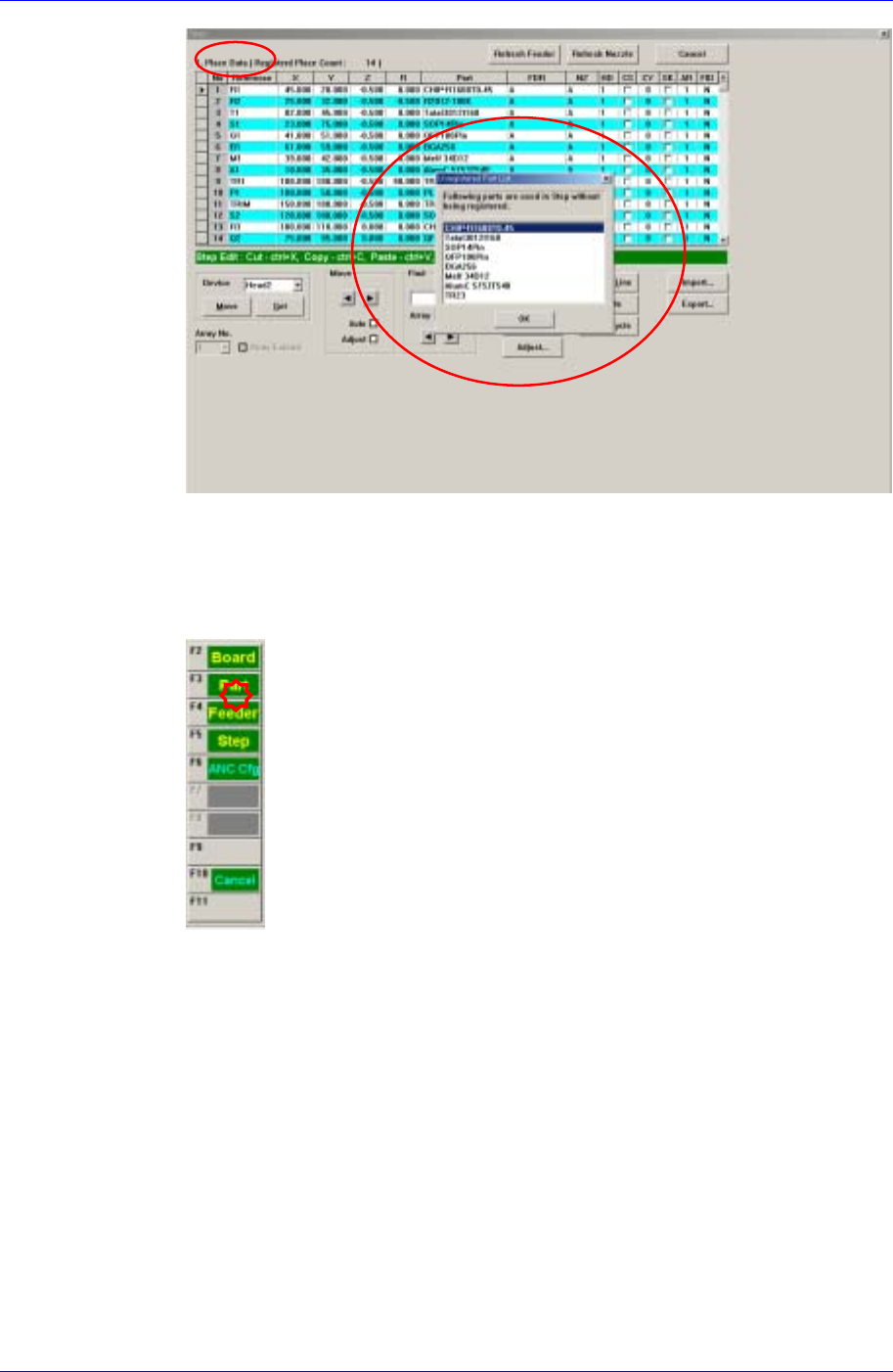

When the component imported from the CAD data is not registered, the

unregistered component must be registered.



As for the component displayed in the Unregistered Part List containing the

component information being used in the Place Data, which is not registered in

the machine database, register it to the PCB Part List.
