Structure of MMI Menu
Chapter 2. Structure of MMI Menu
2-1
The menu structure and the functions of each command of MMI(Man-Machine Interface),
which serves as the application program for the operation of this machine, are briefly
explained in this chapter. For detailed information on each menu, please refer to “Chapter
11. PCB Edit Menu” ~ “Chapter 12. Production Menu”.
2.1. Man-Machine Interface (MMI)
2.1.1. Menu tree
New
Open
Save
Save As
Merge Part Library
Exit
File
Manual Tool
Current Positon
System Error Message
Dump Information (Place Error)
Toolbar Position
Mark3 TSG
View
About CP45FV...
Help
Main Menu
Board
Part
Feeder
Step
ANC Cfg
Cycle
Opti
Cancel
PCB Edit
Start
Stop
Cont.
Finish
T/F Cnt
PCB D/L
Plc. Info
Sts. Info
Production
Print
Pd. Info
Copy..
File Man
Bypass
Warmup
Utility
I/O
Conveyor
Light
Vacuum
Jogbox
Tray
Diagnosis
Head
Limit
Position
Mount Offset
Origin
Dump
Tray
Camera
Pref.
Device
Sys. Setup
ANC
Menu Toolbar
CP45FV MMI
Version 2.450

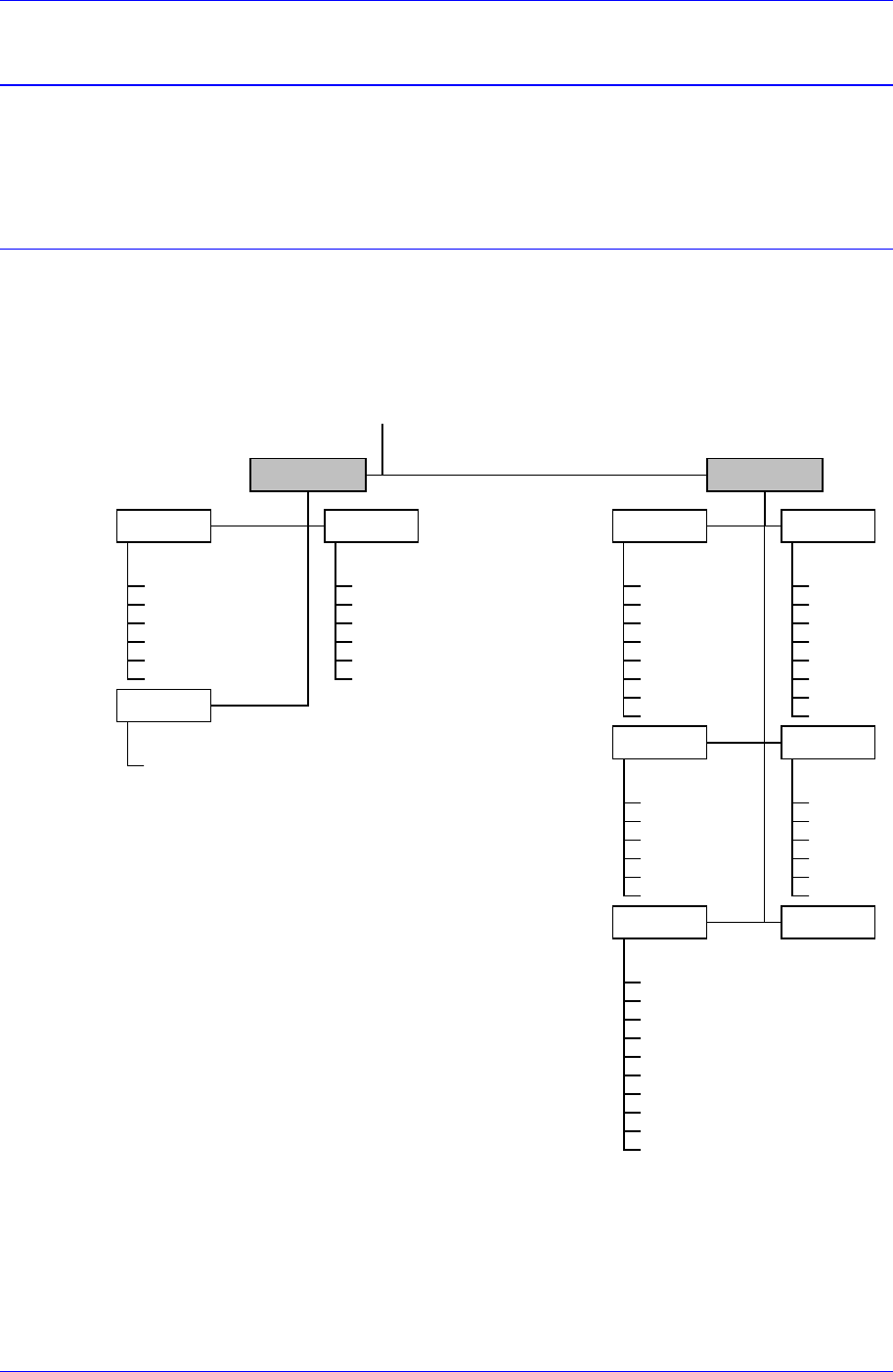

Figure 2-1. Menu Tree of MMI
Samsung Component Placer CP45FV Series Administrator’s Guide
2.1.2. Summary of functions
This section includes information on all the menus that are displayed on the MMI main
screen.
2.1.2.1. Main menu submenus
2.1.2.1.1. File command submenus
New
Used to create a new PCB file.
Open
Used to edit an existing PCB file.
Save
Used to save an opened file.
Save As
Used to save an opened file under a different name.
Merge Part Library
Use it to compare the Part Library of another machine with that of current machine
and merge.
Recent File
Displays a list of files worked on recently.
Exit
Ends MMI session and goes back to Windows or terminates the operation of the
machine.
2.1.2.1.2. View command submenus
Manual Tool
Enables manual operation of machine.
Current position
Displays the current position and nozzle name of each axis in real time.
System Error Message
Checks the error message window, which is displayed when there is an machine error.
Dump Information (Place Error)
Displays the status of dumped parts during machine operation.
Tool bar Position
Sets the position of Menu Tool bar on the screen.
Mark3 TSG
Shows the error occurred during machine operation.
2.1.2.1.3. Help command submenus
About CP45FV
Displays the machine's application program's current version and miscellaneous
2-2
