Samsung Component Placer CP45FV Series Administrator ’ s Guide data. <Move…> button    Performs component pickups or moves to the stage camera. Please refer to “ 7.2.1.1 Common Align Data ( Page 7-9 )” for more …

Part Registration

7-21

7.2.5. Trimmer component data setting

Set align data for Trimmer components.

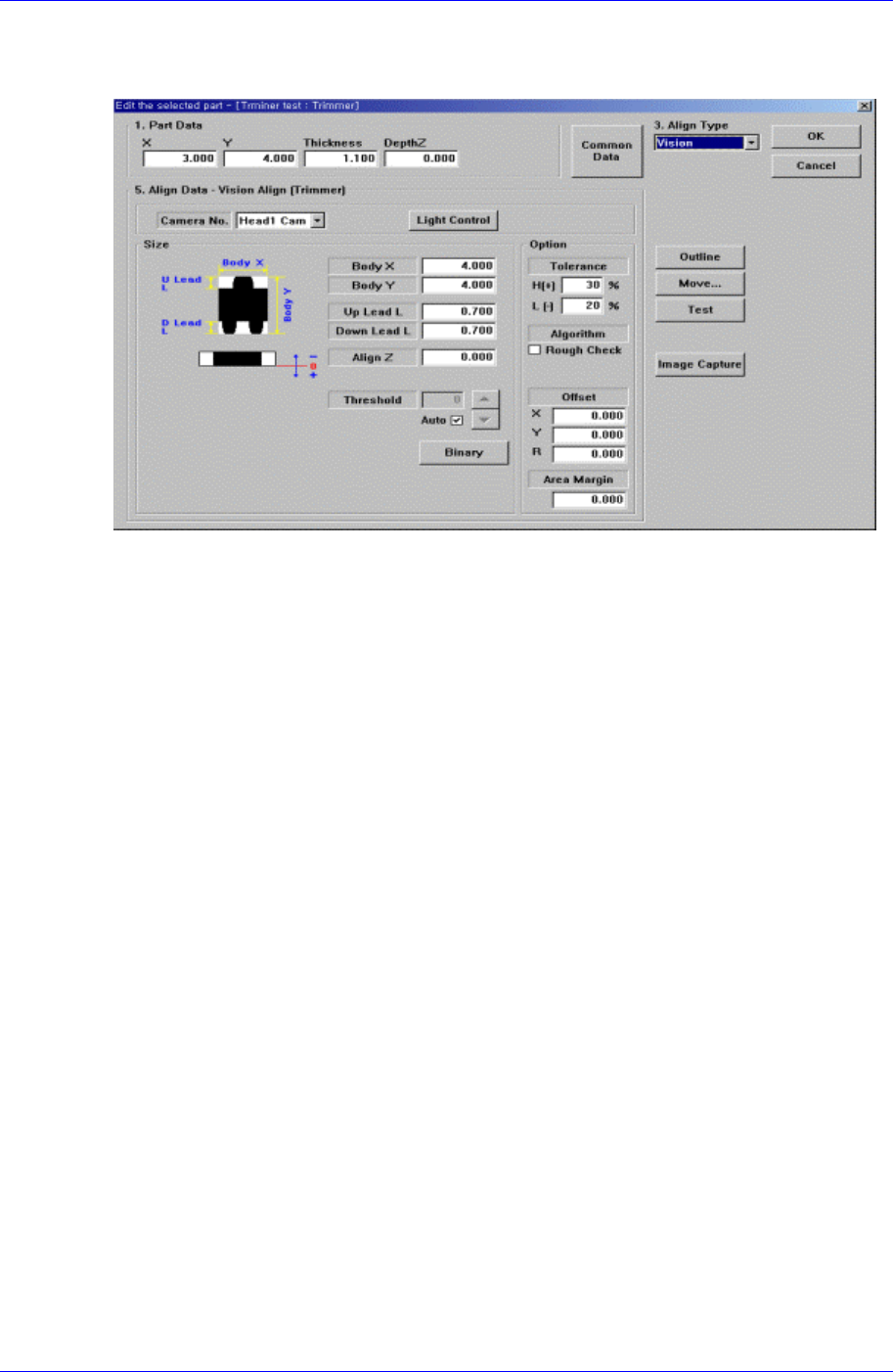

Figure 7-14. “Align Type = Vision, Package Group = Trimmer” dialog box











<Camera No.> combo box

Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align

Data (Page 7-9)” for more information.

<Light Control> button

Set the light for the camera to recognize the component. Please refer to “7.2.1.1

Common Align Data (Page 7-9)” for more information.

<Size> group

Set the align size

<Body X> edit box

Set the component size in X direction.

<Body Y> edit box

Set the component size in Y direction.

<Up Lead L> edit box

Set the length of the upper lead in Y direction.

<Down Lead L> edit box

Set the length of the lower lead in Y direction.

Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.

<Option> group

Set the align option data.

<Algorithm Rough Check> check box

Check it to recognize roughly for component recognition.

Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.

<Outline> button

Displays the outline of the component on the vision monitor by using the set align

Samsung Component Placer CP45FV Series Administrator’s Guide

data.

<Move…> button 



Performs component pickups or moves to the stage camera. Please refer to “7.2.1.1

Common Align Data (Page 7-9)” for more information.

<Test> button

Tests component recognition by using the set align data. Please refer to “7.2.1.1

Common Align Data (Page 7-9)” for more information.

<Image Capture> button

Helps to specify the optimum lighting value. The lighting is gradually changed

automatically and the images are saved. The user can check the best image and

identify the optimum lighting value.

Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.

7.2.6. Hemt component data setting

Set the align data for Hemt components.

Please refer to “Setting User IC component data”.

7.3. IC component data setting

7.3.1. SOP component data setting

Set the align data for SOP components.

Figure 7-15. “Align Type = Vision, Package Group = SOP” dialog box

<Camera No.> combo box 



Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align

Data (Page 7-9)” for more information.

<Light Control> button

Select the light for the camera to recognize the component. Please refer to “7.2.1.1

Common Align Data (Page 7-9)” for more information.

7-22

Part Registration

7-23







<Size> group

Set the align size.

<Total Y> edit box

Displays the size of the whole component in Y direction. It is calculated and

displayed when <Body Y> and <Lead Length> are determined. ( <Body Y> +

<Lead Length> * 2)

<Outline> button

Displays the outline of the component by using the set align data.

<Move…> button

Performs component pickups or moves to the stage camera.

Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.

<Test> button 



Tests component recognition by using the set align data. Please refer to “7.2.1.1

Common Align Data (Page 7-9)” for more information.

<Image Capture> button

Helps to specify the optimum lighting value. The lighting is gradually changed

automatically and the images are saved. The user can check the best image and

identify the optimum lighting value.

Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.

7.3.1.1. Common Align Data

The following items are common to IC component.

<Lead Num> edit box
