Samsung Component Placer CP45FV Series Administrator ’ s Guide cau Do not use the embedded PC(HDD) fo r personal usage. It could cause serious troubles. As high voltage flows in side the cove r and in the area near the s…
Preface
iii
Safety Precaution
Following labels described in each section are attached on specific position of this
machine. Follow the instructions on each label for operating this machine safely. If a label
has come off or has damaged, put a new one on a proper position referring to the
following figures. For ordering a new label or offering any comment, questions, please
contact to the business department or the local agent designated by Samsung Techwin Co.,
Ltd.
Front View of the Machine
The following labels are attached on the front part of this machine.
Figure 0-1. Safety labels attached on the front part of the machine
Do not dismantle the head area. It could cause
a serious damage to the head area.
Do not put a hand in during operation.
Part where this label is attached contains
moving parts, it is very dangerous if the use
r
disassembles any part or open the cover when
the moving part is maneuvering.
Stop the machine before servicing.
Stop the machine before repair or maintenance
or error troubleshooting.
Samsung Component Placer CP45FV Series Administrator’s Guide
cau

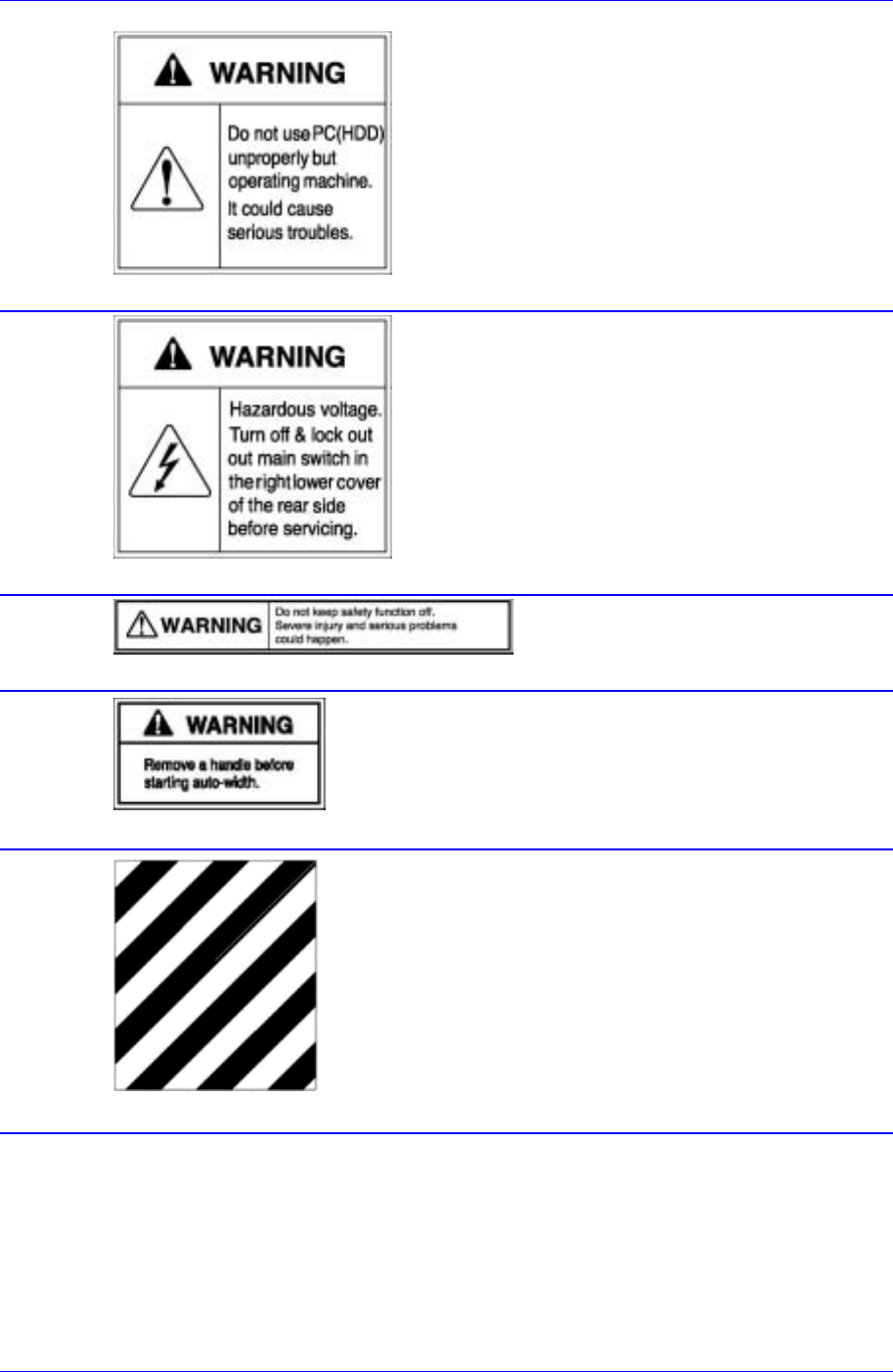

Do not use the embedded PC(HDD) for
personal usage.
It could cause serious troubles.
As high voltage flows inside the cover
and in the area near the switch, take
precautions against electric shock. Be
sure to turn off the main switch in the
right lower cover of the rear side before
maintenance or repair.
Remove the handler before automatic
operation.
Caution: Safety Colors and Contrast Colors
Combination of Safety yellow and black may be
used to indicate temporary or permanent ris
k
locations. – locations where there is moving
part(Conveyor).
Do not remove the safety device. It could
se personal injuries or serious
problems.
iv
Preface
v
Rear View of the Machine
The following labels are attached on the rear part of this machine.
Figure 0-2. Safety labels attached on the rear part of the machine
Do not put a hand in during operation.
Part where this label is attached contains
moving parts, it is very dangerous if the use
r
disassembles any part or open the cover when
the moving part is maneuvering.
Stop the machine before servicing.
Stop the machine before repair or maintenance
or error troubleshooting.
If the cover is removed from the area
where this label is attached, it could
result in an electric shock.
When it is necessary to remove the
cover for repair or maintenance, turn of
f
the main switch in the left lower cover of
the rear side, wait a little while, and
remove the cover.
