Part Registration 7-31 7.3.5. QFP component data setting Set the align data for QFP components. Figur e 7-21. “ Align T ype = V ision, Package Gr oup = QFP ” dialog box <Camera No.> combo box Select…
Samsung Component Placer CP45FV Series Administrator’s Guide
Common Align Data (Page 7-9)” for more information.
<Size> group
Set the align size.
<Total X> edit box
Set the size of the whole component in X.
Please refer to “7.3.1.1 Common Align Data(Page 7-23)” for more information.
<Option> group
Set the align option data. Please refer to “7.3.1.1 Common Align Data(Page 7-23)”
for more information.
<Outline> button
Displays the outline of the component on the vision monitor by using the set align
data.
<Move…> button
Performs component pickups or moves to the fix camera. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Test> button
Tests component recognition by using the set align data. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Auto Teach> button
Finds out the component align data automatically. Please refer to “7.3.1.1 Common
Align Data(Page 7-23)” for more information.
<Image Capture> button
Helps to specify the optimum lighting value. The lighting is gradually changed
automatically and the images are saved. The user can check the best image and
identify the optimum lighting value.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
7-30
Part Registration
7-31
7.3.5. QFP component data setting
Set the align data for QFP components.

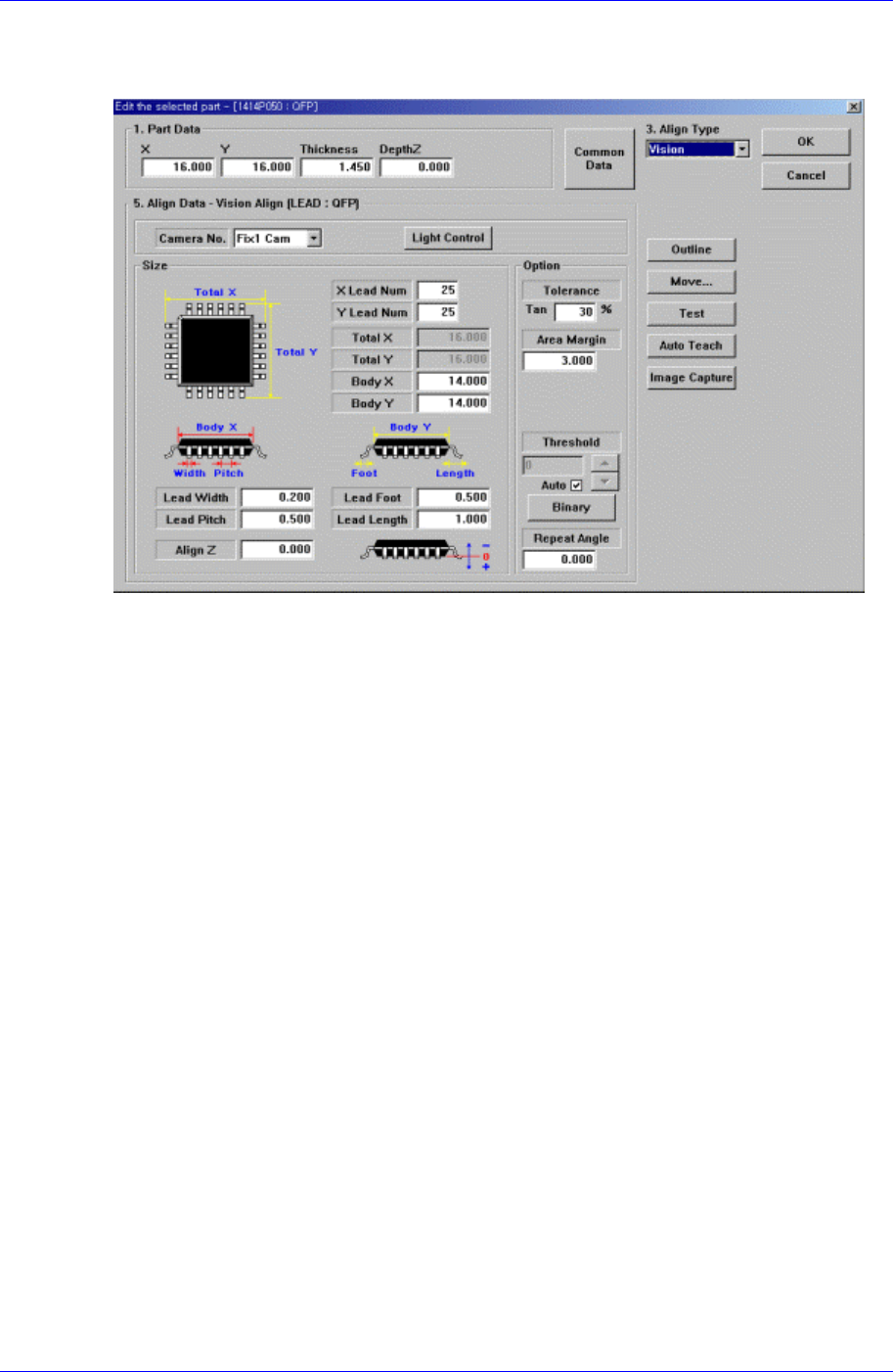

Figure 7-21. “Align Type = Vision, Package Group = QFP” dialog box
<Camera No.> combo box
Select the camera to recognize the component. Please refer to “7.2.1.1 Common Align
Data (Page 7-9)” for more information.
<Light Control> button
Set the light for the camera to recognize the component. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Size> group
Set the align size.
<X Lead Num> edit box
Set the number of leads in X direction.
<Y Lead Num> edit box
Set the number of leads in Y direction
<Total X> edit box
Displays the size of the whole component in X direction. When the <Body X>
and <Lead Length> are determined, it is calculated and displayed. ( <Body X> +
<Lead Length> * 2 )
<Total Y> edit box
Displays the size of the whole component in Y direction. When <Body Y> and
<Lead Length> are determined, it is calculated and displayed. ( <Body Y> +
<Lead Length> * 2 )
Please refer to “7.3.1.1 Common Align Data(Page 7-23)” for more information.
<Option> group
Set the align option data. Please refer to “7.3.1.1 Common Align Data(Page 7-23)”
Samsung Component Placer CP45FV Series Administrator’s Guide
for more information.
<Outline> button
Displays the outline of the component on the vision monitor by using the set align
data.
<Move…> button
Performs component pickups or moves to the stage camera. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Test> button
Tests component recognition by using the set align data. Please refer to “7.2.1.1
Common Align Data (Page 7-9)” for more information.
<Auto Teach> button
Finds out the component align data automatically. Please refer to “7.3.1.1 Common
Align Data(Page 7-23)” for more information.
<Image Capture> button
Helps to specify the optimum lighting value. The lighting is gradually changed
automatically and the images are saved. The user can check the best image and
identify the optimum lighting value.
Please refer to “7.2.1.1 Common Align Data (Page 7-9)” for more information.
7.3.6. PLCC component data setting
Set the align data for PLCC components. Please refer to “7.3.5 QFP component data
setting”.
7.3.7. Connector-1 component data setting
Set the align data for Connector-1 components.
Please refer to “7.4 User IC component data setting”.
7.3.8. Connector-2 component data setting
Set the align data for Connector-2 components.
Please refer to “7.4 User IC component data setting”.
