NPM-W2 EJM7DE-MB-03T-00
Recog-
nition
error
message
Troubleshooting
3-2-1
3-2-1-3
Code Description Cause Solution
11
12
13
Shape data combination error
Non-recognition-capable component
shape
Specified recognition parameter error
1) An error occurs in the shape
data combination of
recognition data.
e.g., more than the prescribed
number of recorded data
selections, with several
electrodes placed at the same
location
2) A shape or a combination of
shapes that the recognition
processing cannot handle is
selected.
3) Recognition data parameter
has an error.
Check the created
recognition data again
Check the size, position and
registration of the recognition
data again
14
No component pickup 1) A component is not picked up. Check the pickup condition
Check the component
package condition and pickup
position.
15
16
17
18
19
Recognition target undetected
Shape error of the recognition target
Recognition target out of area
Image detecting reference position
error
Error in setting conditions for target
detecting image
<Example of an image>
1) Light error, setting value
error
2) Recognition data setting error
3) Pickup error
(The entire target component
does not fit into screen)
Check the screen on the
production data teaching for
recognition.
・A component is focused on
the center of the screen.
・(Transparency recognition)
Check whether the
background (=reflection
board) looks white evenly.
・(Reflection recognition)
Check whether electrodes
glow white.
Check the component data
・L(X-direction in length),
W(Y-direction in width)
・Each shape data position/
size
Check the pickup condition.
20
Recognition target feature detection
error
<Example of an image>
1) Pickup error, pickup condition
error
2) Light setting value error
Check the pickup condition
Check the screen when
recognition is performed with
the production data teaching.
Parameter / Recognition coarse detection processing error
Parameter/ recognition coarse detection processing errors
Shadow
■
Recognition error
message lists 2
NPM-W2 EJM7DE-MB-03T-00
Actual chip

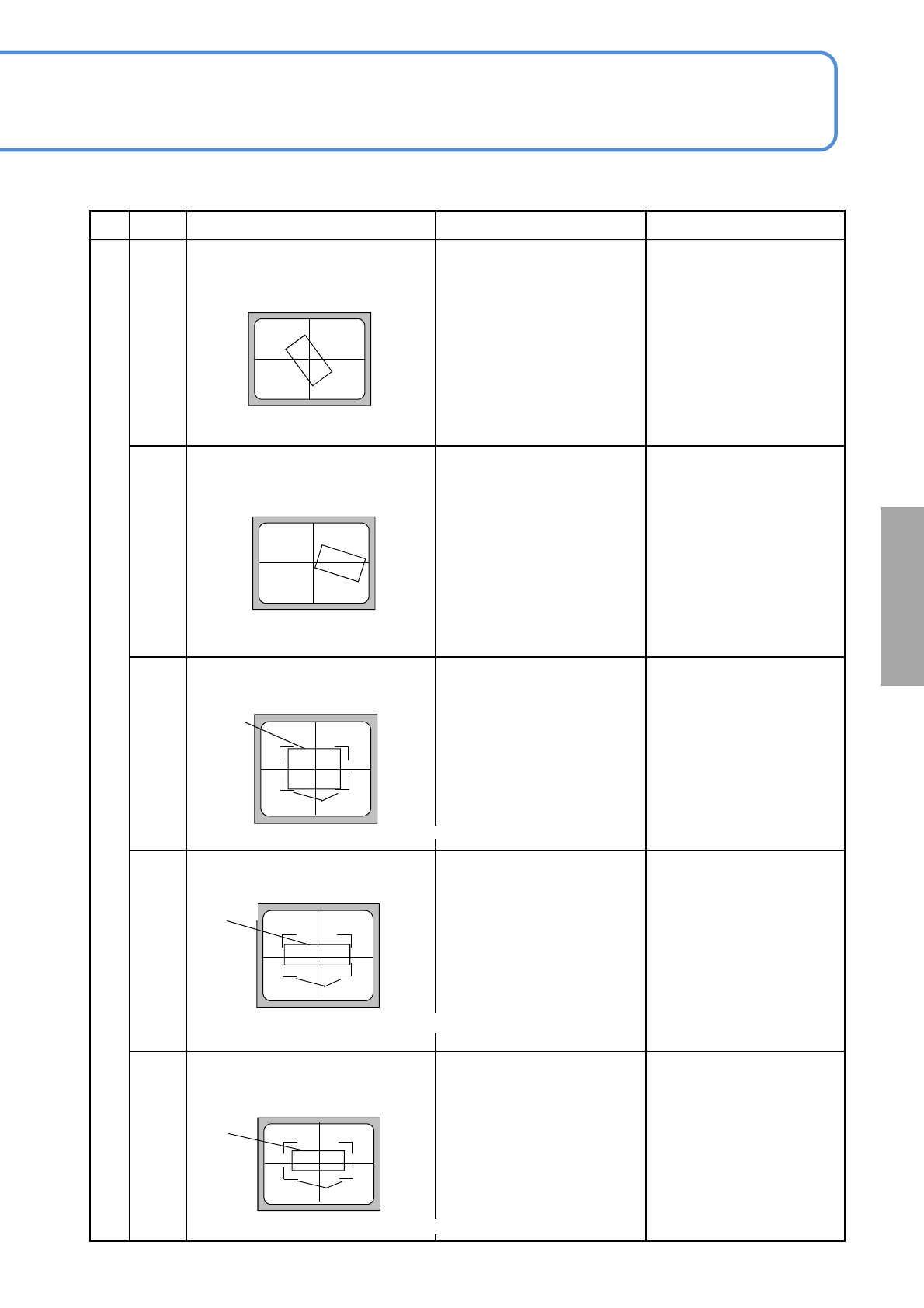

3-2-1-4
Code Description Cause Solution
21
Component recognition angle error
<Example of an image>
1) Unacceptable recognition
angle
Check for the component
height, pickup position, pickup
offset and nozzle of use to
stabilize the pickup state.
Check the supply angle.
22
Component recognition angle error
<Example of an image>
1) Unacceptable recognition
result position
Check for the component
height, pickup position, pickup
offset and nozzle of use to
stabilize the pickup state.
Check the component supply
position.
25
Size L-direction measurement result
error
<Example of an image>
1) Error in setting component
size L (X-direction in length)
2) Wrong component
3) Component pickup condition
error
Recheck for the position and
size of component X-direction
shape data (component data).
Check the target component
Check the state of component
package and the pickup
position.
26
Size W-direction measurement result
error
<Example of an image>
1) Error in setting component
size W (Y-direction in width)
2) Wrong component
3) Component pickup condition
error
Recheck for the position and
size of component Y-direction
shape data (component data).
Check the target component
Check the component
package condition and pickup
position.
27
Size L- or W- direction measurement
result error
<Example of an image>
1) Error in setting component
size L- (X-)direction
2) Wrong component
3) Component pickup condition
error
Recheck for the position and
size of component X/Y-
direction shape data
(component data).
Check the target component
Check the component
package condition and pickup
position.
Recognition target detection result error
Recognition target detection result errors
Actual
component
Size of the component data
Actual
component
Size of the component data
Size of the component data
■
Solutions to
recognition
NPM-W2 EJM7DE-MB-03T-00
Recog-
nition
error
message
Troubleshooting
3-2-1

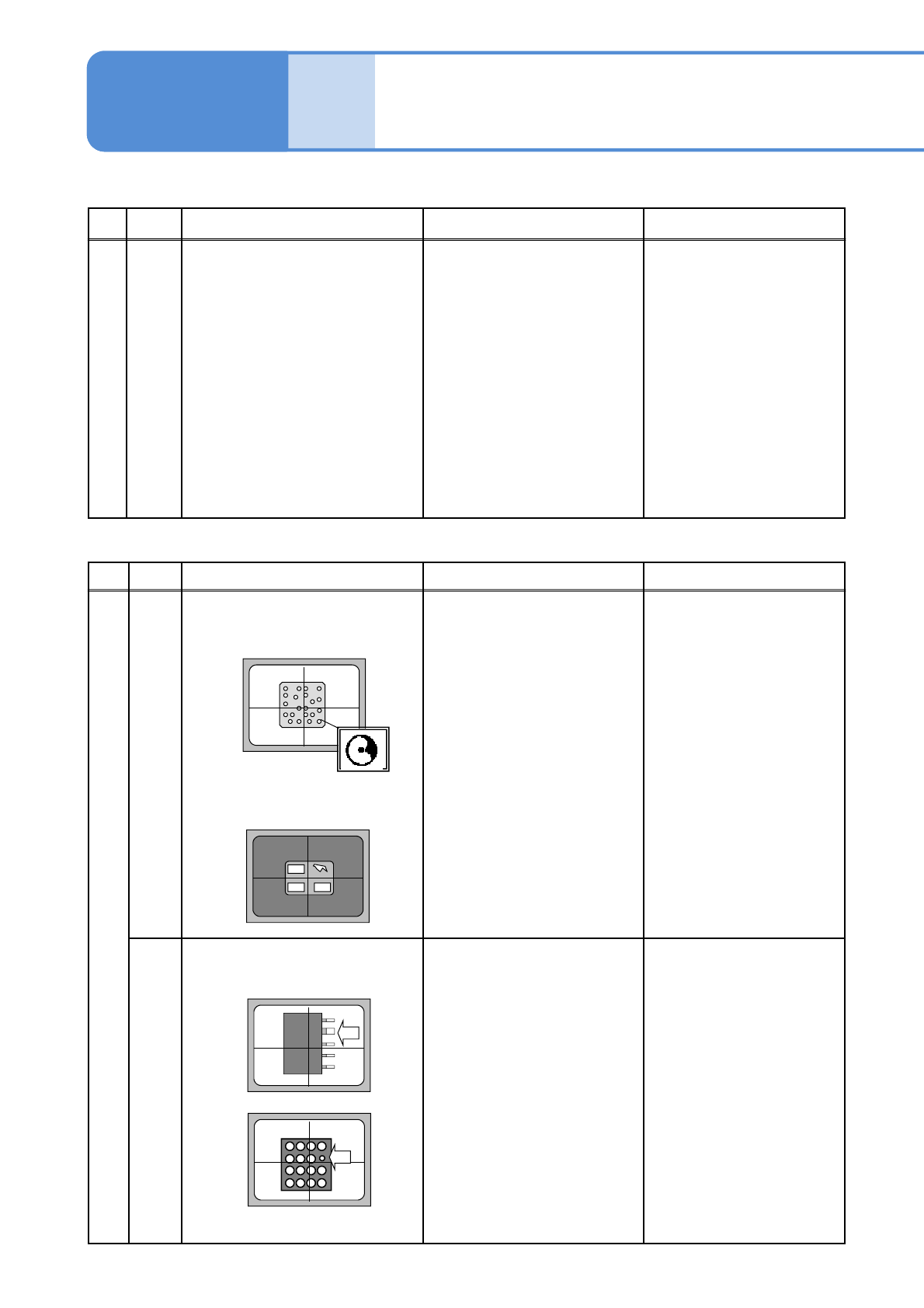

3-2-1-5
Recognition target detection result error
Code Description Cause Solution
28
29
30
Recognition target object perimeter
size error
Recognition target area error
Recognition target shape eigenvalue
error
1) Light value setting error
2) The shape is different from the
one for teaching
*This error does not occur for
component or mark recognition.
Check the image condition
and change the lamp setting.
Check the target shape.
If the shape is very different
from the one for teaching,
perform teaching again.
Code Description Cause Solution
31
Electrode shape error
<Example of an image>
Bump shape error
Electrode shape error
1) The Electrode shape is not
obtained properly.
e.g., bump crushing and
chipping of bump
component
lusterless bump
chipping at lead of lead
component
Check the target component
Check the electrode position
data (position, size and shape)
Adjust a degree of contrast
between the electrode and the
mold by using the lamp.
32
Electrode width error
<Example of an image>
1) A bump component, which has
an abnormal measurement
size (width) of the electrode
unit , is considered as a bump
size error.
Check the target component
Check the electrode position
data (position, size and shape)
Individual electrode shape /electrode state errors
Recognition target detection result errors Individual electrode shape/ electrode state errors
■
■
Recognition error
message lists 3
