NPM-W 2 EJM7DE-MB-04T-00 Load lists Motor list 1 Troubleshooting 4-2-1 Standard unit Unit name No. Name Location Remark Main body M501 X-axis motor Front M502 M506 Y -axis motor Front M503 X-axis motor Rear M504 M508 Y -…

100%1 / 338
NPM-W2 EJM7DE-MB-04T-00

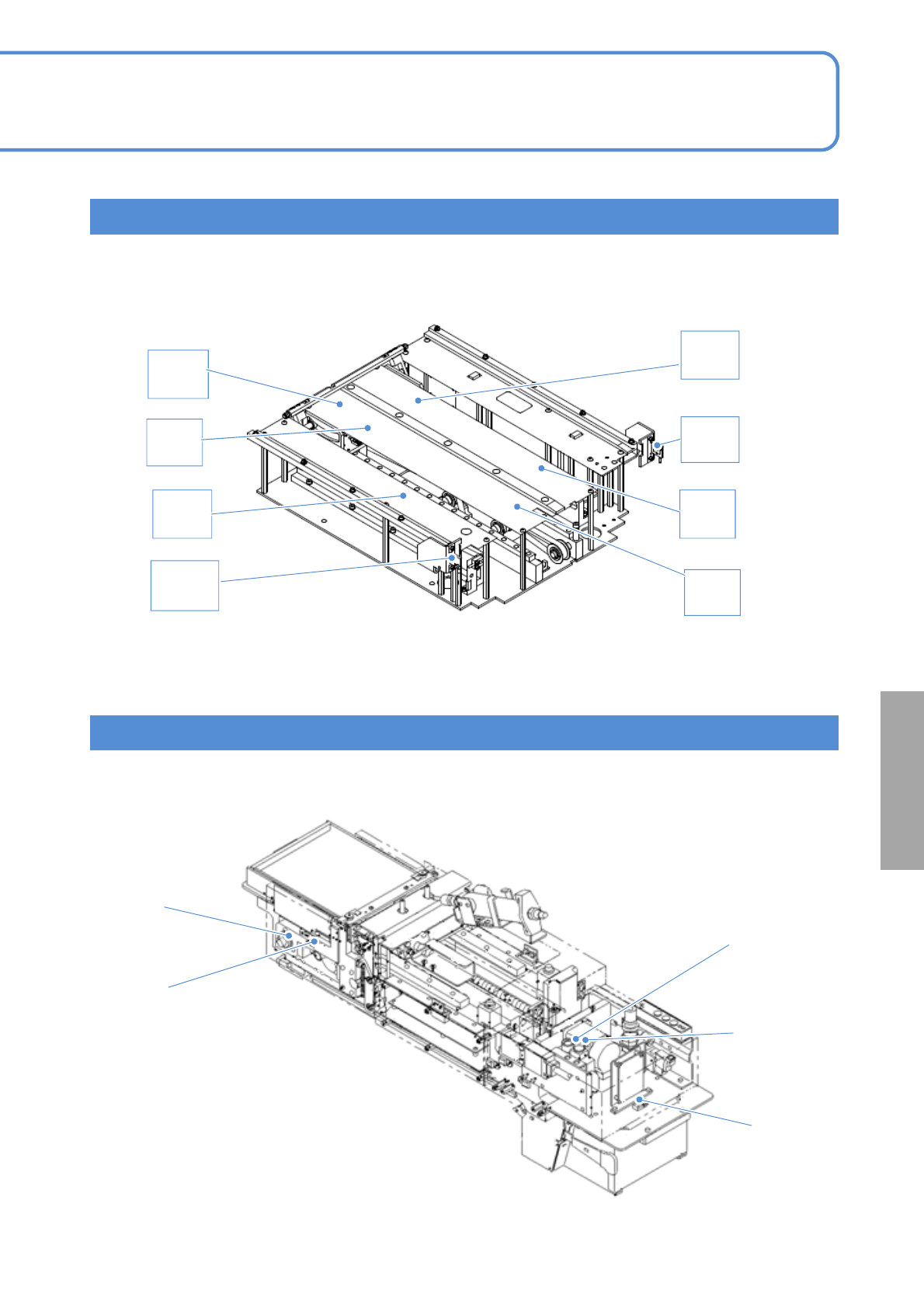

4-1-16
Twin tray feeder drawer
Multifunctional transfer unit
S301
B001
M402
R301
M401
B1302
B1602
M402
M404
B1332
B1632
B1333T
B1633T
B1331
B1631
B1333
B1633
B1330
B1630
B1303
B1603
Load arrangement
drawings
NPM-W2 EJM7DE-MB-04T-00
Load lists
Motor list 1
Troubleshooting
4-2-1
Standard unit
Unit name No. Name
Location Remark
Main body M501
X-axis motor
Front
M502
M506
Y-axis motor Front
M503
X-axis motor
Rear
M504
M508
Y-axis motor Rear
G103
Cooling fan
Front
G104
Cooling fan
Rear
G111 Machine inner cooling fan
G201 Vacuum pump Rear
Single conveyor
M601
Lane 1 Transfer motor Left waiting (Fixed
side)
M602
Lane 1 Transfer motor Placement position 2
(Fixed side)
M603
Lane 1 Transfer motor Placement position 1
(Fixed side)
M604
Lane 1 Transfer motor Right waiting (Fixed
side)
M605
Lane 1 Transfer motor Left waiting (Movable
side)
M606
Lane 1 Transfer motor Placement position 2
(Movable side)
M607
Lane 1 Transfer motor Placement position 1
(Movable side)
M608
Lane 1 Transfer motor Right waiting
(Movable side)
M609 Lane 1 Width-adjustment motor
Dual conveyor
M601
Lane 1 Transfer motor Left waiting (Fixed
side)
M602
Lane 1 Transfer motor Placement position 2
(Fixed side)
M603
Lane 1 Transfer motor Placement position 1
(Fixed side)
M604
Lane 1 Transfer motor Right waiting (Fixed
side)
M605
Lane 1 Transfer motor Left waiting (Movable
side)
M606
Lane 1 Transfer motor Placement position 2
(Movable side)
M607
Lane 1 Transfer motor Placement position 1
(Movable side)
M608
Lane 1 Transfer motor Right waiting
(Movable side)
M609 Lane 1 Width-adjustment motor
4-2-1-1
NPM-W2 EJM7DE-MB-04T-00
Unit name No. Name
Location Remark
Dual conveyor
M631
Lane 2 Transfer motor Left waiting (Fixed
side)
M632
Lane 2 Transfer motor Placement position 2
(Fixed side)
M633
Lane 2 Transfer motor Placement position 1
(Fixed side)
M634
Lane 2 Transfer motor Right waiting (Fixed
side)
M635
Lane 2 Transfer motor Left waiting (Movable
side)
M636
Lane 2 Transfer motor Placement position 2
(Movable side)
M637
Lane 2 Transfer motor Placement position 1
(Movable side)
M638
Lane 2 Transfer motor Right waiting
(Movable side)
M639 Lane 2 Width-adjustment motor
Load arrangement
drawings
4-2-1-2
